Figure 4
From: Divergent Effects of Nitrogen Addition on Soil Respiration in a Semiarid Grassland

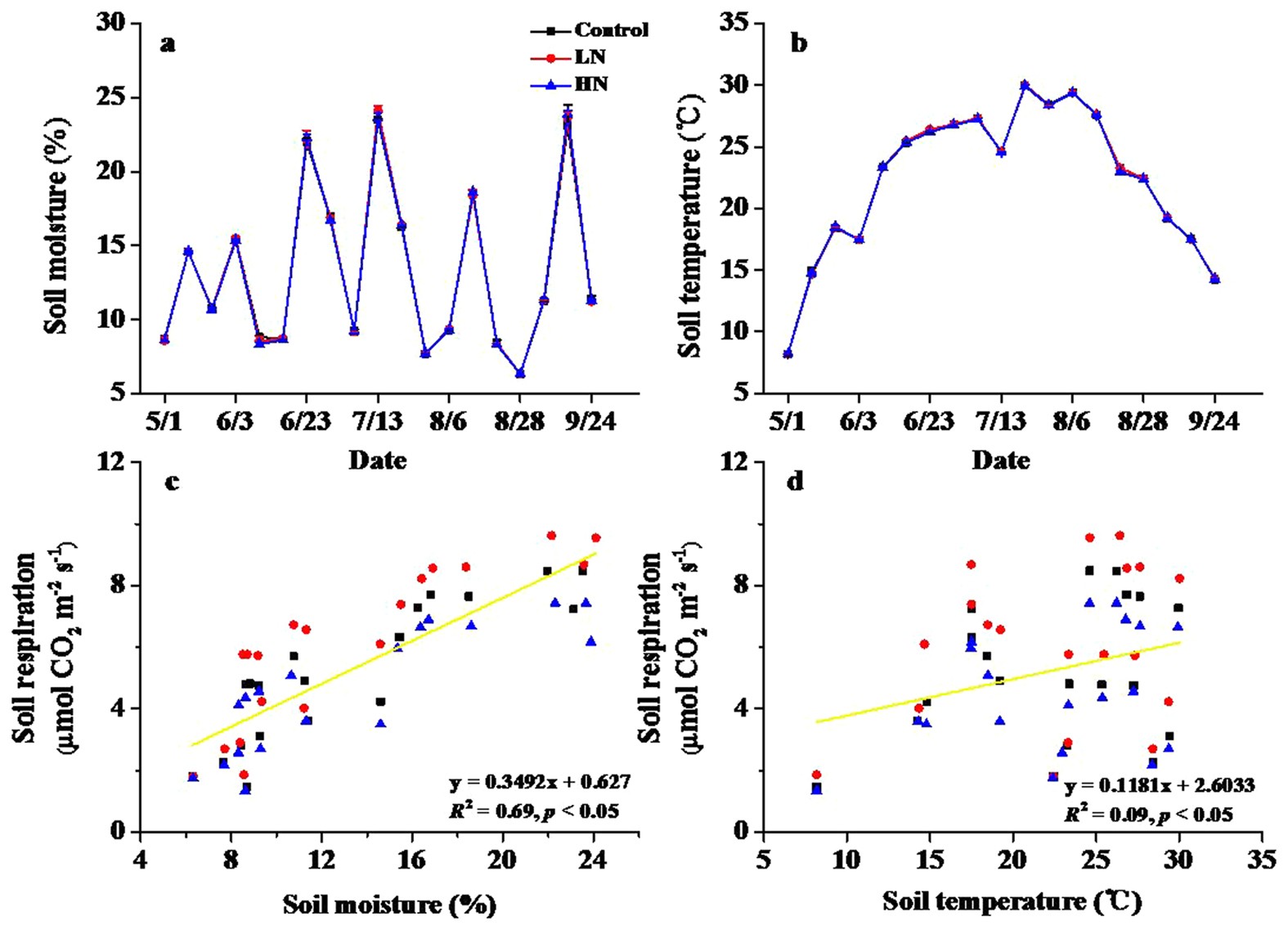

Seasonal dynamics of soil moisture, soil temperature, and their relationships with soil respiration.
Control = no N added, LN = low-level N addition, HN = high-level N addition. The results of analysis showed in c and d were based on linear regression.
