Figure 1

From: Superhydrophobic porous networks for enhanced droplet shedding

Figure 1The alternative text for this image may have been generated using AI.

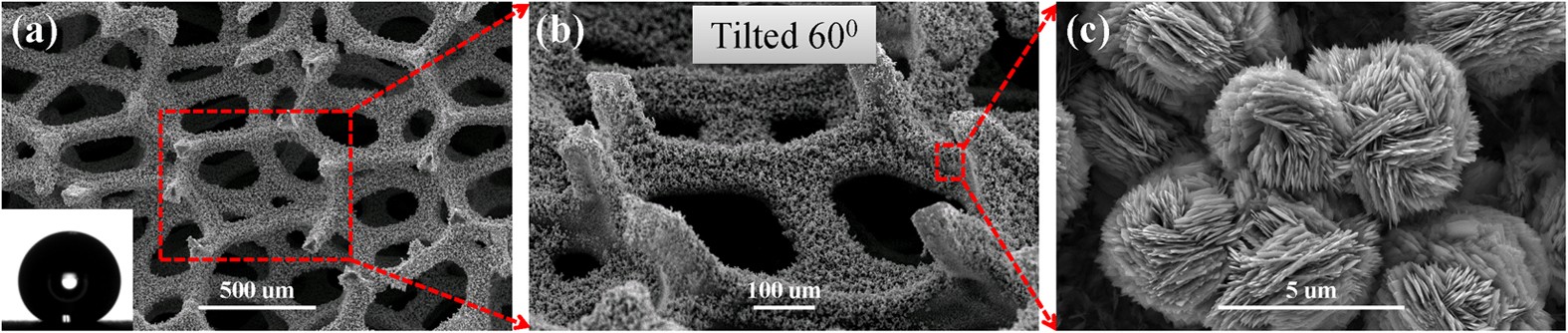

Scanning electron microscope (SEM) images of the hierarchical multilayered superhydrophobic (HMS) surface.

(a) SEM images with low amplification. The left inset shows the optical image of a water drop deposited on the HMS substrate. (b) 60° side-view of the HMS substrate. All the surfaces are uniformly coated by nanostructured flowers with an intrinsic contact angle more than 160°. (c) Nanoflowers are coated on the surface.
