Figure 2

From: Superhydrophobic porous networks for enhanced droplet shedding

Figure 2The alternative text for this image may have been generated using AI.

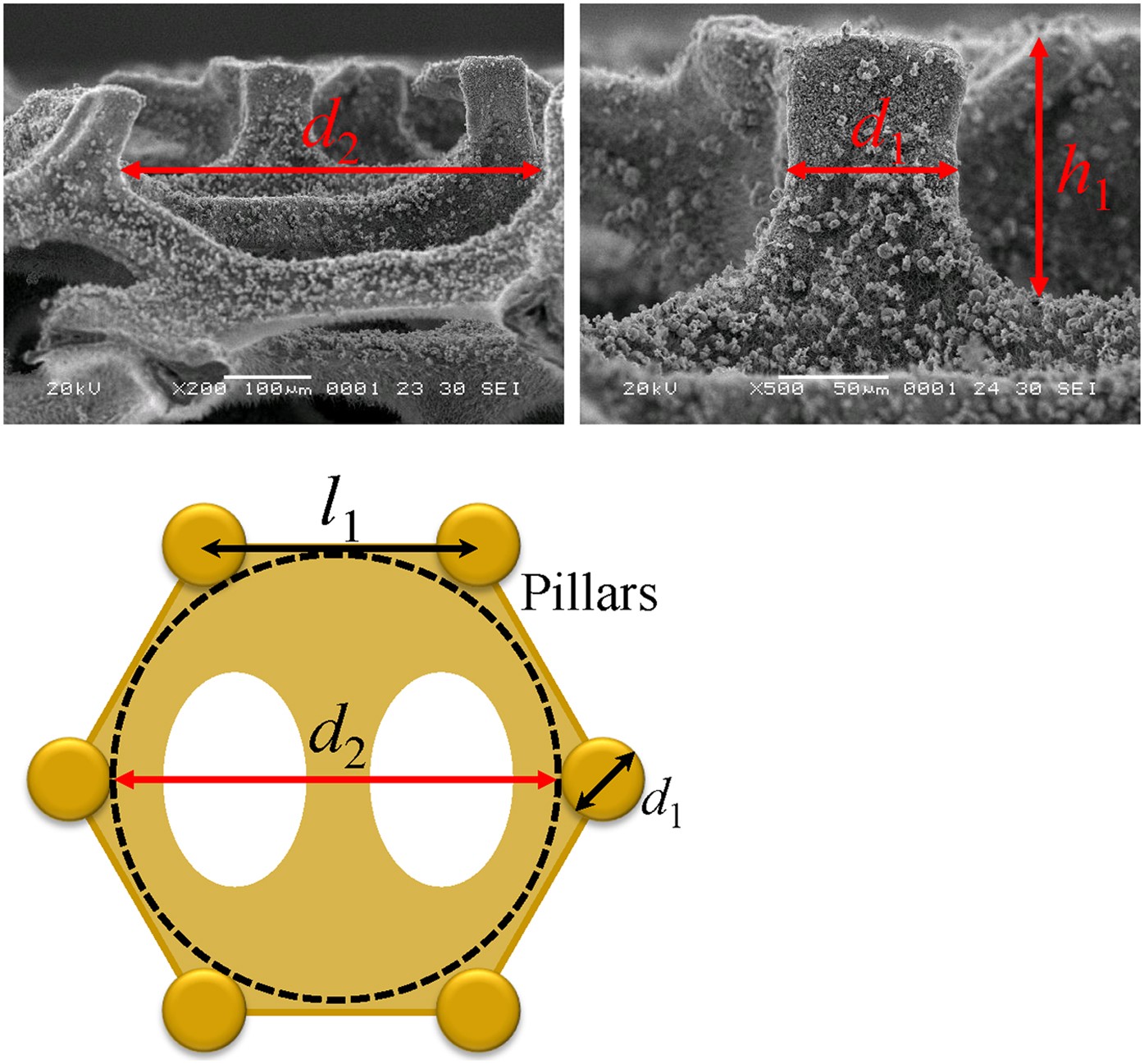

SEM images and schematic illustrations showing the structure of the surface.

The pillar diameter (d1), height (h1) and pillar-to-pillar spacing (l1) of the first layer are 80, 200 and 260 μm, respectively. The characteristic pore diameter (d2) in the porous media is ~450 μm.
