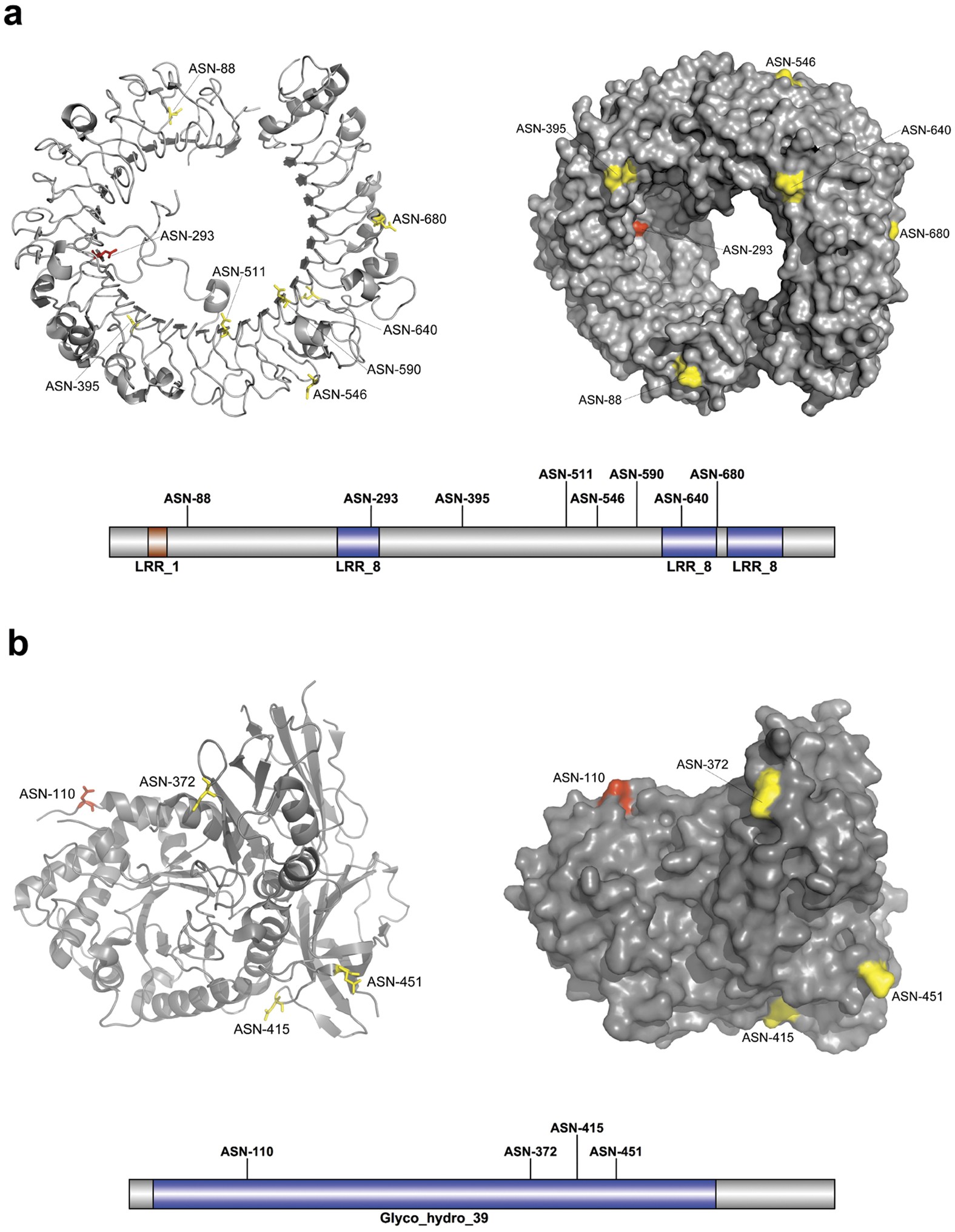

Predicted N-linked glycosylation sites from two case-study proteins using GlycoMinestruct.

(a) Toll-like receptor 8. (b) α-L-iduronidase. Predicted N-glycosylation sites from both GlycoMinestruct and NGlycoPred are colored in yellow, while the sites that were correctly predicted by GlycoMinestruct, but were not predicted by NGlycPred are coloured in red. The illustrations of Pfam domains and N-glycosylation sites of these two proteins shown at the bottom of each panel were rendered using the IBS program98.
