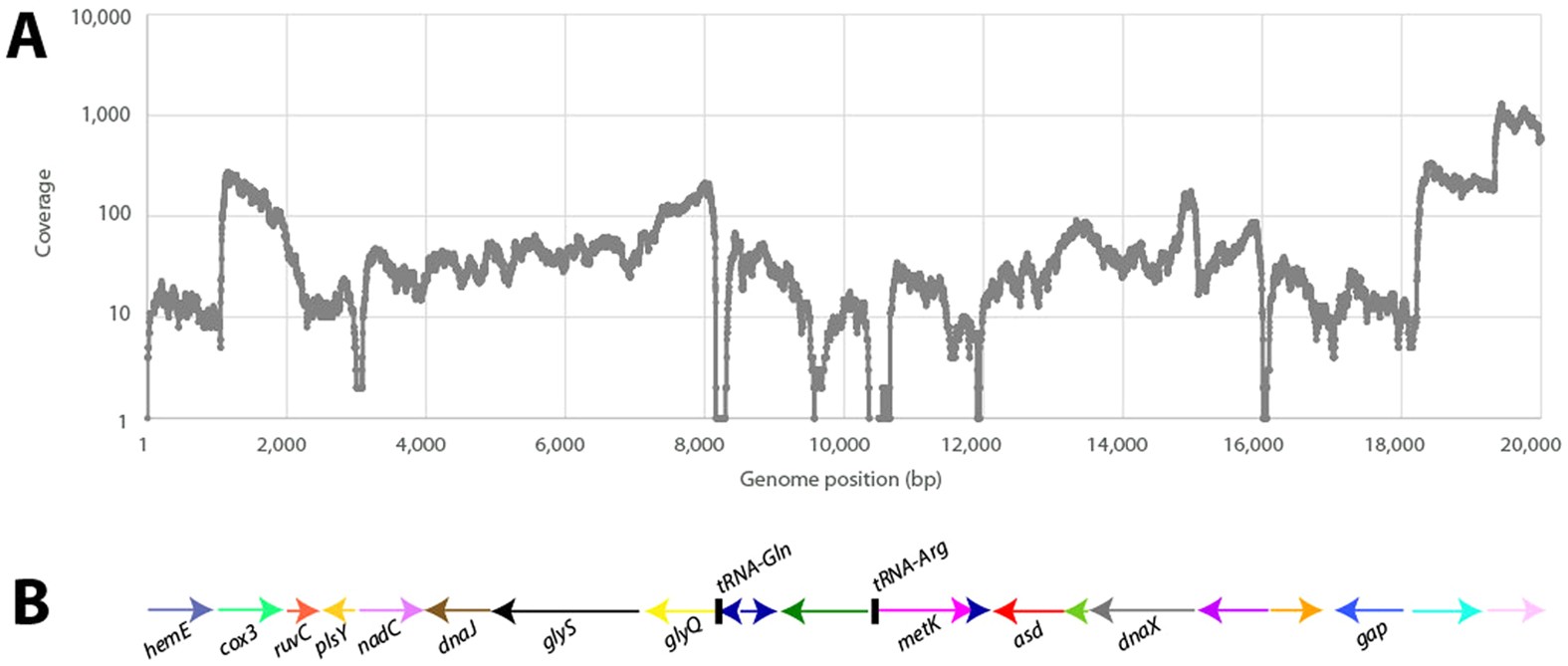

Figure 5

Ehrlichia transcriptome sequencing coverage across a genome segment.

The bacterial mRNA-enriched transcriptome sequencing coverage was plotted for the first 20 kbp of the Wakulla genome (Panel A) and compared to the predicted genes for this region (Panel B). While 99% of the genome is transcribed, troughs are apparent for tRNAs, which are too small to be recovered with the RNA isolation method used here. The coverage peaks at the 5′-end of transcripts and decays over the length of the transcript, as has been observed for other bacterial transcriptomes. Troughs are seen at transcriptional start sites, but not always at the 3′-ends of transcripts. This suggests that either the 3′-end of the transcripts overlap the ends of other transcripts, or that this strain lacks discrete transcription termination sites.
