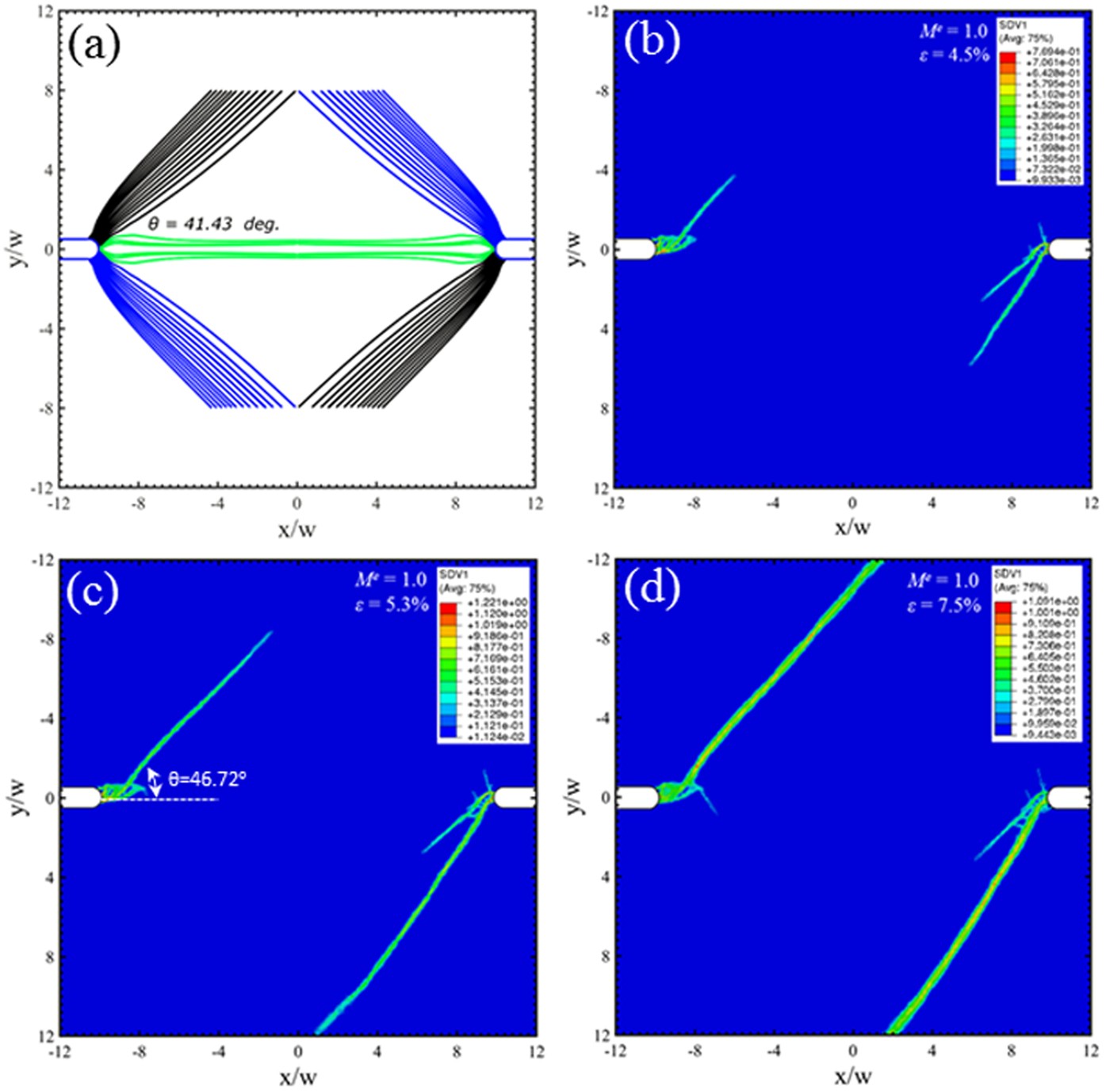

Figure 10

Predicted shear band configurations at M^e = 1.0, corresponding to the Mode-I tension.

Prediction from (a) the instability theory, and (b–d) the free-volume-based constitutive simulations at three different strain stages, which are marked as “M”, “N”, and “O” on Fig. 5.
