Figure 6

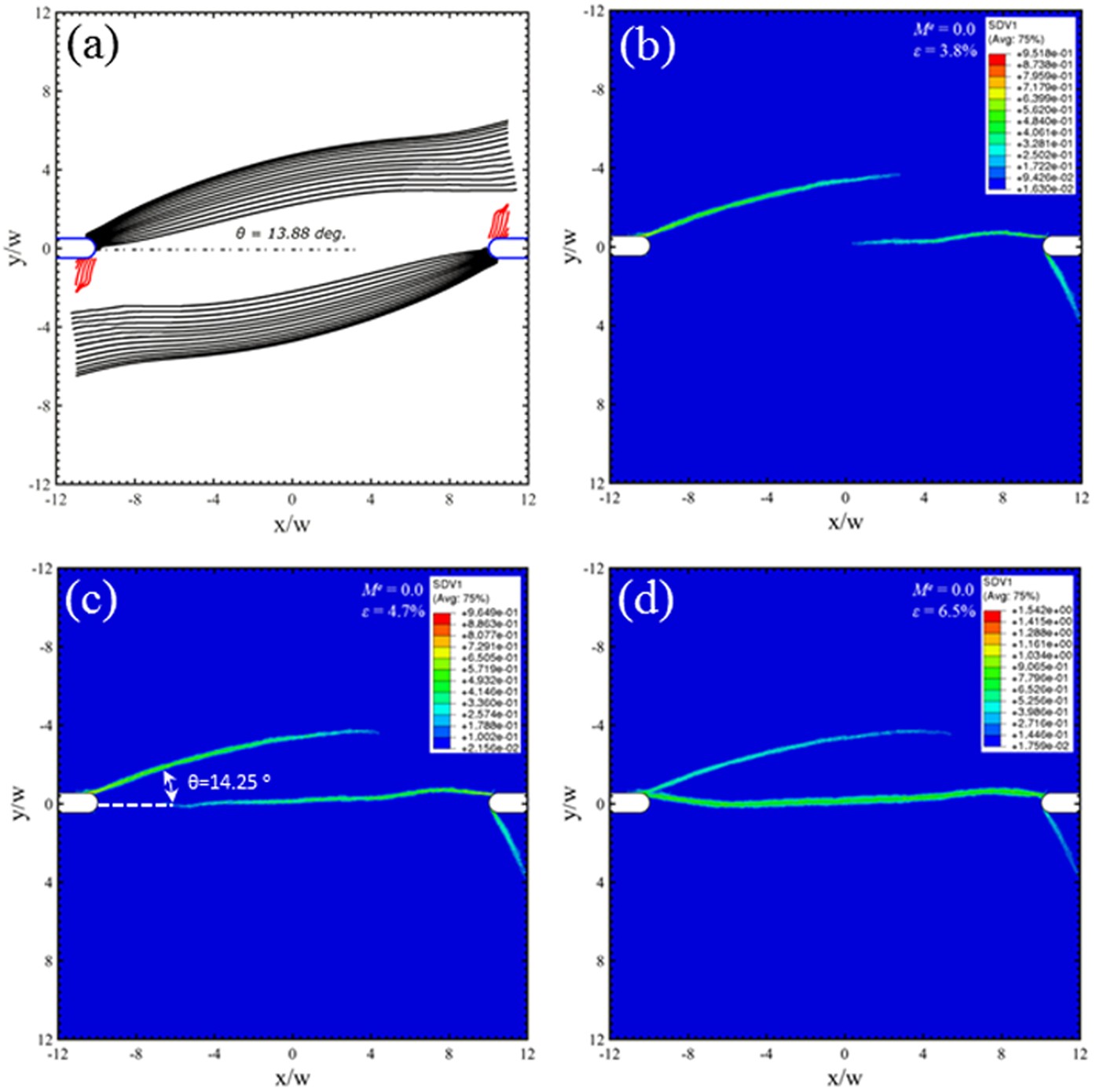

Predicted shear band configurations at M^e = 0, corresponding to the Mode-II shear.

Prediction from (a) the instability theory, and (b–d) the free-volume-based constitutive simulations at three different strain stages, which are marked as “A”, “B”, and “C” on Fig. 5.
