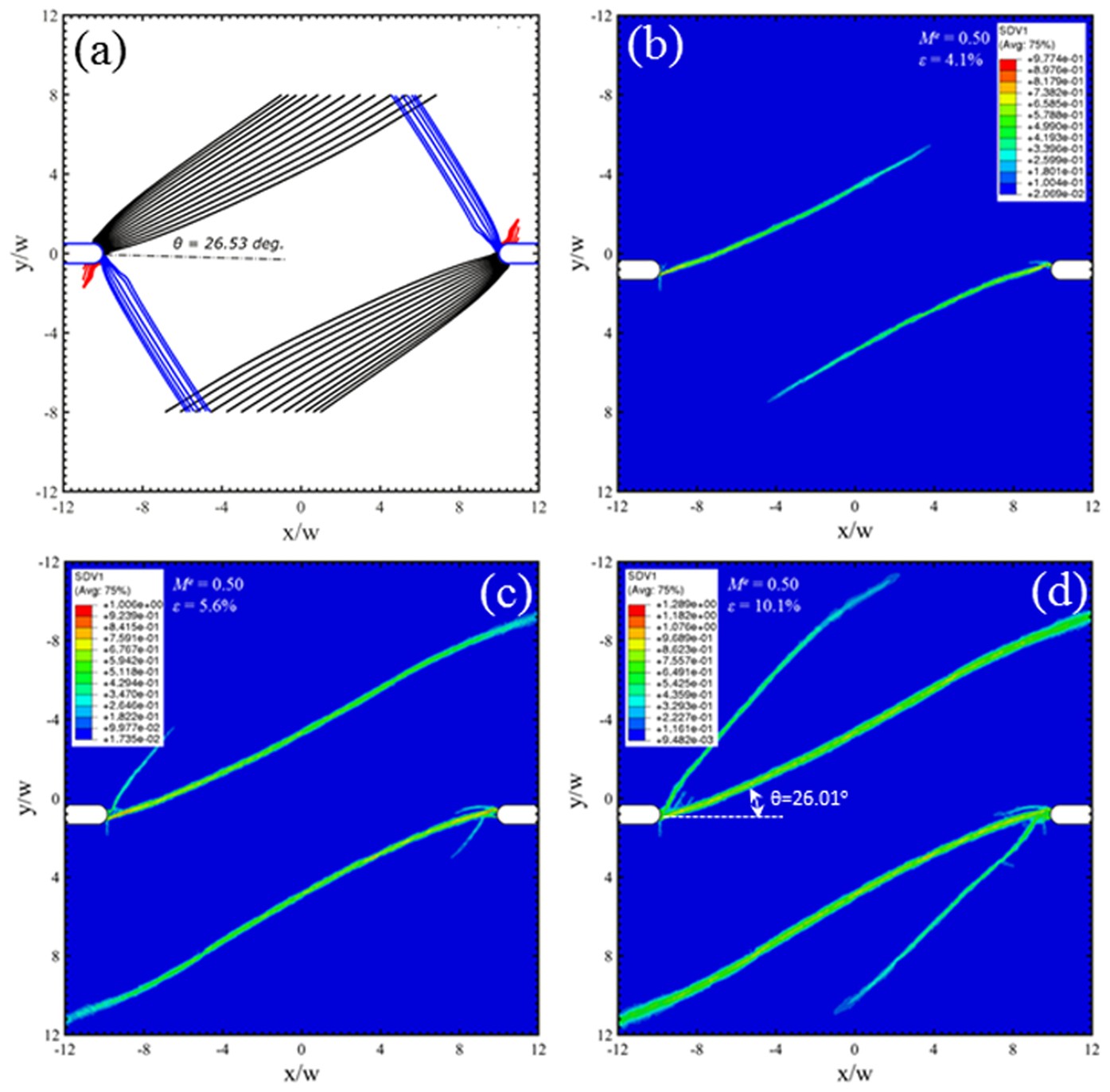

Figure 8
Predicted shear band configurations at Me = 0.5.
Prediction from (a) the instability theory, and (b–d) the free-volume-based constitutive simulations at three different strain stages, which are marked as “G”, “H”, and “I” on Fig. 5.
