Figure 9

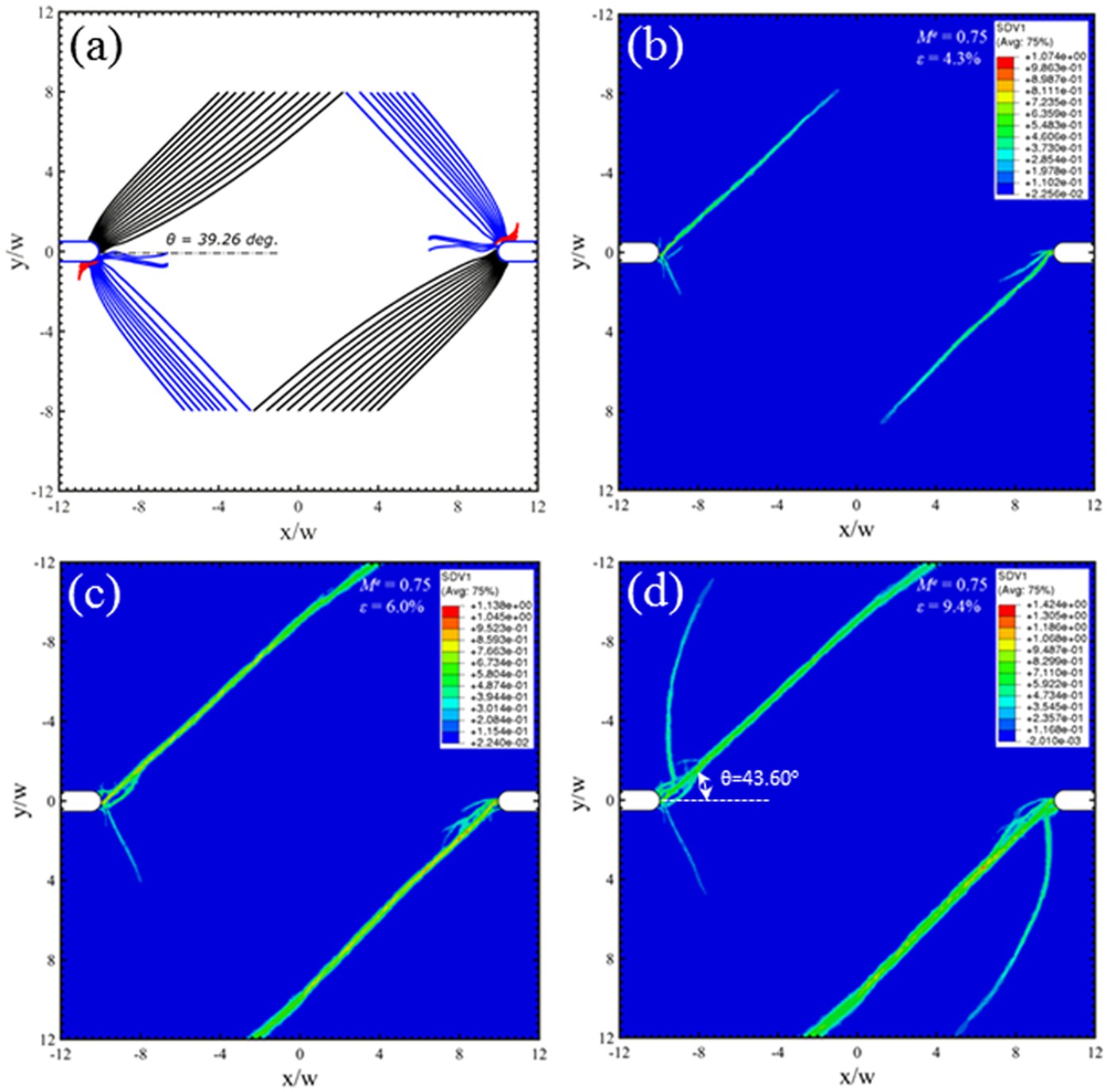

Predicted shear band configurations at Me = 0.75.
Prediction from (a) the instability theory, and (b–d) the free-volume-based constitutive simulations at three different strain stages, which are marked as “J”, “K”, and “L” on Fig. 5.
