Figure 2
From: Generation of transgenic marmosets expressing genetically encoded calcium indicators

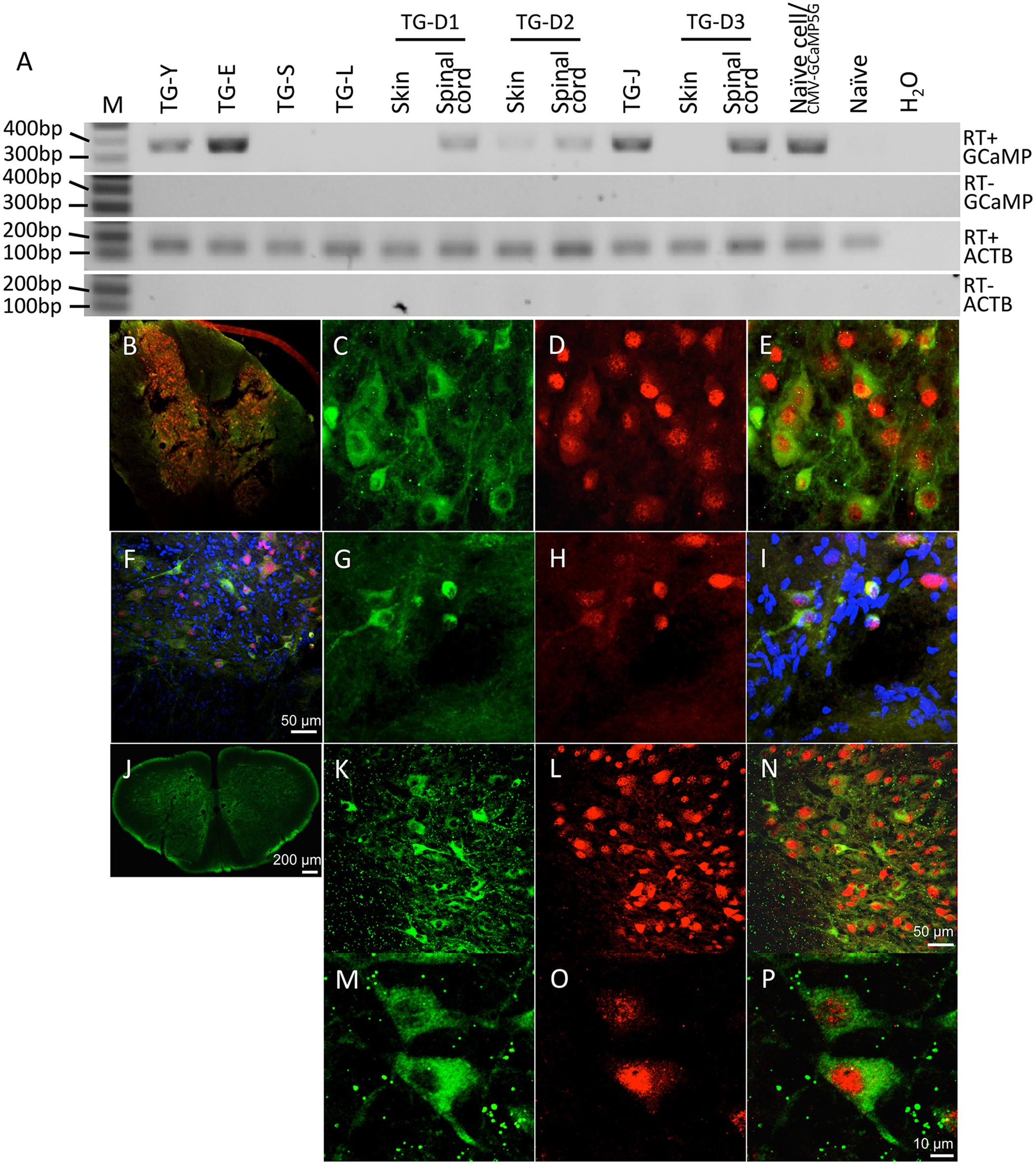

Expression patterns of GCaMP in transgenic marmosets.
(A) RT-PCR analysis from hair roots (TG-Y, E, L, S, and J), skin and spinal cord tissues (TG-D1, D2, and D3). M: DNA marker; Naïve/CMV-GCaMP5g: wild type marmoset fibroblasts infected with CMV-GCaMP5g; Naïve: wild type marmoset. (B–P) Cross-section samples of spinal cord tissue from TG-D1 (B–E), M03 (F–I), and TG-D3 (J–P) were immunostained against GCaMP and NeuN (red) or DAPI (blue), respectively. GCaMP is highly expressed in the neurons of gray matter in the spinal cord.
