From: Enhancement of anodic current attributed to oxygen evolution on α-Fe2O3 electrode by microwave oscillating electric field

Figure 2

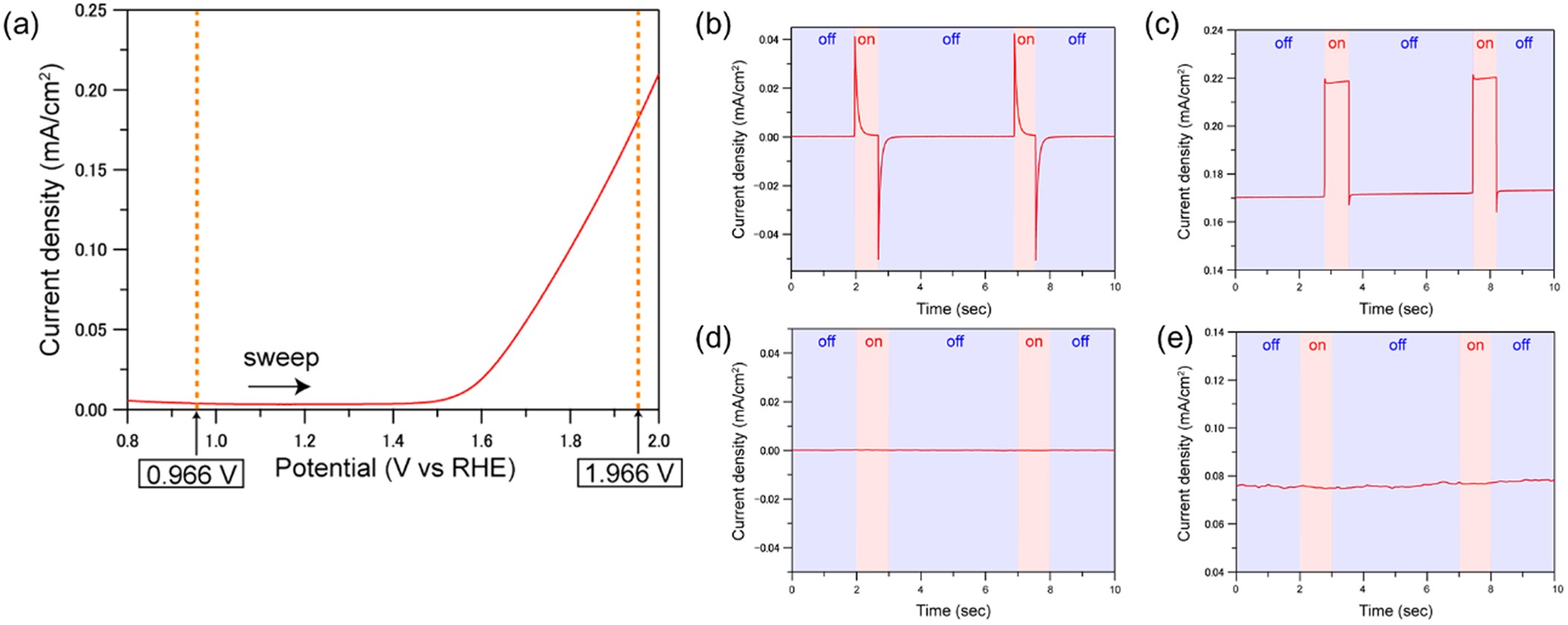

The microwave effects on oxidation current of water.

(a) Linear sweep voltammogram of the α-Fe2O3/FTO electrode immersed in 0.1 M NaOHaq. The scan rate was 100 mV/s. Potentiostatic ammperometry at 0.966 V vs. RHE (b) and 1.966 V vs RHE (c) under pulsed microwave irradiation. The electrochemical cell was located at the maximum point of oscillating electric field. Potentiostatic ammperometry at 0.966 V vs. RHE (d) and 1.966 V RHE (e) with pulsed microwave irradiation. The electrochemical cell was located at the maximum point of oscillating magnetic field.
