Figure 2

Isolation, purification and structural characterization of the exopolysaccharide from LGG.

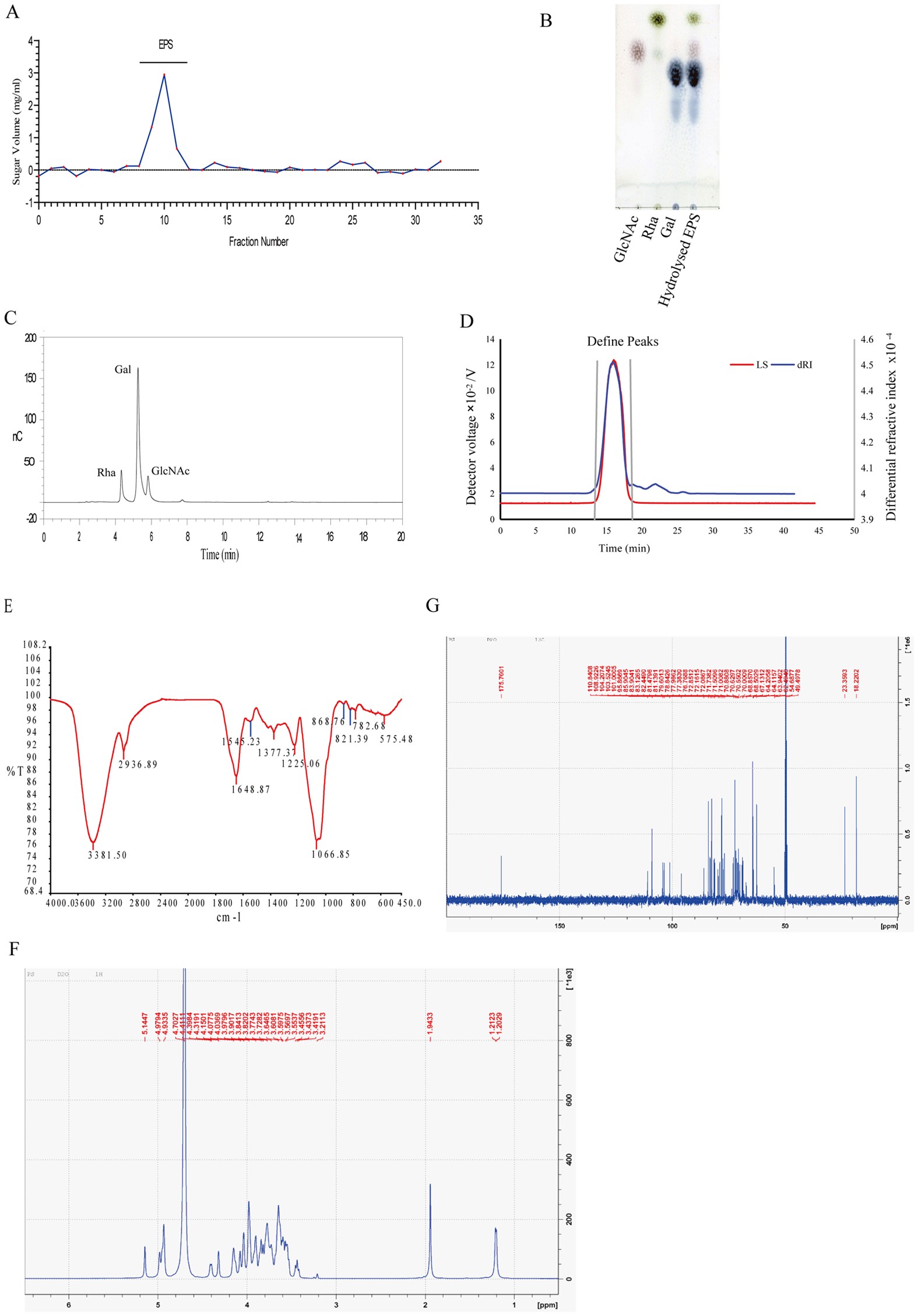

(A) Purification of LGG EPS by size-exclusion chromatography on a column of Superdex75 (10/300 GE). (B) TLC profile of monosaccharide composition of LGG EPS (GlcNAc, N-acetyl-D-glucosamine; Rha, rhamnose; Gal, galactose). (C) HPAEC profile of monosaccharide composition of LGG EPS. (D) Gel permeation chromatography-MALLS of LGG EPS. (E) IR spectrum of LGG EPS. NMR spectrum of LGG EPS (F) 1H-NMR and (G) 13C-NMR.
