Figure 6
From: Natural zwitterionic betaine enables cells to survive ultrarapid cryopreservation

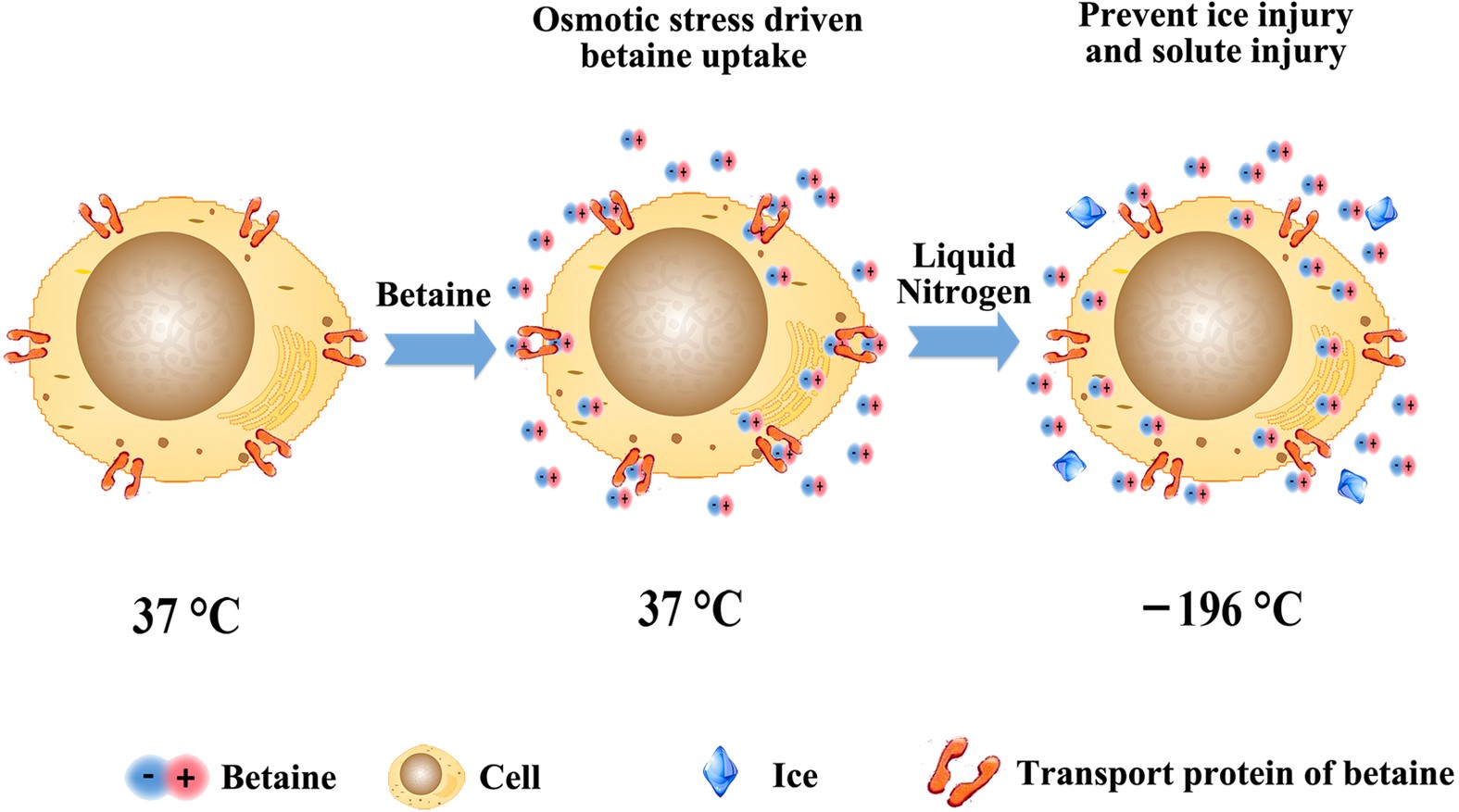

A proposed mechanism of cell cryopreservation using betaine with ultrarapid freezing.
During the freezing process, the uptake of betaine by cells via transport proteins is induced by osmotic stress (middle) and prevents the intracellular and extracellular ice injuries as well as solute injury.
