Figure 3 | Scientific Reports

Figure 3

From: Extending standard testing period in honeybees to predict lifespan impacts of pesticides and heavy metals using dynamic energy budget modelling

Figure 3

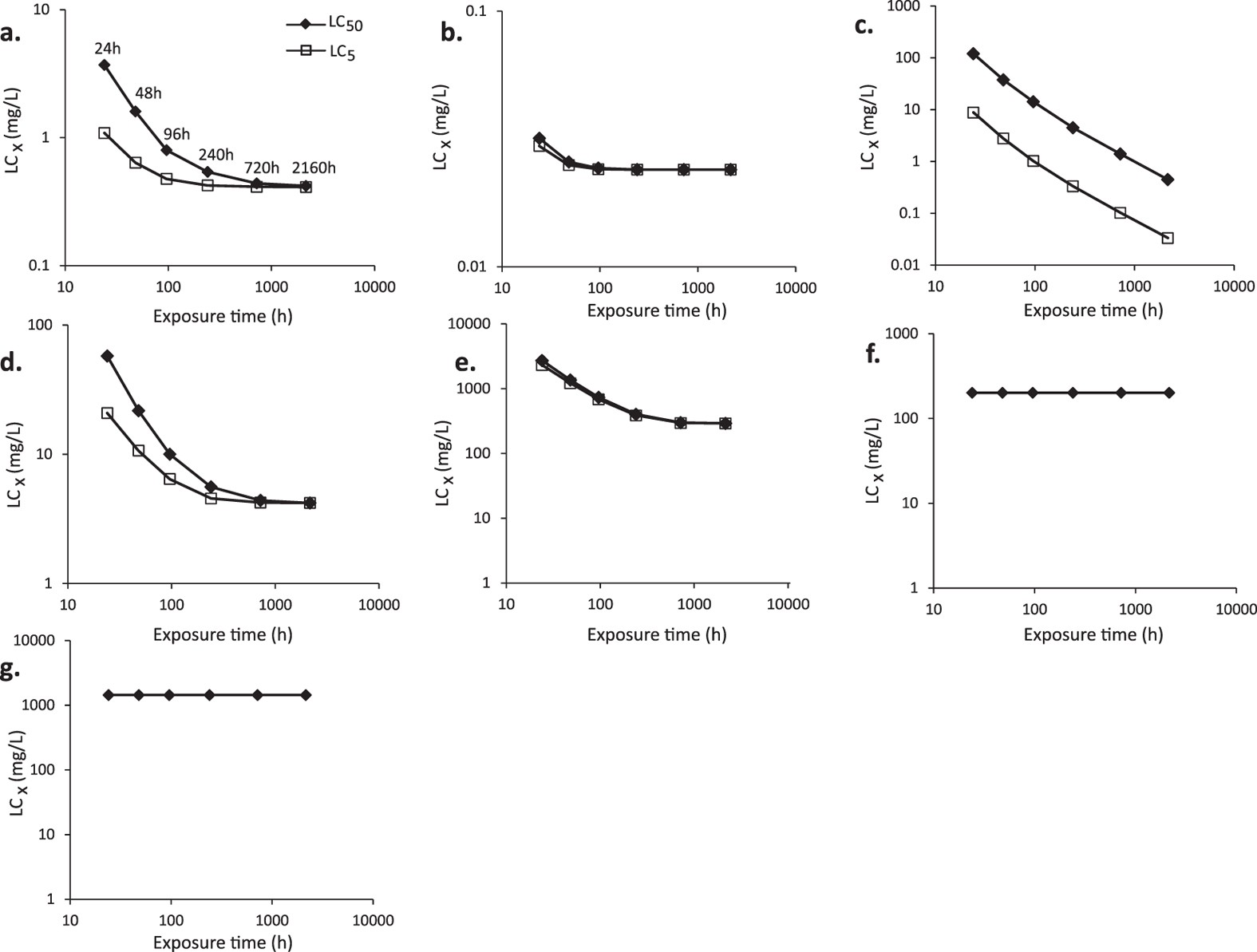

Relationship between LC50 (closed diamonds, solid line) and LC5 (open squares, dashed line) values estimated from DEBtox model parameters for Apis mellifera spp. exposed to a series of concentrations of (A) dimethoate; (B) clothianidin; (C) cadmium; (D) arsenic; (E) propiconazole; (F) tau-fluvalinate; and (G) 2,4-D and exposure time estimated for time periods (24, 48, 96, 240 h) relating to the exposure and predicted for extended exposure time relevant to the life-span of a worker bee during normal summer season (720 h) and when overwintering (2160 h).
