Figure 3
From: Comprehensive evaluation of molecular enhancers of the isothermal exponential amplification reaction
Effects of different concentrations of TMAC on EXPAR.

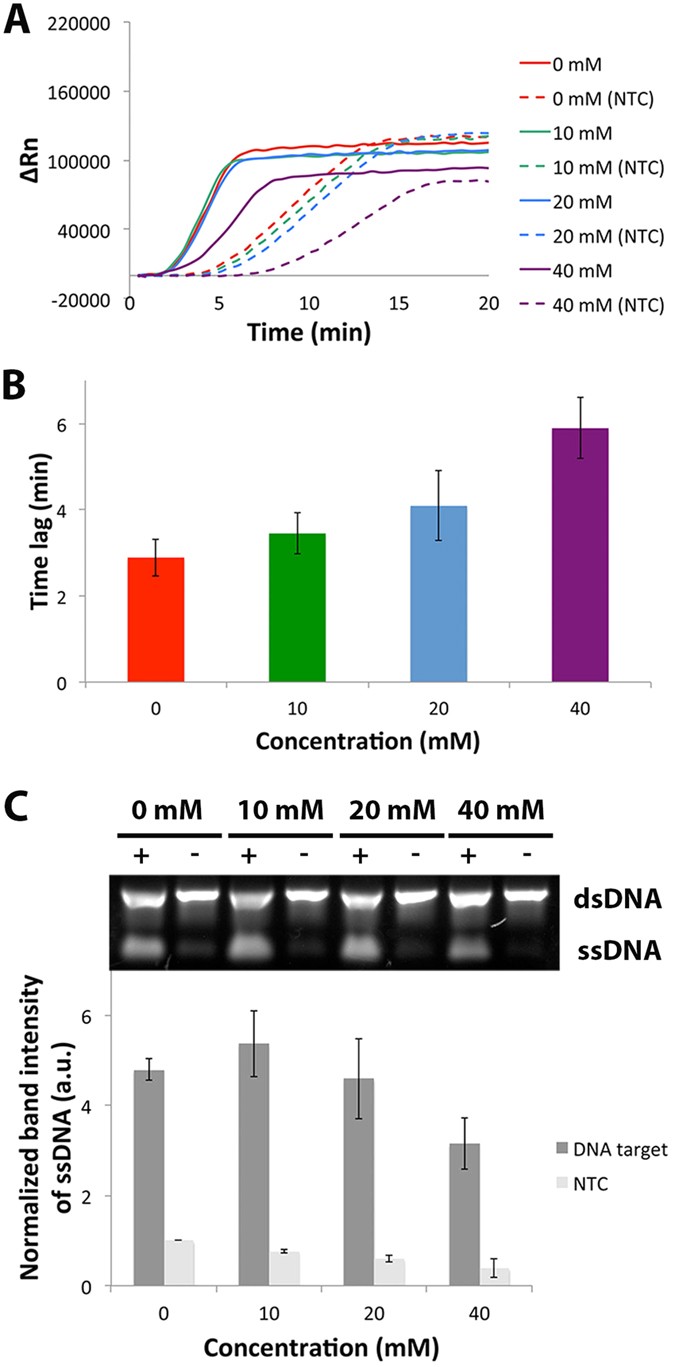

(A) Typical real-time amplification plot of EXPAR performed with positive target (solid line) and no-target control (NTC, dotted lines) at 0, 10, 20 and 40 mM of TMAC. (B) Time lag between targeted and NTC at different concentrations of TMAC. (C) Top: Typical gel electrophoresis image of corresponding EXPAR products. Full-length gel image provided in Supplementary Figure S8. Bottom: Bar graph of average ssDNA band intensities normalized to NTC without TMAC. Error bars represent SD, n = 2.
