Figure 3
From: The defining DNA methylation signature of Floating-Harbor Syndrome

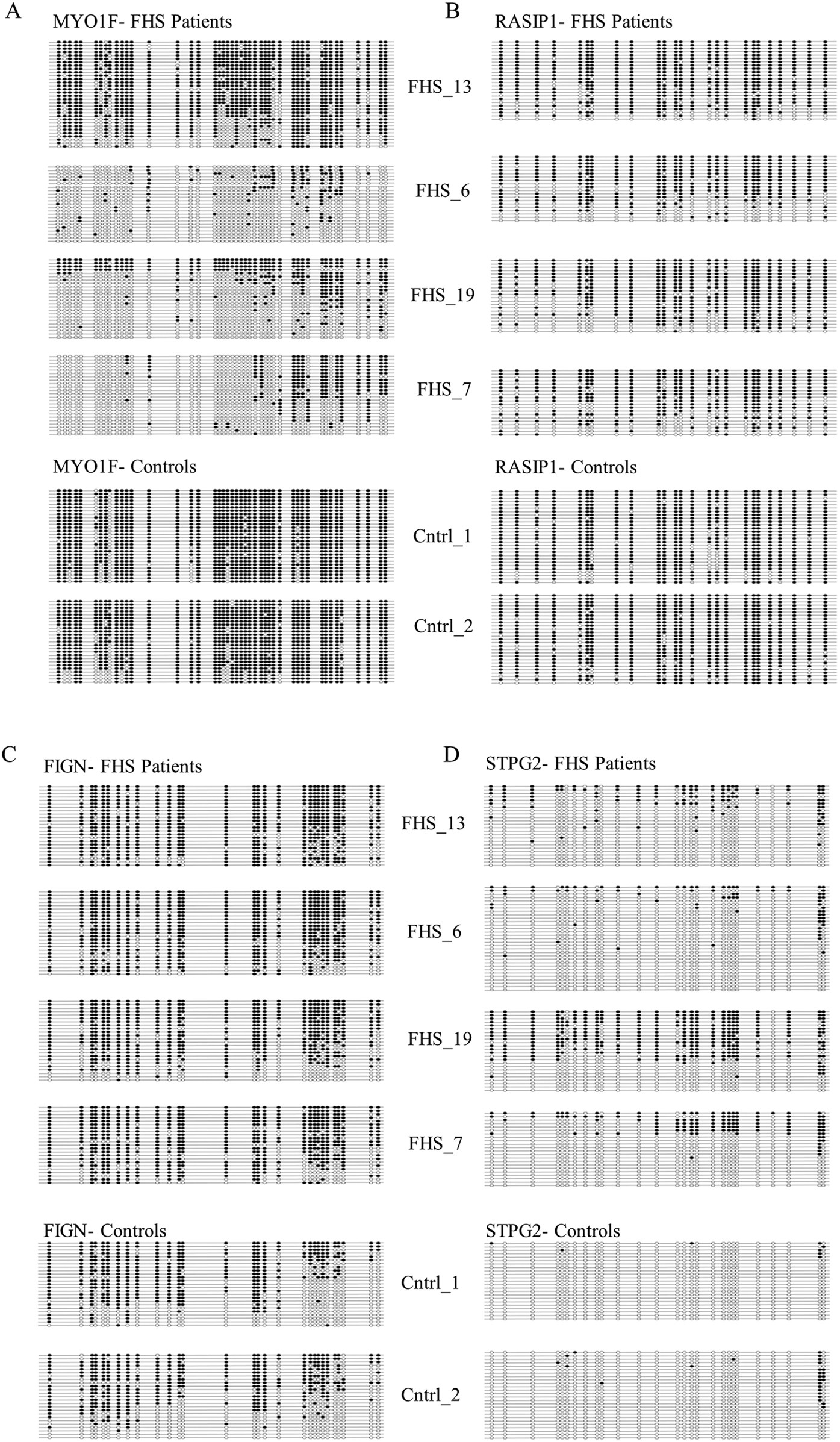

Methylation string diagrams of significantly altered regions in FHS individuals compared to controls.
String diagrams indicating methylation status across regions with significantly altered methylation in FHS: hypermethylated regions (a) MYO1F and (b) RASIP1, and hypomethylated regions (c) FIGN and (d) STPG2; for four FHS individuals (top) and two gender matched control samples (bottom). Each dot on the string indicates a CpG sequence, and potential site for methylation. Black dots indicate the CpG is methylated. Open dots indicate the CpG is un-methylated.
