Figure 5
From: Label-free, multi-scale imaging of ex-vivo mouse brain using spatial light interference microscopy

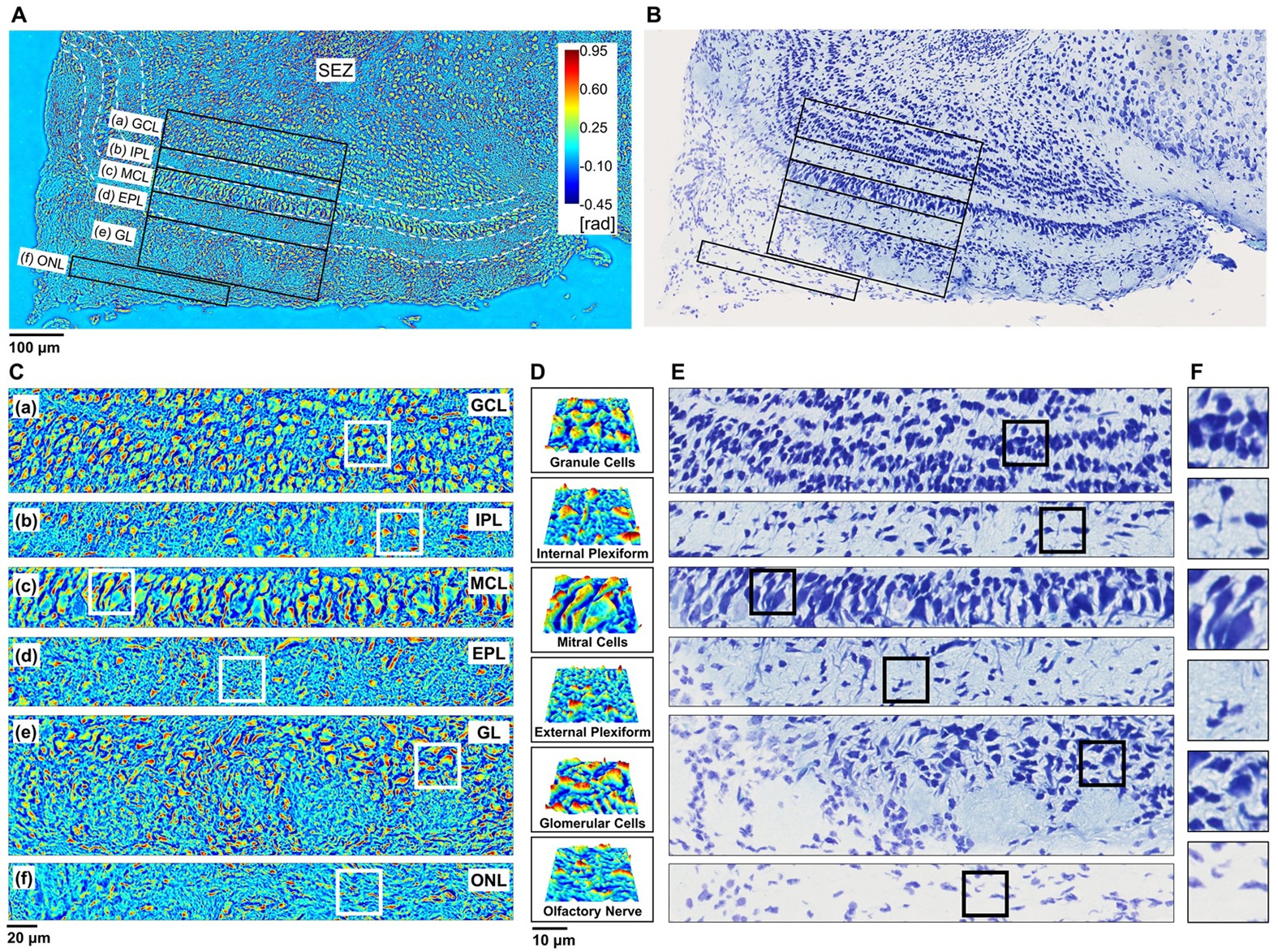

Anatomical structure of olfactory bulb (OB).
(A) Laminar structure of OB taken by SLIM. (B) Nissl-LFB stained image corresponding to (A). (C) Enlarged SLIM images of OB layers which correspond to each layer outlined in (A). (D) Magnified topology of cells indicated by the white boxes in (C). (E) Enlarged Nissl-LFB stained images of OB layers which correspond to each layer outlined in (B). (F) Magnified topology of cells indicated by the black boxes in (E). GCL, granule cell layers; IPL, internal plexiform layer; MCL, Mitral cell layer; EPL, external plexiform layer; GL, glomerular layer; ONL, olfactory nerve layer, SEZ, subependymal zone.
