Figure 8

From: Antimicrobial and anti-inflammatory activities of three chensinin-1 peptides containing mutation of glycine and histidine residues

Figure 8

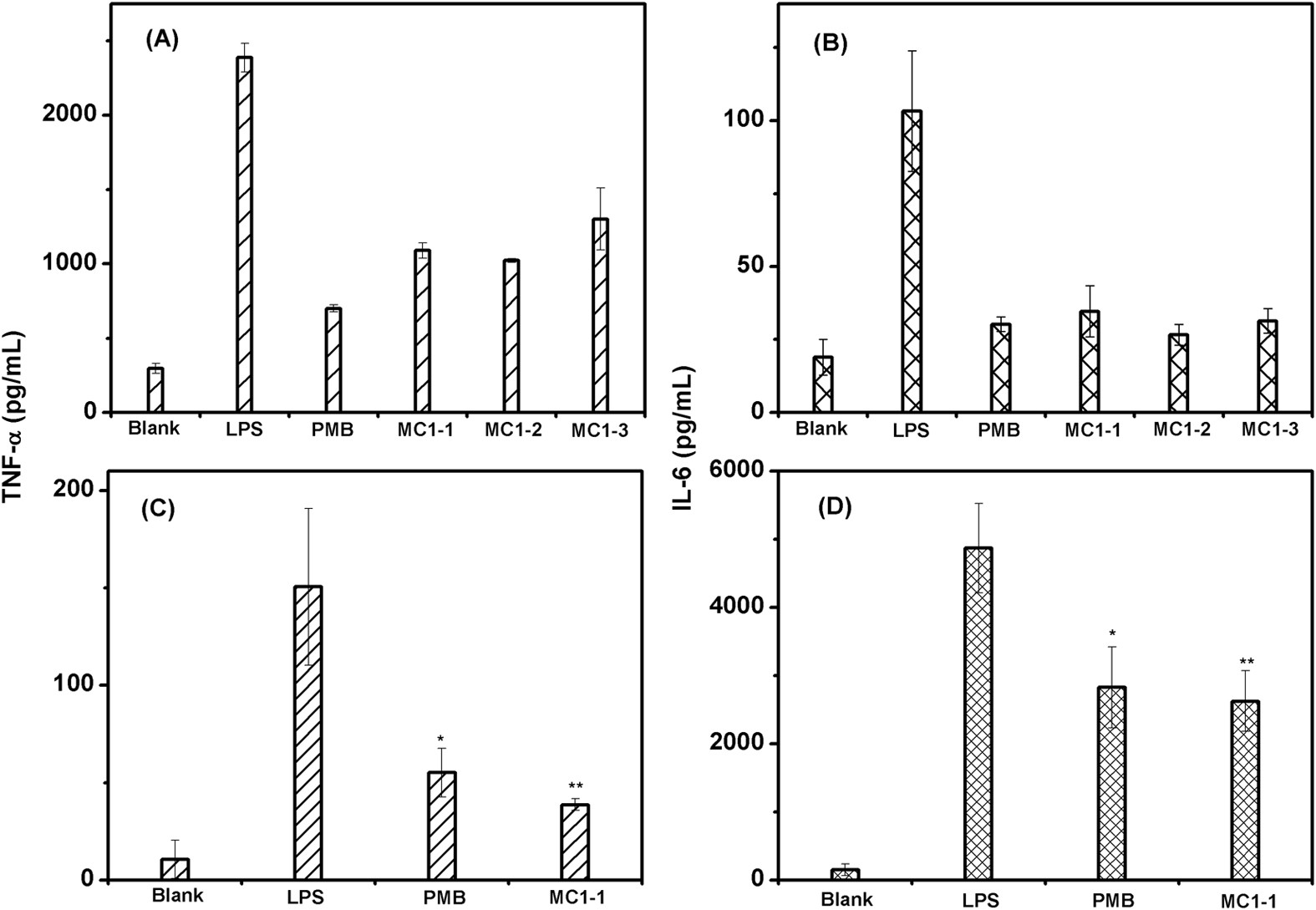

The production of TNF-α and IL-6. Raw 264.7 cells were stimulated with LPS and administrated by MC1-1, MC1-2 and MC1-3 for 24 h (A and B) and the inhibition of LPS-induced TNF-α and IL-6 release in endotoxemia mice by MC1-1 (C and D). The concentration of TNF-α and IL-6 was measured by ELISA. The numbers above the bars represent the average inhibition as a result of the peptides treatment and the standard errors. Compared with the LPS-challenged group, significant difference (p < 0.05) is indicated by an asterisk (*), and extremely significant difference (p < 0.01) is indicated by double asterisk (**).
