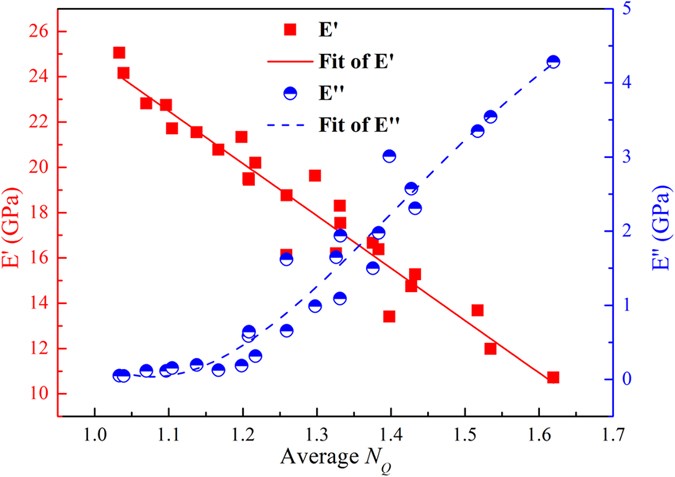

Figure 5: Storage modulus E′ and loss modulus E″ as functions of averaged N_Q.

In this figure, the frequency was set to 1 GHz. Temperature were 300 K, 400 K, 500 K, 600 K and 700 K. The metallic glass models were prepared at five different cooling rates: 1e9 K/s, 1e10 K/s, 1e11 K/s, 1e12 K/s and 1e13 K/s.
