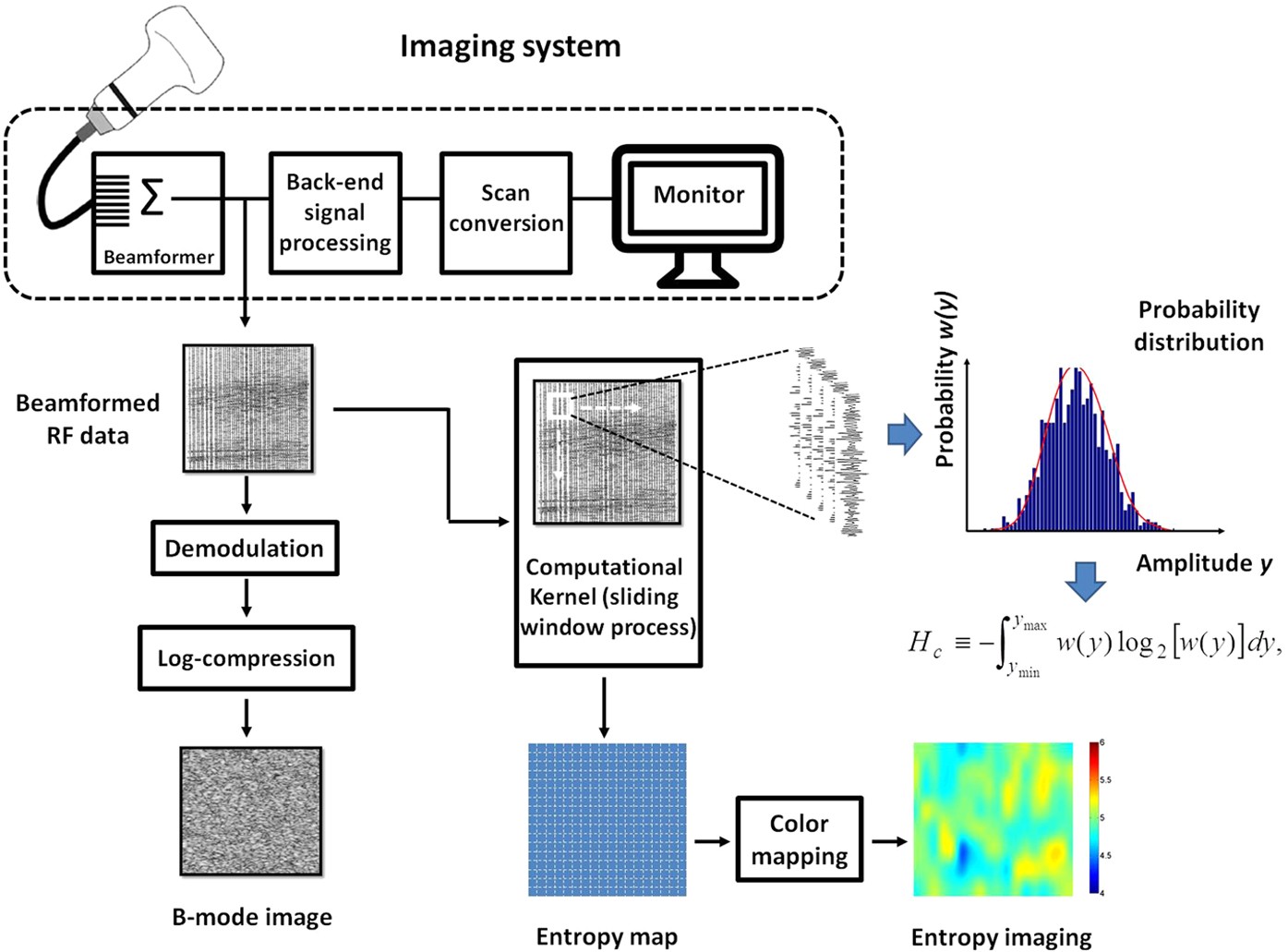

Figure 13: The algorithmic scheme designed for constructing the B-mode and information entropy images using the backscattered signals.
From: Small-window parametric imaging based on information entropy for ultrasound tissue characterization
The B-mode image was formed using a logarithm-compressed envelope image. The image RF data were used for entropy estimation and imaging using a standard sliding window algorithm.
