Figure 5: Optical profiling of surface roughness of a silicone lens and a commercial lens.

From: Design and fabrication of a passive droplet dispenser for portable high resolution imaging system

Figure 5: Optical profiling of surface roughness of a silicone lens and a commercial lens.The alternative text for this image may have been generated using AI.

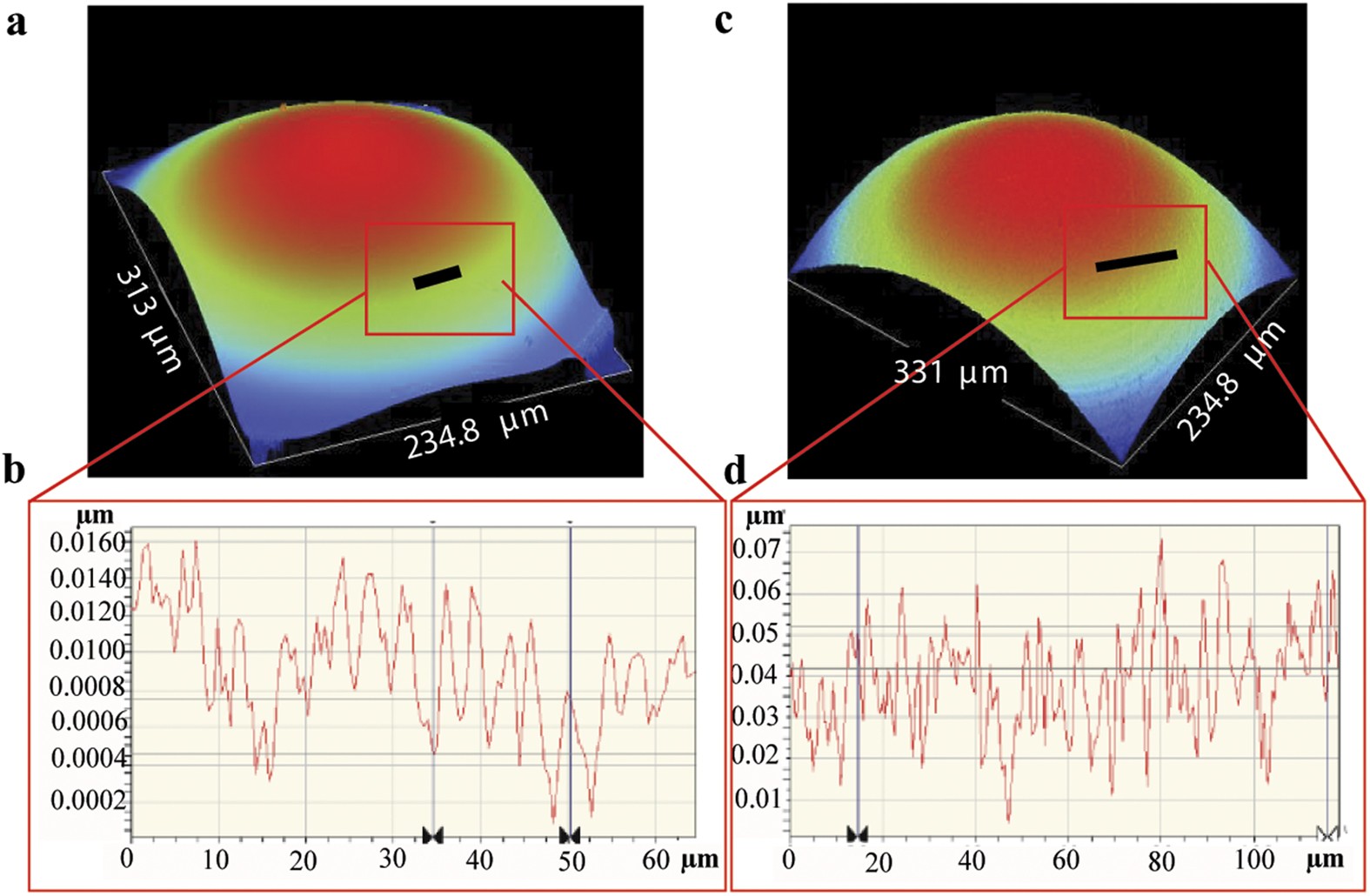

(a) 3D map of curvature of front surface of a silicone lens. (b) A cross-section (line plot) of the surface, measuring the surface roughness of the silicone lens. (c) 3D map of the curvature of the front surface of a commercial aspheric lens. (d) Corresponding line plot of cross section of the surface.
