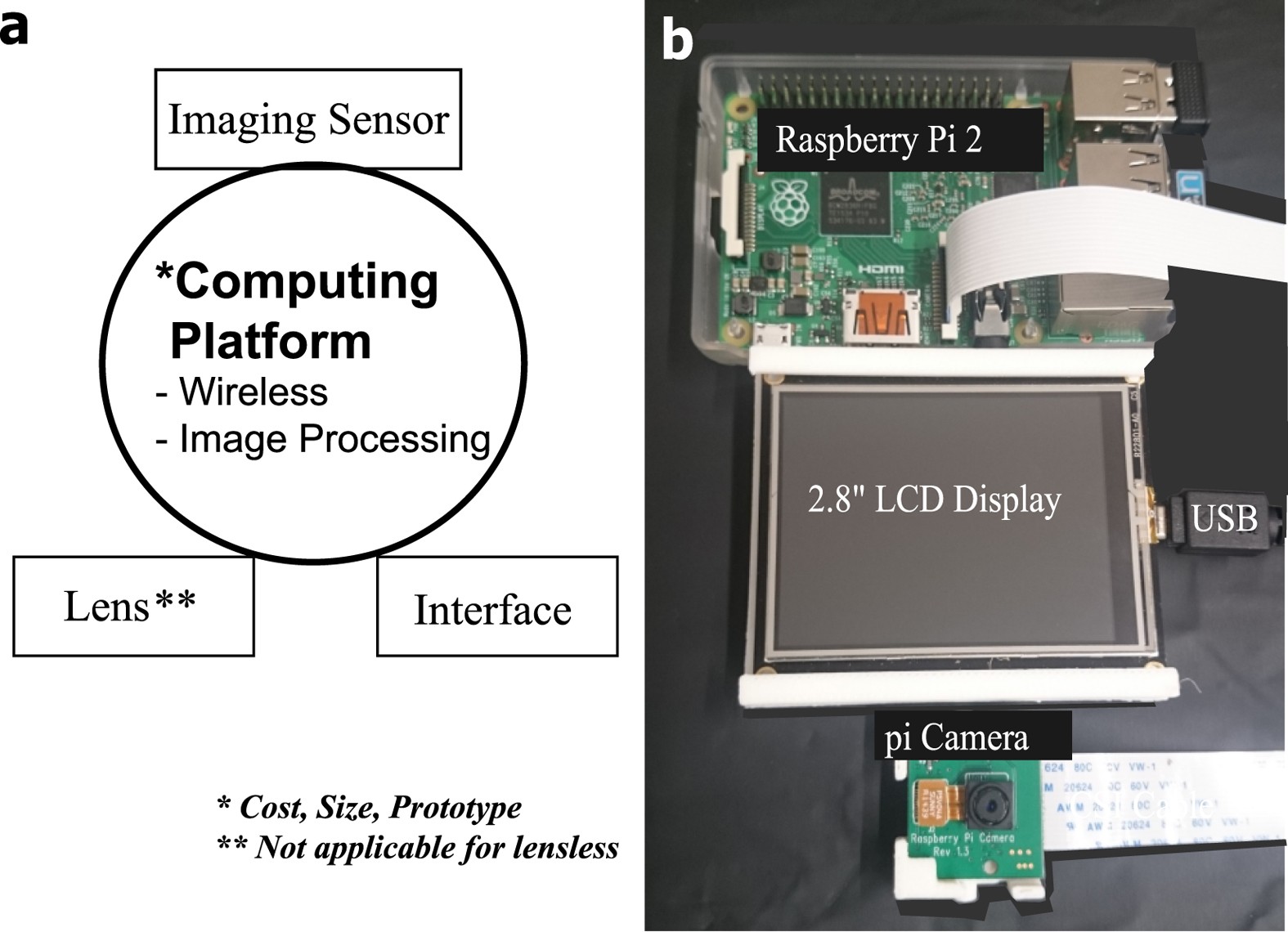

Figure 7: Overview of a portable imaging system.
From: Design and fabrication of a passive droplet dispenser for portable high resolution imaging system
(a) Schematic representing the components required for a compact microscopic imaging system. (b) A Raspberry Pi -2, the Pi camera and a 2.8″ LCD display is another option for designing a small imaging system.
