Figure 6: Parameter region of the bound state formation at the collision.

From: Theory of skyrmions in bilayer systems

Figure 6

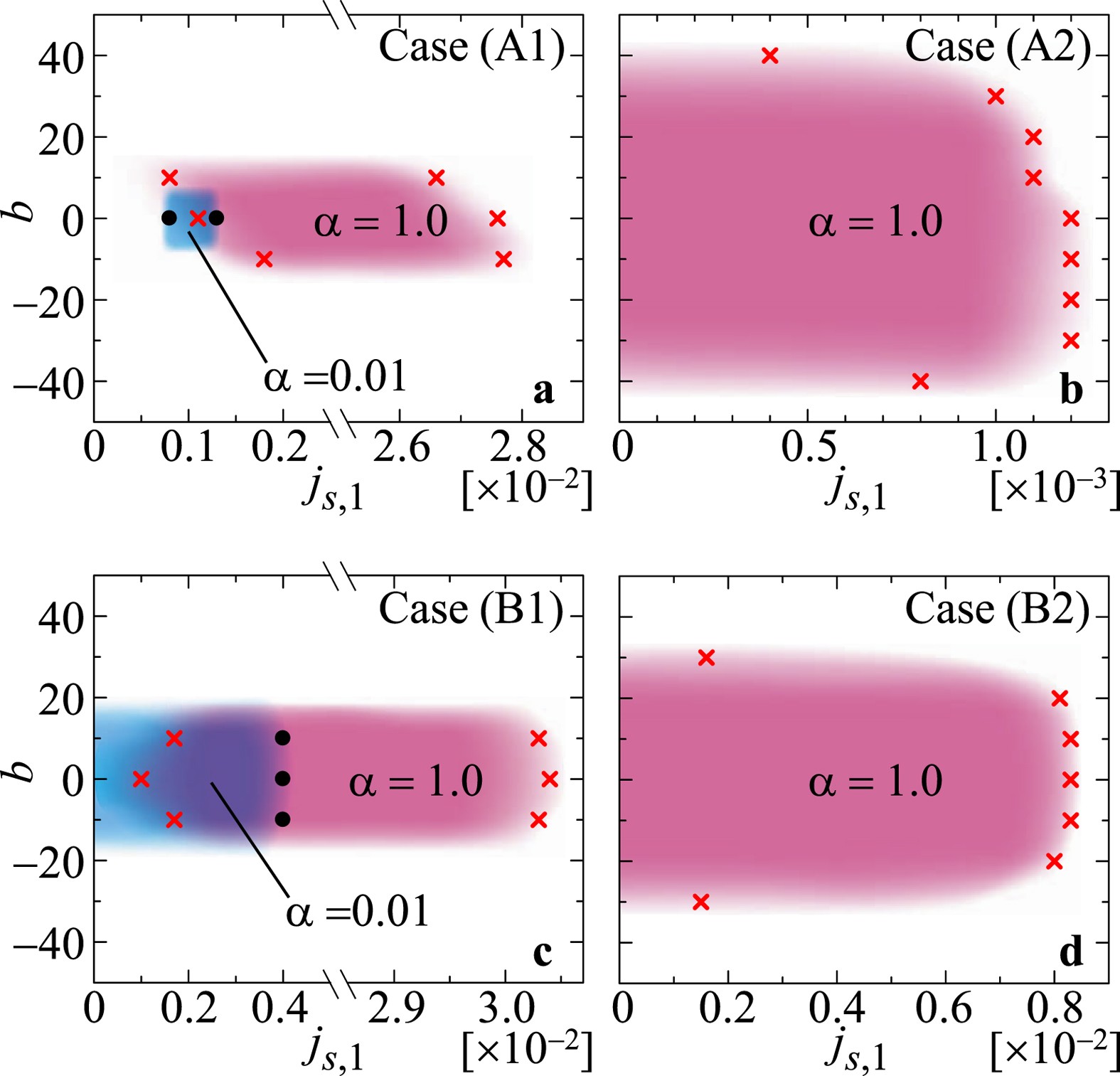

(a) The black dots (red crosses) indicate the upper and lower critical values of js,1 to form the skyrmion bound state for α = 0.01 (α = 1.0) in the case (A1). The critical values of js,1 are examined at the impact parameters b = −50 ~ +50 in 10 increments. Figures (b–d) are the same as (a) but for the cases (A2), (B1) and (B2), respectively, and only the results for α = 1.0 are shown in (b,d).
