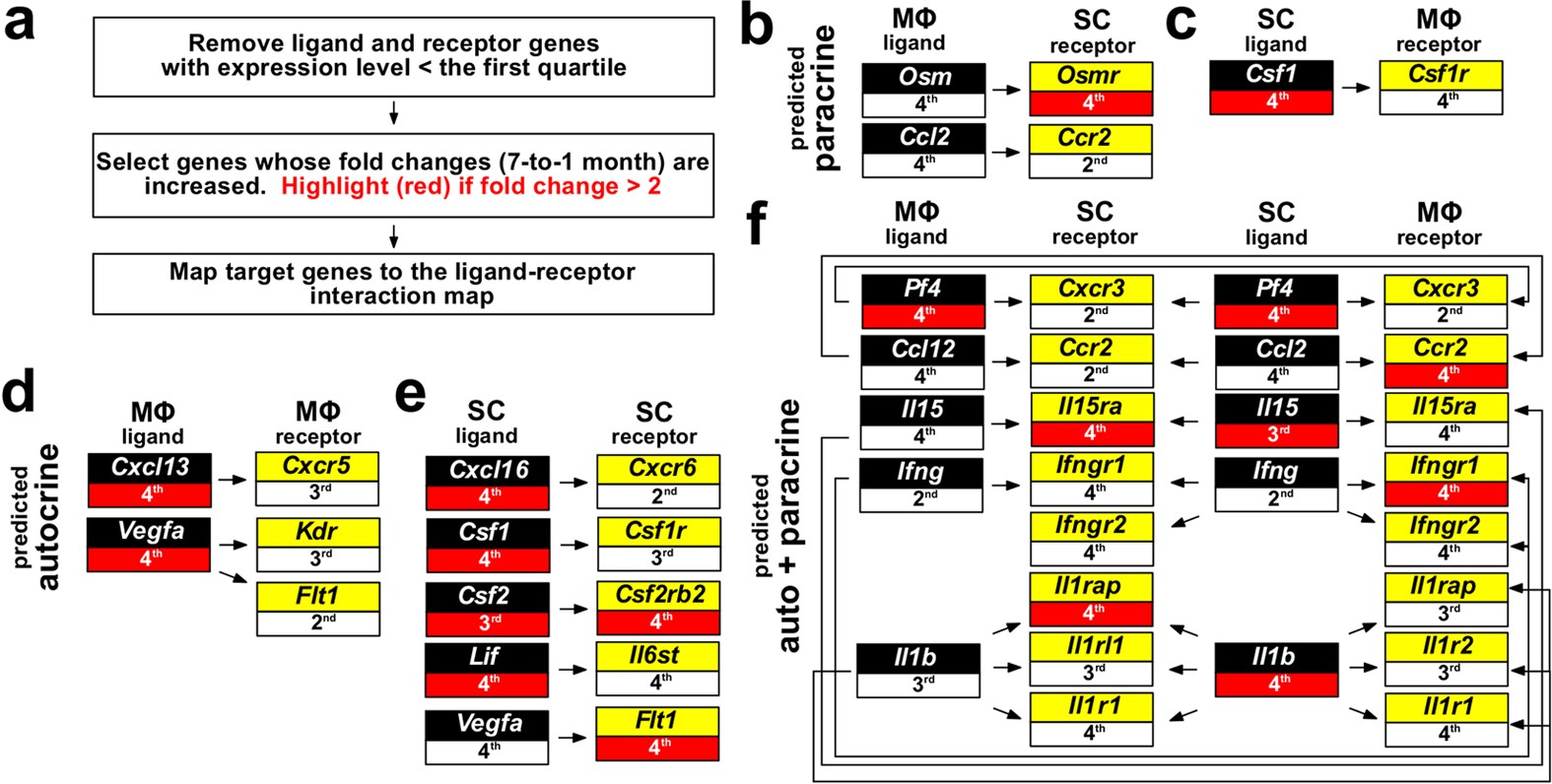

Figure 5: Potential paracrine and autocrine regulations in 7-month-old neurofibroma microenvironment.

The relative expression levels are represented as quartiles (1^st: lowest, 4^th: highest). DEGs compared to 1-month-old neurofibroma SCs (Nf1^−/−) and neurofibroma macrophages (Nf1^+/+) are indicated in red boxes (fold >2).
