Figure 7: Network analysis and interferon target analysis.

From: An inflammatory gene signature distinguishes neurofibroma Schwann cells and macrophages from cells in the normal peripheral nervous system

Figure 7

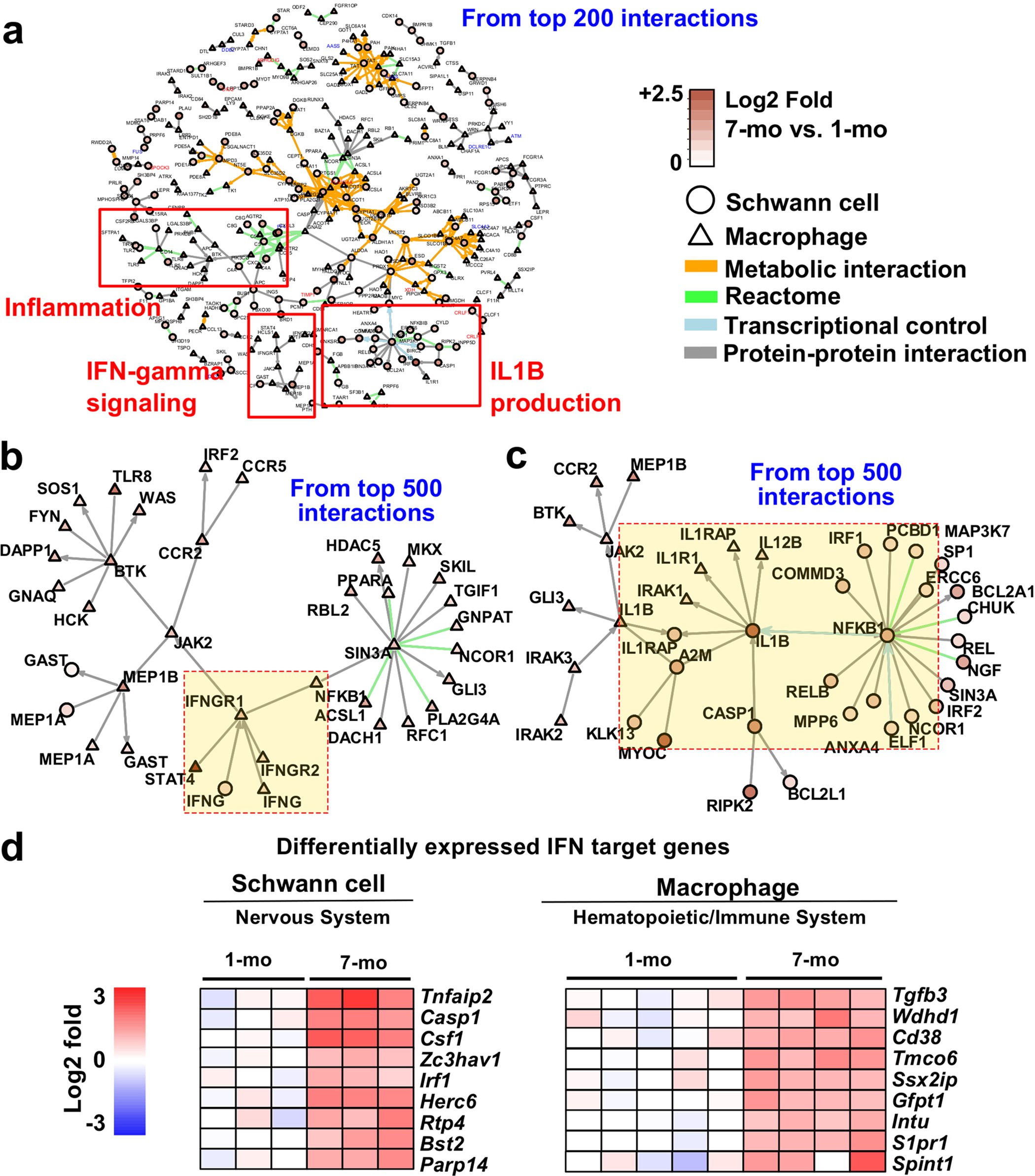

(a) Intra- and inter-cellular network generated based on top-scoring network interactions revealed sub-networks related to inflammation and immune responses (b and c). Two functional modules, representing IFN-γ signaling and IL1B production, were re-plotted using a bigger context (top 500 interactions). (c) IFN-γ target DEGs from 7-to-1 month comparisons of SC and macrophages were predicted using INTERFEROME v2.0.
