From: Multi-mode of Four and Six Wave Parametric Amplified Process

Figure 1

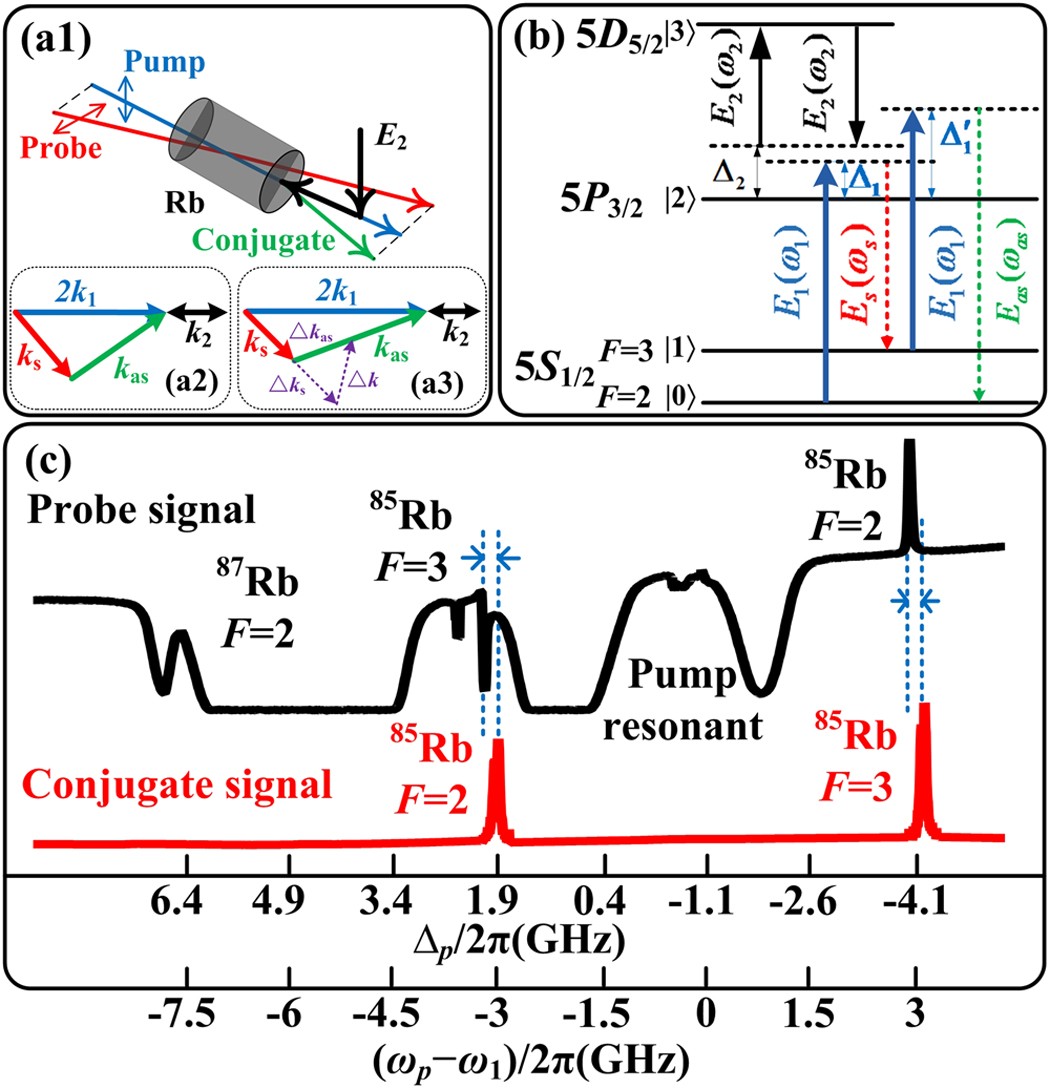

(a1) Spatial beams alignment of the PA-SWM process. (a2) Phase-matching geometrical diagram of the PA-SWM process. (a3) Phase mismatching geometrical diagram. (b) Energy-level diagram for the inverted-Y configuration in 85Rb vapor. (c) Measured probe transmission signal and corresponding conjugate signal versus the probe detuning.
