Figure 3: Measured probe and corresponding conjugate signals versus ∆p at different dressing detuning ∆2.

From: Multi-mode of Four and Six Wave Parametric Amplified Process

Figure 3: Measured probe and corresponding conjugate signals versus ∆p at different dressing detuning ∆2.

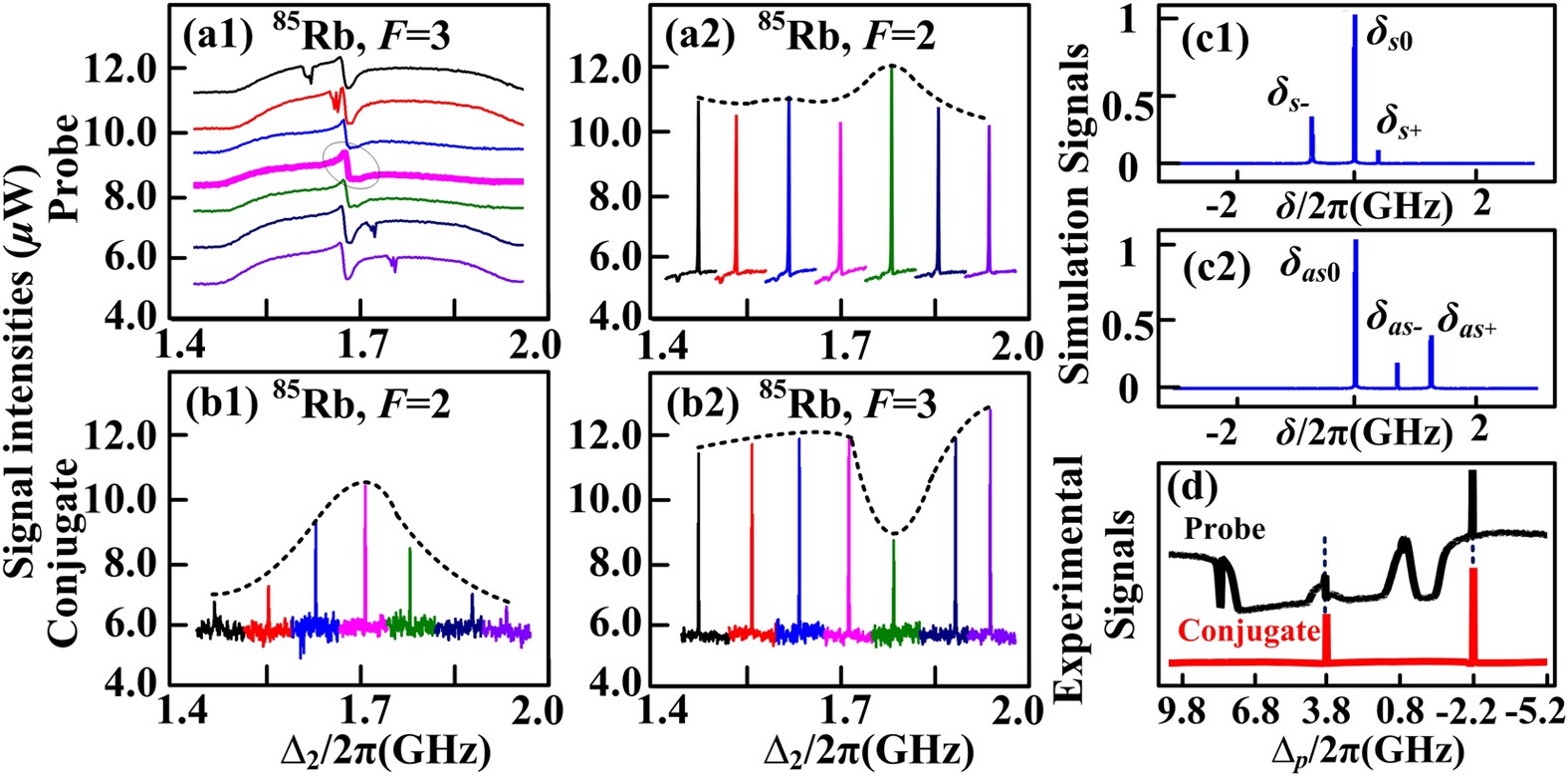

The wavelength of pump beam E1 is 780.2356 nm (∆1 = −1.07 × 2π GHz). Intensity evolutions of Stokes (a1) (ωp − ω1 = −3 × 2π GHz) and anti-Stokes (a2) (ωp − ω1 = 3 × 2π GHz) signals of the PA-SWM & FWM in probe field versus ∆p by increasing ∆2. (b1,b2) Signals in conjugate channel corresponding to (a1,a2). (c1,c2) Simulations of Stokes and anti-Stokes signals versus frequency mismatch δ, respectively. (d) Overview probe and corresponding conjugate spectrograms versus ∆p over 14 × 2π GHz.
