Figure 2
From: Crystallization and hardening of poly(ethylene-co-vinyl acetate) mouthguards during routine use

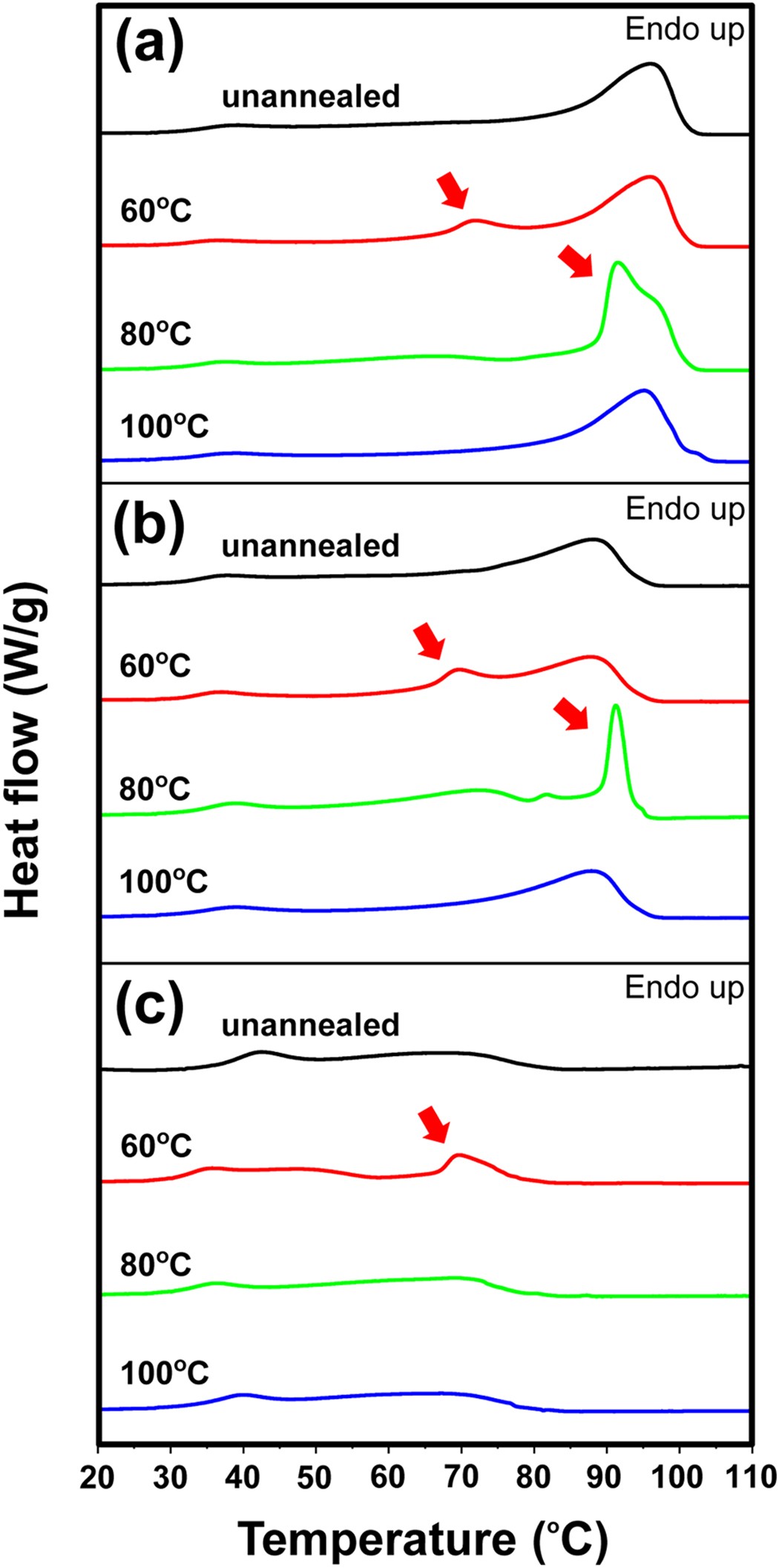

DSC curves of the heating process of (a) EVA9, (b) EVA14, and (c) EVA28. Samples: unannealed (black), annealed at 60 °C (red), annealed at 80 °C (green), and annealed at 100 °C (blue). New endothermic peaks were shown with red arrows.
