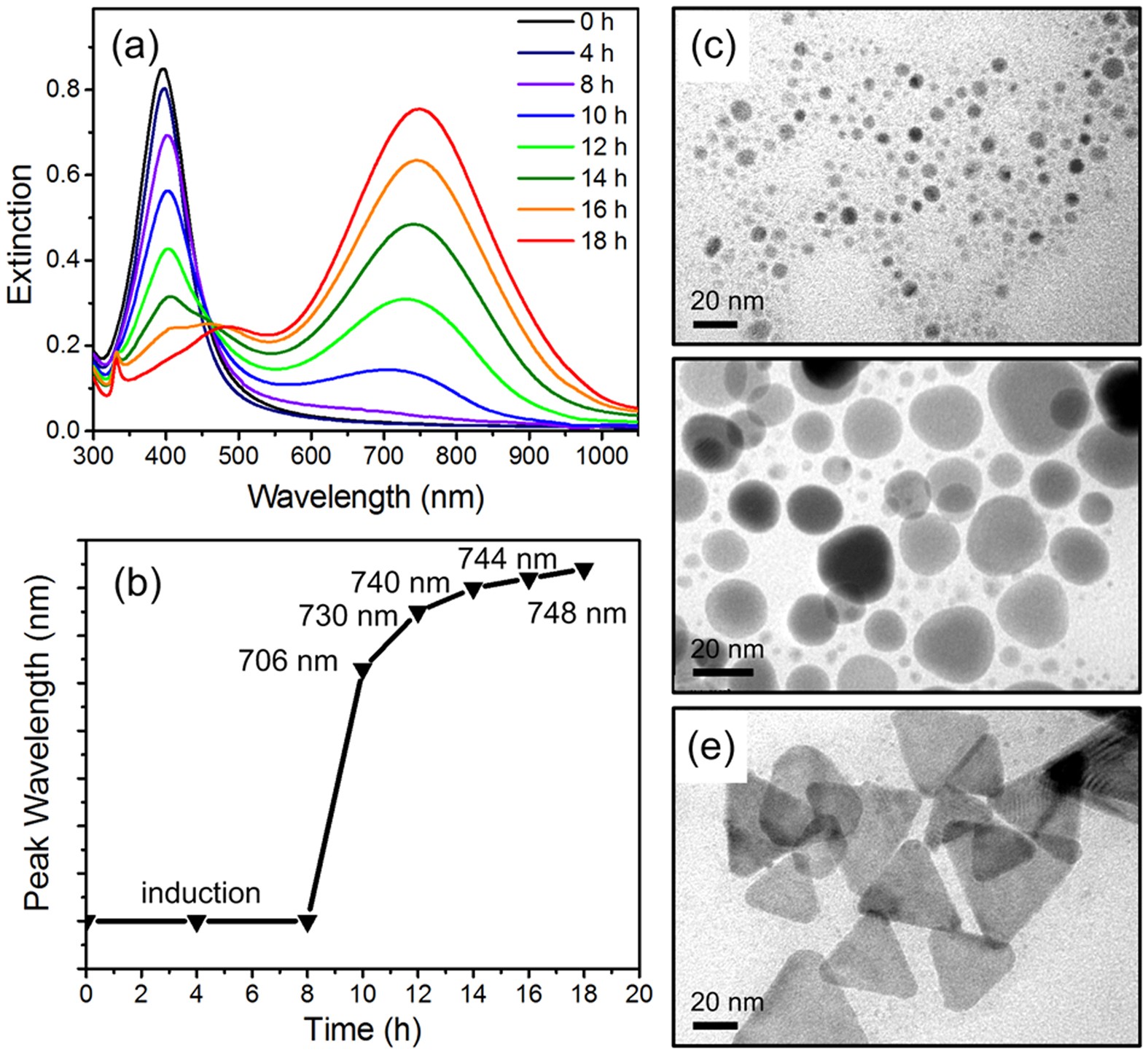

Figure 1
From: Plasmon-assisted site-selective growth of Ag nanotriangles and Ag-Cu2O hybrids
(a) Extinction spectra of the silver seed solutions with different reaction time of light irradiation. (b) Corresponding plasmon peak wavelength varying with reaction time. TEM images showing the morphology at the reaction time of (c) 0 h, (d) 10 h, and (e) 18 h.
