Figure 10: Akirin2 promotes porcine skeletal muscle satellite cells proliferation through NFATc1 signaling pathway. | Scientific Reports

Figure 10: Akirin2 promotes porcine skeletal muscle satellite cells proliferation through NFATc1 signaling pathway.

From: Akirin2 regulates proliferation and differentiation of porcine skeletal muscle satellite cells via ERK1/2 and NFATc1 signaling pathways

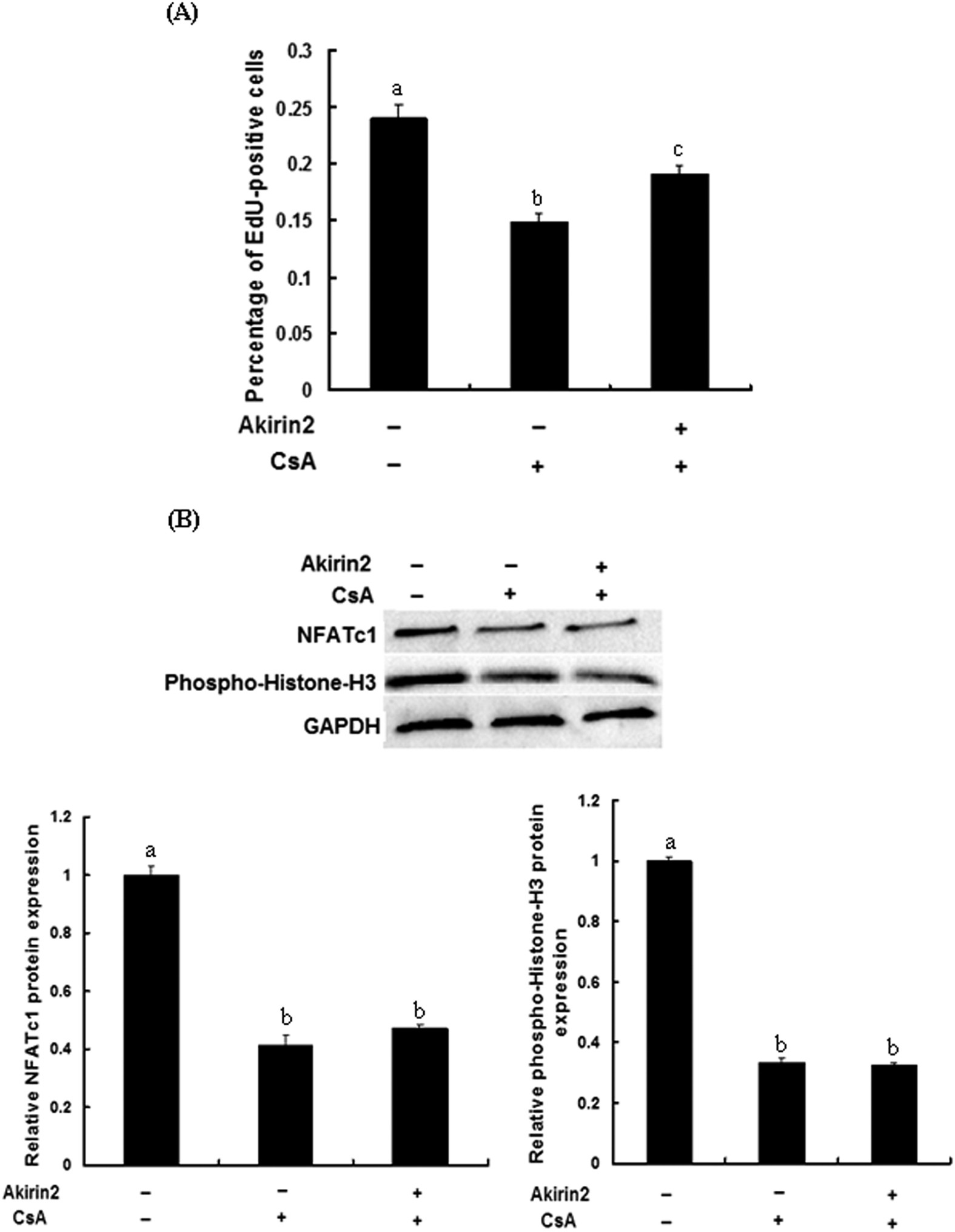

Figure 10: Akirin2 promotes porcine skeletal muscle satellite cells proliferation through NFATc1 signaling pathway.

(A) Approximately 60% confluent porcine skeletal muscle satellite cells, pretreated with 5 μM CsA for 1 h or left untreated, were transfected with 0.5 μg of pcDNA3.1(+)-pAkirin2. After 24 h, cell proliferation was evaluated by EdU proliferation assay. The percentage of EdU-positive cells was quantified. Data were presented as mean ± SE (n = 6). (B) Lysates from porcine skeletal muscle satellite cells treated as described in (A) were immunoblotted with anti-phospho-Histone H3 and NFATc1 antibodies. Equal loading was monitored with anti-GAPDH antibody. Results were presented as mean ± SE (n = 3). Values with different letters are significantly different (P < 0.05).
