Figure 1

From: Development and Pre-Clinical Evaluation of Recombinant Human Myelin Basic Protein Nano Therapeutic Vaccine in Experimental Autoimmune Encephalomyelitis Mice Animal Model

Figure 1

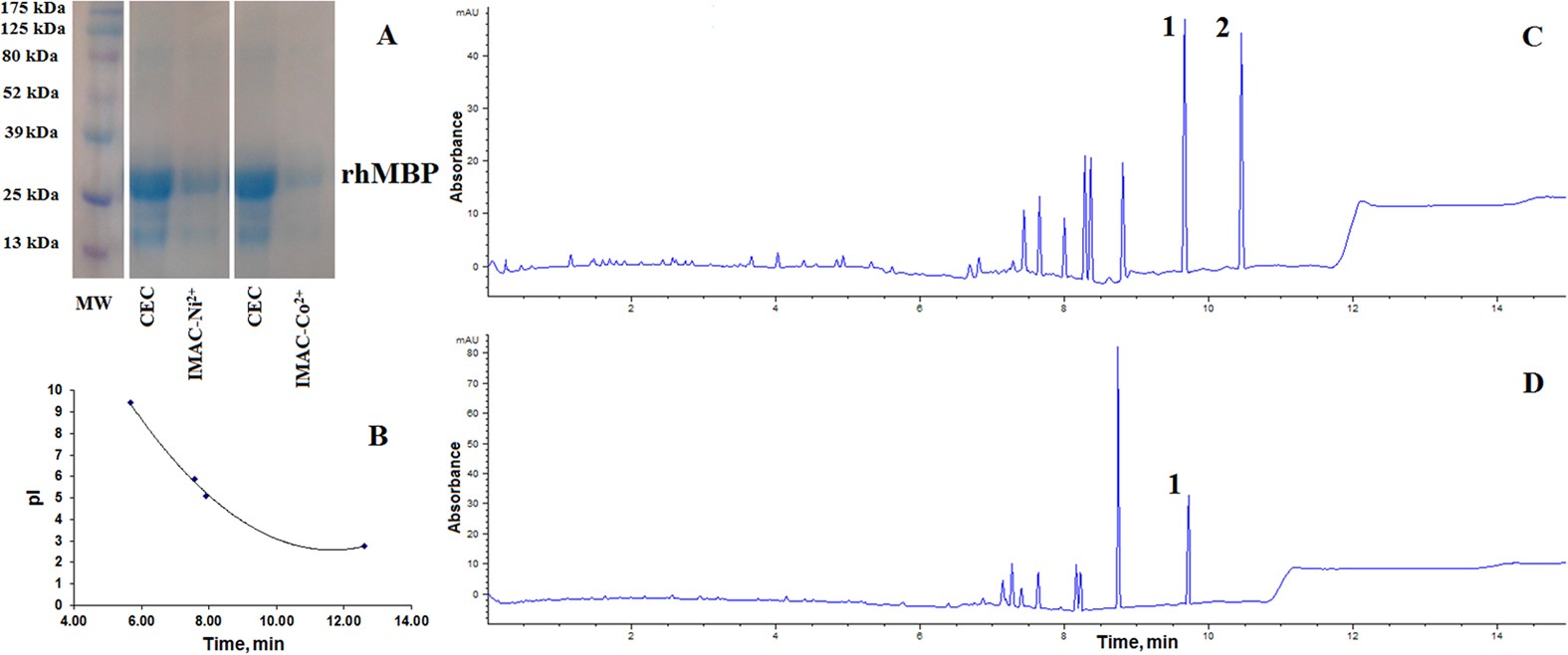

(A) SDS-PAGE results showing the relative purity of rhMBP obtained using cation exchange chromatography (CEC) followed by IMAC Co2+ when compared to IMAC Ni2+. Capillary isoelectric focusing electrophoregrams showing the protein composition of transgenic milk fractions obtained after the cation exchange direct capture step (B) and further purification using IMAC-Co2+ (C). A plot of pI vs migration time of protein markers (D). (1: β-casein, 2: αs-casein).
