Introduction

AP-2β belongs to a family of four closely related transcription factors, AP-2α, AP-2β, AP-2γ, and AP-2δ, which execute essential functions during mammalian embryonic development (Moser et al, 1995; Oulad-Abdelghani et al, 1996; Williams et al, 1988; Zhao et al, 2001). AP-2 genes have also been cloned from nonmammalian organisms including chicken, Xenopus, and Drosophila (Bauer et al, 1998; Mitchell et al, 1991; Monge and Mitchell, 1998; Shen et al, 1997; Snape et al, 1991), revealing considerable evolutionary conservation. All AP-2 proteins are characterized by an N-terminal proline- and glutamine-rich transactivation domain followed by a short, positively charged DNA-binding region and two α-helical structures separated by a span region. The alpha helices and the span region mediate dimerization of AP-2 proteins. Both homo- and heterodimers have been described (Williams and Tjian, 1991a, 1991b), leading to a large variety of conceptual AP-2 complexes in tissues with overlapping expression patterns.

During murine development, the previously analyzed AP-2 genes, AP-2α, AP-2β, and AP-2γ, are expressed in temporally and spatially overlapping patterns in neuroectodermal, ectodermal, and urogenital tissues (Chazaud et al, 1996; Mitchell et al, 1991; Moser et al, 1995, 1997b). Coexpression of AP-2 genes is particularly observed in neural crest cells, which migrate from the dorsal neural tube and give rise to a number of different tissues and structures including facial bones, the peripheral nervous system, and melanocytes. In addition, these studies demonstrate specific AP-2 gene expression patterns in skin and urogenital tissues and also in the central nervous system and the limb bud mesenchyme. Expression-pattern specificity can best be seen in the developing brain, where AP-2γ is expressed in the forebrain, AP-2β in the mid- and hindbrain, and AP-2α almost exclusively in the cerebellum (Chazaud et al, 1995; Moser et al, 1997b; Zhao et al, 2001). In mammals as well as in evolutionarily lower animals like Drosophila, Xenopus, and some avian species, AP-2 is strongly expressed in facial structures, in the central nervous system, the epidermis, and neural crest cells, indicating a general functional importance of AP-2 genes for the development of these tissues (Bauer et al, 1998; Epperlein et al, 2000; Monge and Mitchell, 1998; Shen et al, 1997; Snape et al, 1991).

A recently performed mutagenesis screen to isolate DAP-2 mutant alleles in flies resulted in several lethal-point mutant alleles flies caused these flies to die as adults or late pupal stages and show reduced proboscis, shortened legs, absent tarsal joints, and disruption of the protocerebral central complex (Kerber et al, 2001; Monge et al, 2001). The functional importance of AP-2 genes for the development of craniofacial structures, limb formation, and kidney development was also shown by gene inactivation of AP-2α (Schorle et al, 1996; Zhang et al, 1996), AP-2β (Moser et al, 1997a), and AP-2γ (Aumann et al, 2002; Werling and Schorle, 2002) in mice. AP-2α knockout mice die perinatally and develop exencephaly, which becomes apparent at embryonic stage E9.5 when the cranial neural folds fail to oppose to form the anterior neural tube. In addition, increased apoptotic cell death in the midbrain, hindbrain, and migrating cranial neural crest cells contributes to the development of the cranial defects. AP-2γ knockout mice die very early during embryogenesis because of severe defects in extraembryonic tissues.

Although embryonic expression of AP-2α, AP-β, and AP-γ overlaps significantly during development, the phenotype of AP-2β knockout mice does not show any of the developmental defects of AP-2α or AP-2γ mutant mice. AP-2β knockout mice complete normal embryonic development but show enhanced apoptotic cell death in renal epithelial cells, enlarged cystic tubular structures, and die at birth (Moser et al, 1997a). Consistent with an undisturbed embryonic development, the overall renal morphology was well organized, and the expression of developmental markers for the induction and conversion of mesenchymal cells into tubular structures was unaltered.

Although AP-2β mutant kidneys resemble human autosomal recessive polycystic kidney disease, we have previously excluded AP-2β as a candidate gene (Mücher et al, 1998). Subsequent to these studies, a large multidomain protein, PKHD1, was recently identified as the autosomal recessive polycystic kidney disease gene in close proximity to the AP-2β locus on chromosome 6p21 (Onuchic et al, 2002; Ward et al, 2002).

In this study, we demonstrate that AP-2β deficient mice survive approximately 2 weeks after birth in a 129P2 background and can therefore be used for detailed physiologic analysis of the phenotype. Our data reveal that AP-2β mutant animals suffer from impaired tubular secretory function, ion homeostasis, and severe hypocalcemia. Because of kidney failure, AP-2β mice develop secondary hyperparathyroidism.

Results

Growth Retardation of AP-2β Mutant Mice

We have previously described that AP-2β deficient mice, generated on a mixed C57BL/6 × 129S1 genetic background, develop polycystic kidney disease and die perinatally (Moser et al, 1997a). In this study, we analyzed the same mutation in 129P2 mice and observed significant attenuation of the phenotype. For the experiments described in this study, heterozygous AP-2β mutant mice were mated with inbred 129P2 mice and then paired for eight further generations within the same line before further analysis. On this background, the Mendelian ratios are preserved prenatally, but only approximately 10% of homozygous mutant animals survive between 10 and 14 days after birth. AP-2β deficient mice were born and became significantly retarded in development about 4 days after birth (Fig. 1, A and B). Homozygous mutants were easily detected as small animals with dry and scaly skin and revealed a striking shivering and trembling behavior accompanied with tetanic cramps. However, these mice were able to feed because their stomach was filled with milk and digestion appeared normal upon internal inspection. Gross anatomy was entirely preserved, with the exception of an additional sixth digit representing postaxial hexadactyly of the anterior extremity (data not shown).

Figure 1
figure 1

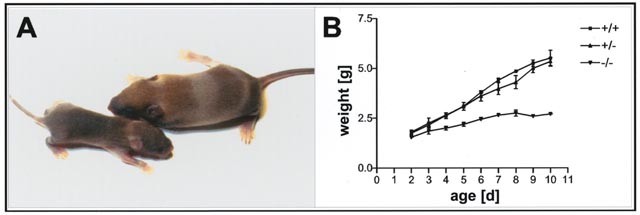

Retardation in growth and development of AP-2β mutant mice. AP-2β-/- and wild-type litter mates at Day 10 postnatal (A). A statistical analysis (B) reveals severe retardation in growth of the homozygote mutants. Values are derived from 8 (-/-), 32 (+/-), and 24 (+/+) animals, respectively.

Full size image

Cysts Formation in Kidneys of AP-β Mutant Mice

In similarity to the previously characterized prenatal AP-2β mutant animals, postnatal organs also appeared histologically normal, with the exception of kidneys (Moser et al, 1997a). Renal sections from a number of different mutants showed varying numbers of dilated tubules and tubular or collecting duct cysts, ranging from only a few small isolated cysts to up to hundreds of cystic structures dispersed throughout the entire kidney (Fig. 2, A to D). To determine the cellular origin of the cystic structures, immunohistochemical and lectin stainings were performed using markers for proximal tubular epithelium and collecting ducts. Immunostaining of the aquaporin-2 water channel, which is strongly expressed in the collecting duct epithelium (Verkman and Mitra, 2000), revealed that a portion of the cysts, with flattened epithelium lining the fluid lumen, were derived from collecting ducts. Furthermore, the lectin Tetragonolobus purpureus was used to identify proximal tubular epithelium, which was also shown to give rise to cysts (Fig. 3, A and B). These cysts probably result from secondary defects of distal tubular and collecting ducts because AP-2β is not expressed in the proximal tubular epithelium, as shown by in situ hybridization with an AP-2β specific probe (Fig. 3C). Ultrastructurally, the cyst lining epithelia showed a very flat dedifferentiated phenotype, whereas epithelia in ectatic tubuli remained in a differentiated phenotype corresponding to the respective tubular segment (Fig. 4, A and B).

Figure 2
figure 2

Variation of number and size of renal cysts in different AP-2β deficient mice. Hematoxylin-eosin staining of kidney sections from wild-type (A) and homozygous mutants (B to D) at Day 8 pn (magnification, ×16).

Full size image
Figure 3
figure 3

Immunostaining of proximal tubular epithelium and collecting-duct system. Tetragonolobus purpureus (A) and anti-aquaporin 2 (B) stainings (magnification, ×200). In situ hybridization of a 8 pn mouse kidney section with an AP-2β specific cDNA probe revealing specific expression pattern in distal tubular and collecting duct epithelium (C) (magnification, ×25).

Full size image
Figure 4
figure 4

Ultrastructure of ectatic tubuli and renal cysts in AP-2β deficient mice. Ultrastructurally, epithelia in ectatic tubuli remained in a differentiated columnar phenotype (A) whereas the cyst lining epithelia showed a very flat dedifferentiated phenotype (B).

Full size image

In contrast with the phenotype of other cystic kidney diseases, in particular ADPKD, glomerular cysts were not observed. On the basis of examination by light microscopy and electron microscopy, the glomerular architecture was entirely normal (data not shown).

Defective Ion Homeostasis in AP-2β Deficient Mice

Because the degree of cyst formation differed significantly in AP-2β mutant mice and did not correlate with longer survival, we assessed kidney function by measuring a number of different serum parameters in 6- to 10-day mutants and controls. Whole blood was isolated by heart puncture and ion, urea, glucose, and protein concentrations were determined from serum. As summarized in Table 1, ion homeostasis was severely impaired. Serum calcium levels were significantly decreased and caused the nervous and trembling behavior of mutant animals. Indeed, tetanic cramps were easily provoked, even by relatively mild manual manipulations, and eventually the animals died between Days 10 and 14 from cardiac arrest. In addition, increased urea, creatinine, and inorganic phosphate concentrations indicated functional tubular defects. Normal serum protein levels in AP-2β deficient mice suggested undisturbed glomerular filtration of primary urine consistent with the normal histologic and ultrastructural morphology of glomeruli.

Table 1 Summary of Serum Ion and Metabolite Measurements
Full size table

Because serum calcium concentration is strongly dependent on regulation by parathyroid hormone (PTH) and vitamin D, we analyzed the production of these hormones in AP-2β deficient animals. On the basis of the observation that AP-2β is expressed in branchial arches that give rise to the parathyroid glands and the fact that other mutant mouse strains with developmental defects leading to parathyroid gland agenesis have been identified (Gunther et al, 2000; Peters et al, 1998), we explored the possibility that hypocalcemia resulted from a failure to develop parathyroidal glands. Therefore, we prepared the throat region of AP-2β knockout mice and studied the morphology of parathyroidal glands on serial tissue sections. As shown in Figure 5, A, B, D, and E, AP-2β mutants developed parathyroidal glands that appeared slightly hyperplastic and expressed large amounts of PTH. Furthermore, the gene of a calcium sensing receptor protein involved in the regulation of PTH vesicle secretion was equally expressed in both mutant and wild-type parathyroidal glands, indicating that AP-2β mutant animals developed functional parathyroidal glands. This observation was further strengthened by quantitation of vitamin D and PTH serum levels. Using a quantitative radioimmunoassay for the active form of vitamin D (1,25-OH2 vitamin D) and PTH, we measured a significant increase in PTH serum concentration, indicating a physiologic response to the low serum calcium levels and also a slight increase in vitamin D concentration (Fig. 6).

Figure 5
figure 5

AP-2β deficient animals develop functional parathyroid glands. In situ hybridization with specific probes for parathyroid hormone (PTH) (A, D) and calcium sensing receptor protein (CasR) (B, E) on wild-type (A, B) and AP-2β deficient mouse sections of the throat region. (C, F) Hematoxylin-eosin stainings of B and E, respectively (magnification, ×25).

Full size image
Figure 6
figure 6

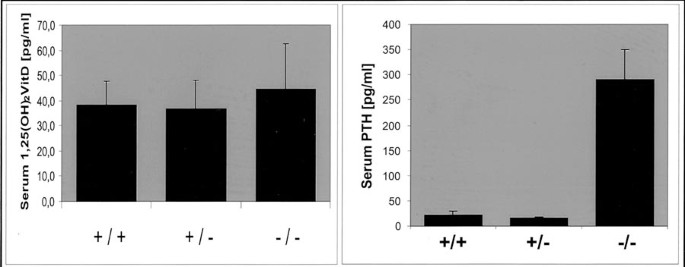

AP-2β deficient animals develop secondary renal hyperparathyroidism. Radioimmunoassays were used to measure serum levels of 1,25(OH)2 vitamin D and PTH in wild-type (+/+), heterozygous (+/-), and AP-2β knockout mice (-/-).

Full size image

In summary, the renal histology, the disturbance of ion homeostasis, and the subsequent increase in PTH serum concentrations indicated development of secondary renal hyperparathyroidism in AP-2β deficient mice.

Defects of Distal Tubular Epithelium and Collecting Duct System Results in Kidney Failure

To test the capacity of the kidney to concentrate urine, bladder aspirates were collected from wild-type, heterozygous, and mutant animals to measure osmolarity. A decrease in urine osmolarity in AP-2β mutant mice as compared with controls indicated a failure in water retention and suggested that the renal water resorption in the distal tubular structures and in the collecting duct system was impaired (Fig. 7A). In addition, urinary calcium concentration was reduced in knockout mice as compared with wild-type controls, indicating that AP-2β deficient mice lose water, and thereby essential ions, by way of defective renal tubular epithelium (Fig. 7B). This observation corresponded with the dehydrated condition of the mutant animals and their dry and scaly skin.

Figure 7
figure 7

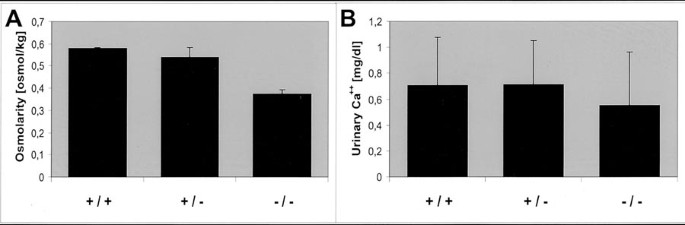

Defects in water retention results in kidney failure. Urinary osmolarity (A) and Ca2+ concentration (B) in urine of wild-type (+/+), heterozygous (+/-), and AP-2β knockout mice (-/-) indicated impaired water resorption.

Full size image

Discussion

Knockout studies unraveled essential functions of AP-2 transcription factors during embryonic development. Although AP-2 genes encode for highly homologous proteins, which are expressed at overlapping expression patterns in many embryonic tissues, the phenotypes of AP-2α, AP-2β, and AP-2γ mice are surprisingly different (Aumann et al, 2002; Moser et al, 1997a; Schorle et al, 1996; Werling and Schorle, 2002; Zhang et al, 1996). We showed previously that inactivation of the transcription factor AP-2β in a genetically mixed C57BL/6/129S1 mouse strain resulted in perinatal lethality as a consequence of massively enhanced apoptotic death of renal epithelial cells (Moser et al, 1997a). So far, other AP-2 genes have not been implicated in kidney function.

In this study, the AP-2β mutation was bred onto the 129P2 background, resulting in significant attenuation of the phenotype and allowing for the first time for a detailed analysis of the defects seen in the kidneys. Obviously, the phenotype is attenuated by modifier genes, and therefore a significant portion of the mice survive 2 weeks after birth. Interestingly, a modification of the phenotype has also been described for the AP-2α mutation, where a significant portion of heterozygous animals suffers from exencephaly when bred onto the 129P2 background (Kohlbecker et al, 2002). These findings suggest a more general role of AP-2 gene dosage because a slight deregulation might result in morphologic deficiencies.

Our data indicate that AP-2β gene activity is redundant in most AP-2β expressing tissues (peripheral and central nervous system, neural crest cell derivatives) except for kidneys. We have detected previously that AP-2β is the only member of the AP-2 genes that is expressed specifically during renal tubulogenesis, in particular in distal tubular and collecting duct epithelia (Chazaud et al, 1996; Moser et al, 1997b). Here, AP-2β deficiency cannot be compensated for through the action of other AP-2 family members.

Interestingly, data presented in this study clearly show that death of AP-2β deficient mice occurs independently of the number and size of cyst formation. Rather, AP-2β expression seems to be essential for maintaining functions of tubular and collecting duct epithelia in secretion of metabolites and water and ion homeostasis. Even animals without significant cyst formation develop renal failure and die within 2 weeks from massive hypocalcemia. Thus, our analyses point to a novel function of AP-2β in kidney metabolism and should trigger further studies of AP-2β expression in kidney diseases that involve tubular or collecting duct epithelia.

Materials and Methods

Histologic Analysis and Immunohistochemistry

Tissues were dissected from wild-type, heterozygous, and mutant animals at days 6 to 10 postnatal, fixed in 4% paraformaldehyde/PBS overnight and embedded in paraffin. Five micrometer tissue sections were stained with hematoxylin-eosin and used for immunohistochemistry or in situ hybridization.

Immunohistochemistry was performed as described in detail previously (Bosserhoff et al, 1999). Anti-aquaporin–2 antiserum (a generous gift from Dr. Aitner, Department of Internal Medicine II, RWTH Aachen, Germany) was incubated as a 1:100 dilution overnight and reacted with a secondary antirat antibody (DAKO, Hamburg, Germany) conjugated with horseradish peroxidase for 2 hours at room temperature, and then finally stained with diaminobenzidine (Sigma, Deisenhofen, Germany). HRP-conjugated lectin Tetragonolobus purpureus (Sigma) was diluted at 1:100, incubated for 2 hours at room temperature, and visualized with the substrates provided by the LSAB2-Kit (DAKO).

In Situ Hybridization

In situ hybridization was performed as described previously (Moser et al, 1995) using 33P-labeled sense and antisense cRNA riboprobes for parathyroid hormone, AP-2β, and calcium sensing receptor protein. Proteinase K pretreated slides (10 μg/ml) were acetylated in acetic anhydride diluted 1:400 in 0.1 M triethanolamine (pH 8) and hybridized at 50° C overnight in 50% formamide, 10% dextran sulfate, 10 mm Tris (pH 8), 10 mm NaPi (pH 7), 2xSSC, 5 mm EDTA (pH 8), 150 μg/ml tRNA, 10 mm DTT, and 10 mm β-mercaptoethanol supplemented with 5 × 104 cpm/μl of 33P-labeled sense or antisense riboprobes. The slides were washed twice in 50% formamide/2x SSC/20 mm β-mercaptoethanol, digested with RNase A (20 μg/ml) for 30 minutes at 37° C, and finally washed three times for 30 minutes at 50° C with the same washing buffer. After dehydrating, the slides were coated with Kodak NTB2 emulsion (Kodak, Rochester, New York) and exposed for 4 to 10 days. In situ hybridization was performed from tissues of four different animals of each genotype.

Determination of Serum and Urine Parameters

Whole blood was obtained by heart puncture from 6- to 10-day-old mice, and the serum was recovered after coagulation by centrifugation at 6000 rpm for 5 minutes. Urea, creatinine, ions, glucose, and protein concentrations were measured by an autoanalyzer (Johnson and Johnson, Neckarsgemünd, Germany). To determine PTH and 1,25(OH)2 vitamin D levels, both hormones were measured using radioimmunoassays against rat PTH or 1,25(OH)2 vitamin D (Meyer et al, 1996) (Immutopics, San Clemente, California). For both tests, sera from six knockout mice were pooled to obtain the required test volume of 100 μl. The assays were performed following the manufacturer’s instructions except that serum was diluted 1:1 with the supplied 0 standard.

For urine analyses, bladder aspiration was performed. Determination of urine osmolarity was measured in 50 μl of pooled urine from wild-type, heterozygous, and AP-2β knockout mice. Total urine calcium levels were measured by a commercially available assay (Sigma) using the o-cresolphthalein-complexone method.

All serum and urine parameters shown in Table 1, and Figures 5 to 7 represent mean values derived from multiple individuals of each genotype. Depending on availability, between 16 and 54 samples were analyzed for each mean value.
