Renal cell neoplasms comprise several distinct clinicopathologic entities with therapeutic and prognostic differences.1, 2, 3, 4, 5 Oncocytomas are benign tumors and chromophobe renal cell carcinomas appear more frequently to be cured by surgery than clear cell and papillary renal cell carcinomas. A certain degree of morphologic overlap may exist among these neoplasms6 and the distinctive histopathological features cannot always be fully appreciated. This problem is expected to increase because of the more frequent use of needle biopsies to diagnose small renal masses.7 Immunohistochemical analysis is becoming more frequently useful to narrow the differential diagnosis or to arrive at a definitive diagnosis.8, 9, 10 Numerous immunohistochemical markers have been proposed for the subclassification of renal cell carcinomas, including ‘RCC marker’, CD10, and vimentin for clear cell renal cell carcinomas, c-kit for chromophobe renal cell carcinomas, and cytokeratin 7 and alpha-methyl-acyl-CoA racemase for papillary renal cell carcinomas.8, 9, 11, 12

Parvalbumin, a calcium-binding protein, has been demonstrated to be a useful marker in distinguishing oncocytoma and chromophobe renal cell carcinoma, from clear cell and papillary renal cell carcinomas.11, 12, 13, 14, 15 S100A1 is another calcium-binding protein of the EF-hand family, the mRNA for which has been recently found in renal cell neoplasms by RT-PCR analysis.16, 17, 18 In this study, we evaluated the expression and the diagnostic utility of S100A1 in a large series of renal cell neoplasms, using a monoclonal antibody, and compared both S100A1 protein and mRNA levels in oncocytomas, clear cell, papillary, and chromophobe renal cell carcinomas.

Materials and methods

One hundred sixty-four renal cell neoplasms were used for the immunohistochemical study, including 41 clear cell, 32 papillary, and 51 chromophobe renal cell carcinomas and 40 oncocytomas. All tumors were retrieved from the files of the Departments of Pathology of the Universities of Sassari and Verona, Italy. The diagnoses were reviewed according to the WHO 2004 Classification of Tumors of the Urinary System and Male Genital Organs,6 and clear and papillary renal cell carcinomas were graded according to the morphologic parameters proposed by Fuhrman et al.19 The resected specimens containing the tumors had been fixed with buffered formalin and paraffin-embedded. Hale's colloidal iron stain was performed on all of the tumors.

The immunohistochemical reaction with antibody to S100A1 was evaluated in all non-neoplastic kidney tissues from the kidneys bearing the tumors and in 13 fetal kidneys.

We also performed quantitative RT-PCR to detect S100A1 mRNA expression in four oncocytomas, and six chromophobe, seven clear cell and five papillary renal cell carcinomas and in nine frozen samples of normal kidney tissue, adjacent to renal neoplasms. These specimens were obtained from renal parenchyma adjacent to clear cell (six cases) and chromophobe renal cell carcinomas, and a renal oncocytoma.

Immunohistochemistry

For all formalin-fixed and paraffin-embedded tumors, serial 5 μm sections were stained with hematoxylin and eosin, with Hale's colloidal iron technique or immunostained with an antibody recognizing S100A1 protein (Monoclonal mouse Anti Human S100A1, Clone DAK 100A1/1; dilution 1:50, Lab Vision, Fremont, CA, USA). Immunoreactions were developed using a non-biotin, highly sensitive system (Envision peroxidase detection system, DAKO, Carpinteria, CA, USA) preventing possible false-positive staining owing to endogenous biotin present in the tissue.

S100A1 was evaluated as the percentage of positively stained neoplastic cells in a selected tumor section of each case of clear cell or papillary renal cell carcinoma and oncocytoma and in at least two different sections of tumor from each case of chromophobe renal cell carcinoma. The extent of immunoreactivity was categorized as focal (≤10% positively reacting neoplastic cells), moderate (from 10 to 50% positively reacting neoplastic cells), and diffuse (>50% positively reacting neoplastic cells). Cytoplasmic and/or nuclear staining was considered positive; S100A1 expression was considered negative in tumors completely lacking positive reactions.

External positive controls were provided by five samples of skeletal muscle, three samples of myocardium and 10 reactive lymph nodes.

Quantitative RT-PCR Analysis of mRNA Expression

Total RNA was extracted with the RNeasy Kit (QIAGEN, Valencia, CA, USA) from frozen tumor samples and, where available, from normal renal tissue as control.

Oligonucleotide primers were: S100A1, GATGCCCAGAAGGATGTGGAT and AGCCACAAGCACCACATAC; glyceraldehyde-3-phosphate dehydrogenase (GAPD) ATCATCAGCAATGCCTCCT and GGACTGTGGTCATGAGTCCT.

cDNA was synthesized from 1 μg of total RNA with the First Strand cDNA Synthesis Kit (AMV) (Roche Diagnostic, Mannheim, Germany).

Real-time analysis was performed on an ABI Prism 7000 SDS (Applied Biosystems, Foster City, CA, USA) using the SYBR Green PCR Master Mix (Applied Biosystems). Each assay included a no-template control and cDNA template equivalent to 20 ng of total RNA (in triplicate). The expression levels of S100A1 were calculated by relative quantification using GAPD transcript levels for normalization.

Data were analyzed as indicated in the User Bulletin no. 2 (Applied Biosystems).

Statistical Analysis

The Pearson χ2 analysis was used to compare S100A1 immunoexpression in clear cell vs chromophobe renal cell carcinomas and renal oncocytomas vs chromophobe renal cell carcinomas (significant value: P<0.05).

SigmaPlot Student's t-test was used to compare relative expression levels (fold-change) of S100A1 mRNA obtained by quantitative RT-PCR.

Results

Morphological Findings

Clear cell renal cell carcinomas showed nuclear grade 1 in six tumors, grade 2 in 11 tumors, grade 3 in 17 tumors, and grade 4 in seven cases. Papillary renal cell carcinomas showed nuclear grade 2 in 17 tumors and grade 3 in 15 tumors. Chromophobe renal cell carcinomas included 48 examples of the classic type (Figure 1a) and three of the eosinophilic variant. Oncocytomas displayed a solid-alveolar pattern (Figure 1b) in 38 cases and a tubulo-cystic pattern in two cases.

Figure 1
Figure 1
Full size image

Chromophobe renal cell carcinoma, classic type (a); renal oncocytoma (b); absence of S100A1 immunoexpression in chromophobe renal cell carcinoma (c); diffuse S100A1 expression in renal oncocytoma showing a moderate to strong cytoplasmic and nuclear immunostaining (d); S100A1 immunoreactivity in both nuclei and cytoplasm of the cells lining proximal tubules, Henle loops, and variable and focal stain in distal convoluted tubules. Glomerular components were negative (e); S100A1 expression in the proximal tubules of the normal fetal kidney (f).

All chromophobe renal cell carcinomas stained positively with Hale's colloidal iron, whereas there was no diffuse cytoplasmic staining in oncocytomas. Clear cell and papillary renal cell carcinomas showed only focal and dust-like granular or luminal and coarsely granular staining.

Immunohistochemical Findings

S100A1 immunostaining was observed in 30 of 41 clear cell renal cell carcinomas (73%); six showed focal positivity, whereas 24 displayed an immunoreactivity ranging from moderate (12 cases) to diffuse (12 cases) expression. Five of the 11 negative cases (45%) showed a tubulo-cystic growth pattern, whereas 21 out of 30 (70%) S100A1-positive clear cell renal cell carcinomas exhibited a solid-alveolar architecture. Antibody to S100A1 stained 21/24 (88%) high-grade (grade 3–4) vs 9/17 (52%) low-grade (grade 1–2) clear cell renal cell carcinomas.

S100A1 was detected immunohistochemically in 30 of 32 papillary renal cell carcinomas (94%), six showing focal, 12 moderate, and 12 diffuse immunoreactivity.

Forty-eight of the 51 chromophobe renal cell carcinomas (94%) showed no reaction with antibody to S100A1 (Figure 1c). Although we tested at least two different sections for each tumor, and up to five sections of larger neoplasms, these tumors did not show even focal S100A1 expression. Only three chromophobe renal cell carcinomas (6%) were positive, two classic variant showing scattered S100A1 immunoreactive cells and an eosinophilic variant with nucleo-cytoplasmic staining in about 40% of the neoplastic cells.

Thirty-seven of 40 renal oncocytomas (93%), including the two with the tubulo-cystic growth pattern, gave positive reactions with antibody to S100A1. Most of them showed both cytoplasmic and nuclear moderate to strong immunostaining (Figure 1d). Of the 37 positive tumors, four (11%) showed focal expression, 17 (46%) moderate expression, and 16 (43%) diffuse expression of S100A1. In the oncocytomas with a pattern of moderate expression the S100A1 staining showed an alternation between positive and negative areas in the same tumor. Further examination of additional sections of tumors from the negative cases confirmed the absence of even focal immunoreactivity.

We found significant differences in S100A1 immunoexpression between clear cell and chromophobe renal cell carcinomas (P<0.001) and between chromophobe renal cell carcinomas and oncocytomas (P<0.001).

S100A1 was detected in all the samples of non-neoplastic renal tissue from the kidneys harboring the tumors. The reactions were moderate to strong in both the nuclei and the cytoplasm of the cells lining proximal tubules, loops of Henle, and collecting ducts. Variable and focal immunostaining was also seen in the cells lining distal convoluted tubules and in Bowman's capsules. The other glomerular components were negative (Figure 1e).

S100A1 was expressed in normal fetal kidney, staining exclusively proximal tubules in all the 13 cases (Figure 1f).

Immunohistochemical S100A1 expression data are summarized in Table 1.

Table 1 S100A1 immunoexpression in renal cell neoplasms
Full size table

External positive controls showed diffuse immunoreactivity in all skeletal muscle and myocardium tissues and specific cytoplasmic immunostain in follicular dendritic cells of reactive lymph node specimens.

Quantitative RT-PCR Analysis of mRNA Expression

S100A1 mRNA was detected in all nine normal kidneys and 22 renal epithelial neoplasms, although at very different levels (Figure 2). Tumor samples were compared considering the expression levels of normal kidney as baseline. Using this reference, clear cell renal cell carcinomas expressed 2.9-fold less S100A1 mRNA than normal kidney, chromophobe renal cell carcinomas 7.8-fold less than reference, oncocytomas 1.4-fold more than reference, papillary renal cell carcinomas sixfold more than reference. The cycle threshold differences (ΔCt) between the reference gene (GAPD) and the test gene (S100A1) were much lower for chromophobe renal cell carcinomas (range −2.13 to −0.3) than for oncocytomas (range 1.08–3.09) and normal kidneys (range 0.8–2.36). These values are indicative of RNA levels of S100A1 that are on average 11.47-fold higher (range 2.14- to 37.27-fold) in oncocytomas than in chromophobe renal cell carcinomas.

Figure 2
Figure 2
Full size image

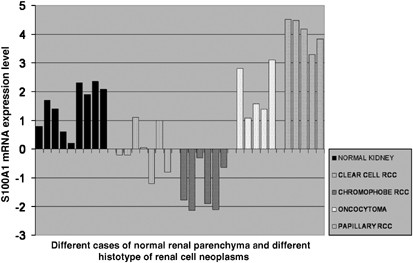

S100A1 mRNA expression levels in normal renal parenchyma and different types of renal cell neoplasms: levels were detected in all nine normal kidneys and 22 renal epithelial neoplasms, although at very different levels. Focus that mRNA levels of S100A1 are on average 11.47-fold higher (range 2.14- to 37.27-fold) in oncocytomas than in chromophobe renal cell carcinomas.

Clear cell renal cell carcinomas overexpressed S100A1 mRNA in comparison with chromophobe renal cell carcinomas (P<0.001). Comparison between chromophobe renal cell carcinomas and oncocytomas showed that oncocytomas expressed on average 11 times more S100A1 mRNA than chromophobe renal cell carcinomas. These differences were highly significant (P<0.001).

Normal kidneys showed RNA levels on average 7.78-fold higher than chromophobe renal cell carcinomas.

All nine samples of normal renal parenchyma, five papillary renal cell carcinomas, and five renal oncocytomas with both immunohistochemical and quantitative RT-PCR analyses showed agreement between the high levels of S100A1 mRNA and detection of the protein by immunohistochemistry. All six chromophobe renal cell carcinomas with low levels of S100 mRNA expression did not contain immunohistochemically detectable S100A1. The clear cell renal cell carcinomas with low level (five cases) and high level (2 cases) mRNA expression had immunohistochemically detectable S100A1.

Discussion

Current options for the treatment of renal cell neoplasms include radical nephrectomy, nephron-sparing surgery, and minimally invasive approaches such as cryo- and radiofrequency ablation.20, 21, 22, 23, 24 In the context of a surgical sparing approach, a preoperative diagnosis by needle-core biopsy is needed to guide management decisions.7, 10, 25 However, the diagnostically specific morphological features of tumors may not be appreciable in small samples and immunohistochemical analysis may be needed to support a definitive diagnosis.8, 9

Among calcium-binding proteins, the diagnostic utility of parvalbumin has already been demonstrated in distinguishing oncocytoma and chromophobe renal cell carcinoma from clear cell and papillary renal cell carcinomas.11, 15 Another calcium-binding protein, S100A1, has been recently found in renal cell neoplasms. This protein is a member of the S100 family, the largest subgroup of the EF-hand proteins, which consists of several members that display amino-acid sequence homology ranging from 25 to 65%.26 Thirteen of their genes are clustered on the chromosome 1q21, whereas the others are located on different chromosomes.27 Recent investigations have emphasized the potential diagnostic and oncogenetic role of S100 proteins in a variety of tumors.28, 29, 30, 31, 32, 33, 34

In this study, we found that S100A1 protein is expressed in renal oncocytomas, and in clear cell and papillary renal cell carcinomas but not in chromophobe renal cell carcinomas. We found significant statistical differences between S100A1 immunoexpression in clear cell and chromophobe renal cell carcinomas (P<0.001), which suggests that S100A1 could be a useful tool in their differential diagnosis. Most papillary renal cell carcinomas stained with S100A1 and constantly showed high levels of S100A1 mRNA expression.

The potential utility of S100A1 immunodetection is strongest in the differential diagnosis between chromophobe renal cell carcinoma and oncocytoma. Ninety-four percent of chromophobe renal cell carcinomas were immunohistochemically negative for S100A1, whereas 93% of the oncocytomas, including both tumors with the tubulo-cystic pattern, were positive with most of them showing moderate to strong immunostaining.

The three chromophobe renal cell carcinomas with neoplastic cells reacting positively for S100A1 antibody also stained positively with Hale's colloidal iron stain.

Among the oncocytomas studied by quantitative RT-PCR analysis, the tumor with the lowest level of S100A1 mRNA expression was one of the three oncocytomas negative for S100A1 by immunohistochemistry. This parallels the observation that chromophobe renal cell carcinoma, in which the level of S100A1 mRNA expression is extremely low, showed immunohistochemical negativity for S100A1. Lin et al17 reported the immunohistochemical detection of S100 protein in 87% (13/15) of oncocytomas, with strong and diffuse staining in 60% of cases, whereas only one (6%) of 16 chromophobe renal cell carcinomas showed focal positivity. They used a rabbit polyclonal antibody for S100 protein that has been shown to react with both human and cow S100 protein, with a stronger reaction to S100B, but a weak reaction to S100A1 and S100A6.17 In our study, we used a monoclonal mouse antihuman antibody specifically recognizing S100A1 protein.

In our study, S100A1 mRNA was detected in all 22 renal cell neoplasms by quantitative RT-PCR analysis, although at very different levels. These differences were significant (P<0.001). Li et al18 reported an high percentage of S100A1 gene expression profile by RT-PCR in papillary renal cell carcinomas (11/15, 73%), in renal oncocytomas (7/8, 87%) but a low percentage was found in clear cell renal cell carcinomas (2/15, 13%) and negative expression in chromophobe renal cell carcinomas (0/7, 0%). Lin et al studied the S100A1 mRNA expression measured by microarray gene profiling in 14 renal oncocytomas and 14 chromophobe renal cell carcinomas. Comparison between chromophobe renal cell carcinomas and oncocytomas showed that oncocytoma expressed on average 11 times more S100A1 mRNA than chromophobe renal cell carcinomas.17

Wide variation of mRNA expression for clear cell renal cell carcinomas may be due to the more heterogeneity of these renal neoplasms.

Renal parenchyma from the kidneys bearing the tumors always displayed cytoplasmic and/or a nuclear immunostaining for S100A1 in the cells lining proximal tubules, loops of Henle, collecting ducts, and Bowman's capsule, whereas S100A1 was selectively expressed in the proximal tubules of the normal fetal parenchyma of the kidney. According with the finding of S100A1 immunoexpression in normal parenchyma of adult kidney, quantitative RT-PCR analysis showed the presence of specific S100A1 mRNA in frozen samples of non-neoplastic adult renal tissue in all nine tested cases. These results are in agreement with those obtained by Lin et al17 but in contrast with those by Teratani et al16 and Li et al.18 The absence of S100A1 mRNA detection reported by Teratani et al16 is probably due to some differences in the primer,16 whereas we cannot comment on the results of Li et al because the sequence of the primer was not reported in that study.

In conclusion, we evaluated the expression of S100A1 in renal cell neoplasms with an immunohistochemical study, and verified our results by a quantitative RT-PCR analysis and demonstrated the potential usefulness of the monoclonal antihuman S100A1 antibody in the differential diagnosis among renal cell neoplasms, particularly in the differential diagnosis of chromophobe renal cell carcinoma vs renal oncocytoma.
