Charge fluctuations in YBa2Cu3O7-x high-temperature superconductors

Nature volume 401, pages 145–148 (1999)Cite this article

Abstract

Understanding the behaviour of the electrons in the high-temperature copper oxide superconductors remains a challenging problem. An important class of models1,2,3,4,5 argues that the distribution of electronic charge and spin is not homogeneous: rather, spin and charge adopt a dynamic arrangement in which the spins on the copper form antiferromagnetic stripes, separated by domain walls containing the charge1,2,3,4,5. The dynamic behaviour of the spins has been extensively studied by neutron scattering, and recent results6 have shown that the low-frequency fluctuations for different classes of materials display a universal spatial behaviour that is consistent with the stripe picture. But arguments for the existence of the stripe phases are difficult to sustain without a demonstration that charge is distributed in the domain walls. Here we report phonon measurements for the YBa2Cu3O7-x high-temperature superconductors, which reveal the presence of charge fluctuations. The inferred periodicity is that expected if the charge is located in the domain walls separating the spin stripes. Our results therefore provide strong support for the existence of a dynamic stripe phase in the high-temperature superconductors.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

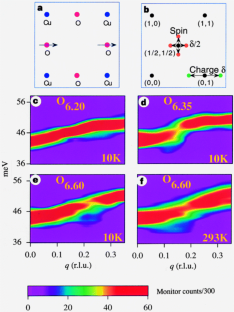

Figure 1: Phonon-intensity measurements for the 〈B2uB3u〉 planar oxygen mode in YBCO7-x for three oxygen compositions.
Figure 2: Energy scans (meV) obtained at values of q where substantial phonon broadening occurs in YBCO6.35 and YBCO6.60.
Figure 3: Phonon line-widths obtained from the least-squares fits of the phonon intensity I(ω) convoluted with the spectrometer resolution.

Similar content being viewed by others

References

  1. Schulz,H. J. Domain walls in a doped antiferromagnet. J. Phys. (Paris) 50, 2833–2849 (1989).

    Article  CAS  Google Scholar

  2. Zaanen,J. & Gunnarson,O. Charged magnetic domain lines and the magnetism of high-T c oxides. Phys. Rev. B 40, 7391–7394 (1989).

    Article  ADS  CAS  Google Scholar

  3. Poilblanc,D. & Rice,T. M. Charged solitons in the Hartree-Fock approximation to the large-U Hubbard model. Phys. Rev. B 39, 9749–9752 (1989).

    Article  ADS  CAS  Google Scholar

  4. Kivelson,S. A. & Emery,V. J. in Strongly Correlated Electronic Materials: The Los Alamos Symposium 1993 (eds Bedell, K. S. et al.) 619–656 (Addison-Wesley, Maine, 1994).

    Google Scholar

  5. Emery,V. J. & Kivelson,S. A. Collective charge transport in high-temperature superconductors. Physica C 235–240, 189–192 (1994).

    Article  ADS  Google Scholar

  6. Mook,H. A. et al. Spin fluctuations in YBa2Cu3O6.6. Nature 395, 580–582 (1998).

    Article  ADS  CAS  Google Scholar

  7. Vaknin,D. et al. Antiferromagnetism in La2CuO4-y. Phys. Rev. Lett. 58, 2802–2805 (1987).

    Article  ADS  CAS  PubMed  Google Scholar

  8. Tranquada,J. M. et al. Neutron-diffraction determination of antiferromagnetic structure of Cu ions in YBa2Cu3O6+x with x = 0.0 and 0.15. Phys. Rev. Lett. 60, 156–159 (1988).

    Article  ADS  CAS  PubMed  Google Scholar

  9. Cheong, S.-W. et al. Incommensurate magnetic fluctuations in La2-xSrxCuO4. Phys. Rev. Lett. 67, 1791–1794 (1991).

    Article  ADS  Google Scholar

  10. Mason,T. E., Aeppli,G. & Mook,H. A. Magnetic dynamics of superconducting La1.86Sr0.14CuO4. Phys. Rev. Lett. 68, 1414–1417 (1992).

    Article  ADS  CAS  PubMed  Google Scholar

  11. Thurston,T. R. et al. Low-energy incommensurate spin excitations in superconducting La1.85Sr0.15CuO4. Phys. Rev. B 46, 9128–9131 (1992).

    Article  ADS  CAS  Google Scholar

  12. Yamada,K. et al. Doping dependence of the spatially modulated dynamical spin correlations and the superconducting-transition temperature in La2-xSrxCuO4. Phys. Rev. B 57, 6165–6172 (1998).

    Article  ADS  CAS  Google Scholar

  13. Bulut,N., Hone,D., Scalapino,D. J. & Bickers,N. E. Random-phase approximation analysis of NMR and neutron-scattering experiments on layered cuprates. Phys. Rev. Lett. 64, 2723–2726 (1990).

    Article  ADS  CAS  PubMed  Google Scholar

  14. Lu,J. P., Si,Q., Kim,J. H. & Levin,K. NMR relaxation and neutron scattering in a Fermi-liquid picture of the metallic copper oxides. Phys. Rev. Lett. 65, 2466–2469 (1990).

    Article  ADS  CAS  PubMed  Google Scholar

  15. Littlewood,P. B., Zaanen,J., Aeppli,G. & Monien,H. Spin fluctuations in a two-dimensional marginal Fermi liquid. Phys. Rev. B 48, 487–498 (1993).

    Article  ADS  CAS  Google Scholar

  16. Tranquada,J. M., Sternlieb,B. J., Axe,J. D., Nakamura,Y. & Uchida,S. Evidence for stripe correlations of spins and holes in copper oxide superconductors. Nature 375, 561–563 (1995).

    Article  ADS  Google Scholar

  17. Tranquada,J. M. et al. Neutron-scattering study of stripe-phase order of holes and spins in La1.48Nd0.4Sr0.12CuO4. Phys. Rev. B 54, 7489–7499 (1996).

    Article  ADS  CAS  Google Scholar

  18. Hirota,K., Yamada,K., Tanaka,I. & Kojima,H. Quasi-elastic incommensurate peaks in La2-xSrxCu1-yZnyO4-δ. Physica B 241/243, 817–819 (1998).

    Article  ADS  Google Scholar

  19. Lee,Y. S. et al. Neutron scattering study of spin density wave order in the superconducting state of excess-oxygen-doped La2CuO4+y. Phys. Rev. B (in the press).

  20. Zimmerman,M. V. et al. Hard X-ray diffraction study of charge stripe order in La1.48Nd0.4Sr0.12CuO4. Europhys. Lett. 41, 629–634 (1998).

    Article  ADS  Google Scholar

  21. Tranquada,J. M., Buttery,D. J. & Sachan,V. Incommensurate stripe order in La2-xSrxNiO4 with x = 0.225. Phys. Rev. B 54, 12318–12323 (1996).

    Article  ADS  CAS  Google Scholar

  22. Moncton,D. E., Axe,J. D. & DiSalvo,F. J. Neutron scattering study of the charge-density wave transitions in 2 H-TaSe2 and 2 H-NbSe2. Phys. Rev. B 16, 801–819 (1977).

    Article  ADS  CAS  Google Scholar

  23. Pintschovius,L. & Reichardt,W. in Physical Properties of High-Temperature Superconductors IV (ed. Ginsberg, D. M.) 295–372 (World Scientific, Singapore, 1993).

    Google Scholar

  24. Reichardt,W. Cu-O bond-stretching vibrations in YBa2Cu3O7 studied by inelastic neutron scattering. J. Low Temp. Phys. 105, 807–812 (1996).

    Article  ADS  CAS  Google Scholar

  25. Reznik,D., Keimer,B., Doğan,F. & Askay,I. A. q-Dependence of self-energy effects of the plane oxygen vibration in YBa2Cu3O7. Phys. Rev. Lett. 75, 2396–2399 (1995).

    Article  ADS  CAS  Google Scholar

  26. Pyka,N. et al. Superconductivity-induced phonon softening in YBa2Cu3O7 observed by inelastic neutron scattering. Phys. Rev. Lett. 70, 1457–1460 (1993).

    Article  ADS  CAS  PubMed  Google Scholar

  27. McQueeney,R. J. et al. Anomalous dispersion of LO phonons in La1.85Sr0.15CuO4 at low temperatures. Phys. Rev. Lett. 82, 628–631 (1999).

    Article  ADS  CAS  Google Scholar

  28. Zachar,O., Kivelson,S. A. & Emery,V. J. Landau theory of stripe phases in cuprates and nickelates. Phys. Rev. B 57, 1422–1426 (1998).

    Article  ADS  CAS  Google Scholar

  29. Dai,P., Mook,H. A. & Doğan,F. Incommensurate magnetic fluctuations in YBa2Cu3O6.6. Phys. Rev. Lett. 80, 1738–1741 (1998).

    Article  ADS  CAS  Google Scholar

Download references

Acknowledgements

We thank W.-T. Lee and J. L. Robertson for discussions on phonon dispersion in striped phases, and P. Dai for discussions on magnetic excitations. The work at Oak Ridge was supported by the US Department of Energy.

Author information

Authors and Affiliations

  1. Oak Ridge National Laboratory, Oak Ridge, Tennessee, 37831-6393, USA

    H. A. Mook

  2. Department of Materials Sciences and Engineering, University of Washington, Seattle, 98195, Washington, USA

    F. Doğan

Authors
  1. H. A. Mook
    View author publications

    Search author on:PubMed Google Scholar

  2. F. Doğan
    View author publications

    Search author on:PubMed Google Scholar

Corresponding author

Correspondence to H. A. Mook.

Rights and permissions

Reprints and permissions

About this article

Cite this article

Mook, H., Doğan, F. Charge fluctuations in YBa2Cu3O7-x high-temperature superconductors. Nature 401, 145–148 (1999). https://doi.org/10.1038/43629
