Introduction

The marker-based estimation of plant mating systems dates from the seminal studies of Jones (1916) and Fyfe and Bailey (1951). Their studies relied upon the pattern of genetic transmission from parents to progeny as shown by genetic markers. This pattern can be used to infer retrospectively the mating system (Clegg, 1980). Retrospective studies of plant mating systems have become a mainstay of plant population studies (Barrett and Eckert, 1990).

Plant mating systems are often described by the ‘mixed mating model’, where a fraction of progeny are derived from self-fertilization and the remainder derived from outcrossing at random. Many improvements and elaborations of the original mixed mating model have been made. Brown and Allard (1970) have shown how maternal parentage could be inferred from progeny arrays, whilst Shaw et al (1980) and Ritland and Jain (1981) introduced multilocus procedures for estimation of outcrossing. Compared with single-locus methods, multilocus methods have lower statistical variance and higher robustness against the violation of model assumptions (Ritland and Jain, 1981), whilst comparisons of single with multilocus estimates indicate levels of mating between relatives (Shaw et al, 1980).

With advances in both marker methods and statistical inference, more detailed facets of mating systems, such as patterns of paternity and dispersal, have been modeled and inferred (Cruzan, 1998). For example, while usually progeny from common mothers are assumed to be constant mixtures of half-sibs and selfed progeny, it may be assumed progenies are full-sibs (Schoen and Clegg, 1984). And, whilst most studies have estimated selfing rates as population averages, we should remember that mating systems are dynamic quantities subject to environmental effects and may differ among individuals within populations. To this end, estimation procedures for outcrossing rates of individual plants have been developed (Cruzan and Arnold, 1994; Ivey and Wyatt, 1999).

Here, I provide four extensions of current estimation procedures along these lines. (1) Multiallelic probabilities for the probability of offspring genotype, given parent genotype, are defined for the mixed mating model. They are based on the Kronecker operator, which was used to describe estimators for coefficients of relatedness (Ritland, 2000). Expressions are first developed for the case where the gametophyte is assayed (as in conifers), then extended to the angiosperm case (or to animals, such as partially selfing snails). These probabilities accommodate the large numbers of alleles typical of highly informative microsatellite loci. (2) Multilocus formulae are then given for the correlated-matings model (Ritland, 1989), a model which characterizes shared paternity among family members. Multilocus estimation of correlated matings gives estimates of lower statistical variance than the single-locus estimates as used by Ritland (1989). Interestingly, the difference between single-locus vs multilocus estimates of correlated-matings can provide a new measure of population substructure. (3) Two ways of characterizing biparental inbreeding are introduced, both based upon the phenomena that under biparental inbreeding, the multilocus selfing rate depends upon the number of loci, decreasing with greater number of loci. These two ways involve: (3a) differences between one-locus, two-locus, and three-locus selfing rates and (3b) the correlation of selfing of locus-pairs within individuals. The correlation of selfing among loci approximates the fraction of selfing caused by uniparental (as opposed to biparental) inbreeding. (4) ‘Method-of-moments estimators’ (MMEs) of individual outcrossing rates are derived. These are analogous to MMEs for relatedness as derived in Ritland (1996), and are of use in fine-scale studies of mating systems, as they are unbiased at small sample sizes when pollen gene frequency is not jointly estimated. Statistical properties of each extension are discussed. These methods are implemented in a new estimation program, ‘MLTR’.

Extensions of mating system models

The probability model underlying multilocus estimation of mating system assumes n unlinked loci. In the mixed-mating model, progeny are either selfed or randomly outcrossed. Outcrossing also occurs at random to a pollen pool at linkage equilibrium. The effect of these assumptions has been examined in the case of pollen pool heterogeneity (Smyth and Hamrick, 1984) and linkage (Hedrick and Ritland, 1990).

Estimates of selfing rate are found by maximizing the likelihood of the data with respect to selfing rate (and pollen gene frequencies, if also estimated), using numerical methods such as Newton-Raphson or the expectation-maximization (EM) method (Cheliak et al, 1983). Maternal parentage can be inferred by computing likelihoods of entire progeny arrays across possible maternal genotypes, and choosing the parent genotype giving the highest likelihood; however this requires assuming either that families are full sibs (Schoen and Clegg, 1984) or half-sibs (Brown and Allard, 1970). Errors of estimates can be found with the bootstrap method, where entire progeny arrays are resampled (Ritland, 1990).

Multiallelic probabilities based upon the Kronecker operator

Previously, probabilities of offspring under the multilocus mixed mating model of Ritland and Jain (1981), as well as the correlated-mating model of Ritland (1989), were given for only diallelic loci, and computer programs (Ritland, 1990) were written for at most three alleles. This is a hindrance when markers are highly polymorphic, such as microsatellites. Furthermore, the ‘conifer’ model (when the haploid maternal contribution to the zygote can be assayed) has been separately treated from the usual ‘angiosperm’ model (Ritland and El-Kassaby, 1985). Yet, the latter model can be derived as a mixture model of the former, and illustrates how models for incomplete data are formed.

Multiallelic probabilities are best represented by the ‘Kronecker operator’, δ. This operator allowed compact expression for estimators of pairwise relatedness (Ritland, 2000). For mixed-mating probabilities, first consider a single-locus. The Kronecker operator is defined such that if two alleles Ai and Aj are the same (eg, the same band or sequence), then δij = 1, while if different, δij = 0. Now, for any progeny allele k, define

which is the probability that allele k is transmitted to the progeny, given parent AiAj. This expression will be the backbone of the formulae that follow.

Gametophyte-known (conifer):

In the gametophyte-known case, progeny alleles can be assigned to eggs vs pollen. Let allele k in the progeny be the megagametophyte (derived from the mother) so that allele l is derived via pollen (note that k > l is possible). Let Pij,skl be the probability of observing progeny genotype AkAl given that the parent is AiAj and self-fertilizes, and let Pijkl be the probability of observing progeny AkAl given the parent is AiAj and outcrosses (s denotes selfing, t denotes outcrossing). Then,

where the frequency of alleles in the population is indicated by subscripted p. Pij,skl assumes regular segregation in both sexes and random fusion of gametes. Pij,tkl assumes that the probability of encountering allele l in the pollen is simply the frequency of l in the population, pl; thus outcrossing is assumed to occur to a homogenous pollen pool.

Gametophyte-unknown (angiosperm):

In this case, progeny alleles cannot be assigned to parents by sex. Reflecting the ‘incomplete’ nature of the data, the probability of an outcrossed progeny genotype is the arithmetic average of the probabilities of the two alternative paternal alleles, k and l. As now k ≤ l always, the heterozygote probability is multiplied by 2, and any probability is multiplied by (2 − δkl). The probabilities of progeny, conditioned on selfing versus outcrossing, are thus

Multilocus probability of offspring:

If s is the rate of selfing, and t = 1 − s is the rate of outcrossing, the multilocus likelihood of an offspring is:

(subscripts denoting loci are omitted for brevity). These probabilities are then incorporated into procedures for estimating selfing via progeny arrays. While these and the following formulae assume that maternal parentage is known, these formulae are readily incorporated into procedures that infer maternal parentage from the progeny array genotypes (eg, Brown and Allard, 1970). Statistical tests that can be used for such indirect estimation of mating system parameters include construction of confidence intervals via inversion of the information matrix (Ritland and Jain, 1981) or bootstrapping (Ritland, 1990), or performing a likelihood ratio test (comparing the likelihood of estimated values with the likelihood under their null (zero) values).

Multilocus correlated-matings model

Besides the selfing rate, an aspect of mating system is the degree that siblings share the same male parent. This is the outcome of pollination syndrome or population structure, and has implications for the effectiveness of certain types of natural selection. To characterize this sharing of parentage, Ritland (1989) introduced the ‘correlated- matings model’. This model treats a pair of progeny as the unit of observation. For mixed-mating populations, it has two parameters: the ‘correlation of paternity’, rp, which is the probability that the two siblings are outcrossed full-sibs, and the ‘correlation of selfing’, rs, between two members of a family (or the normalized variance of selfing rate among families).

In Ritland (1989), the probabilities of progeny under the correlated-matings model were defined in terms of a single, diallelic locus. Here, multiallelic, multilocus probabilities are given. Allowing for any number of alleles allows markers with greater statistical power (eg, microsatellites). More interestingly, comparison of single versus multilocus estimates of correlated matings (and not just selfing), provides a new measure of population substructure.

Let the two members of the progeny pair be AkAl and AmAn, and the maternally-derived alleles be Ak and Am. The maternal parent alleles are Ai and Aj (k equals either i or j, as does l). A pair of progeny can be: (1) both selfed (‘ss’); (2) the first selfed and the second outcrossed (‘st’); (3) the first outcrossed and the second selfed (‘ts’); (4) both outcrossed to the same male (‘t’); or (5) both outcrossed to different males (‘tt’). Denote the probabilities of progeny pairs conditioned upon these five possibilities as Pij,sskl,mn, Pij,stkl,mn, Pij,tskl,mn, Pij,tkl,mn and Pij,ttkl,mn, respectively.

Except for case (4), the probabilities of progeny pairs are simple extensions of equations (2) or (3):

where for the gametophyte-known case, the P's are defined in equation (2), or for the gametophyte-unknown case, the P's are defined in equation (3).

When outcrosses occur twice to the same male, the inbreeding coefficient of the male, termed f, enters the progeny probability. Noting that the correlation between two gametes from the same male is (1+f)/2, the expected frequency of the male-derived gamete pair (n, l) can be written as . Like the classical assumption of constant selfing rates made by the mixed-mating model, this expectation assumes that males are equally inbred.

Now, for case (4), the probability of the progeny genotypes is, for the gametophyte-known case:

or, for the gametophyte-unknown case:

The multilocus probability of an offspring of mother ij is then:

where rs is the correlation of selfing and rp is the correlation of paternity. This probability is then used in the likelihood equation for estimating correlated matings, as described in Ritland (1989).

Statistical properties:

A FORTRAN 90 program was written to compute the information matrix for joint estimation of t, rt, rp and f (paternal inbreeding coefficient). Equations for the matrix of the second derivatives of the log-likelihood were found with an equation solver and imported directly into code. The expected value of the matrix was then found by randomly generating parents and pairs of progeny, using predefined gene frequencies and parameter values, and computing the second derivative of the likelihood of that observation, given the true parameter values. Ten thousand replications were performed, then the matrix inverted to give the variance- covariance matrix of estimates, on a per-pair basis.

The matrix was found to be singular for the case of one locus, meaning that the four mating system parameters (t, rt, rp and f) are not jointly estimable at a single-locus. Use of two or more loci resulted in non-singular matrices, showing that joint estimation of correlated-mating system parameters inherently requires a multilocus approach. In the single-locus model of Ritland (1989), f was not estimated and assumed equal to the maternal parent value.

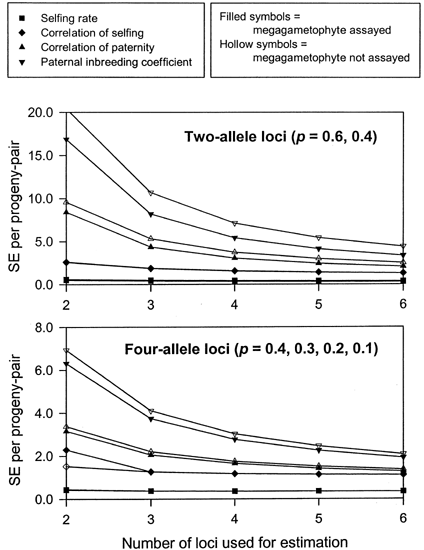

Figure 1 shows the results for two to six gene loci, for the case of a two-allele locus and four-allele locus (for t = rp = 0.5, rt = 0.25 and f = 0.2). Additional loci decrease the variance of correlated-mating estimates, in the same manner as additional loci lower the variance of outcrossing estimates (Ritland and Jain, 1981). However, while assay of megagametophytes also lowered the standard error, the reduction is low and does not warrant the extra effort of megagametophyte assay.

Figure 1
figure 1

Expected standard errors, per pair of progeny, for estimates under the multilocus correlated-matings model, as a function of number of loci.

Full size image

Multilocus-based measures of biparental inbreeding

Biparental inbreeding, or mating between relatives, causes apparent selfing or increased homozygosity, relative to random mating. When true selfing is also present, the difference between multilocus and single-locus estimates of outcrossing, (tm − ts), is often used to characterize the level of biparental inbreeding. This difference is positive because single-locus estimates includes all apparent selfing due to biparental inbreeding, whereas multilocus estimates exclude much of the apparent selfing due to biparental inbreeding (Shaw et al, 1980), as an observed outcross at any locus overrides the apparent selfing manifested at other loci. However, this difference is always an underestimate, as it depends upon the number of loci used, with more loci giving values closer to the true difference. A measure independent of the number of loci used is desirable.

An approximate measure of the fraction of apparent selfing due to biparental inbreeding, (1 − rs):

When biparental inbreeding occurs, the multilocus segregation pattern of progeny is different from that expected under pure mixed selfing and outcrossing. ‘Effective selfing’ occurs at some loci and ‘apparent outcrossing’ at other loci (Ritland, 1984).

To derive a statistic that can be compared among studies, as a first approximation, consider two loci. At these loci, define the probability that both loci are selfed as s20, the probability that one is selfed and the other outcrossed as s11, and the probability that both loci are outcrossed as s02. The selfing rates can be parameterized in terms of the single-locus selfing rate, ss, and the correlation of selfing among loci, rs:

These three probabilities correspond to loci being both selfed, one selfed/one outcrossed, and both outcrossed. The correlation of selfing among loci, rs, lies between −1 and 1, with values less than zero not possible under any realistic scenarios. Uniparental inbreeding results in complete correlation of selfing among loci, while biparental inbreeding results in a looser correlation. This suggests that rs might be used to measure biparental inbreeding in some way.

Using gene-identity coefficients and the definition of ‘effective selfing’ (Ritland, 1984), the correlation of selfing among loci can be found for any mixture of matings. In outbred populations, the single-locus apparent selfing (E) caused by biparental inbreeding is twice the coefficient of relationship between the relatives (E = ½ for full-sibs, E = ¼ for half-sibs). For two loci, the apparent selfing rate is E2, and a given type of mating class, there is no among-locus correlation of selfing. However, when there is a mixture of matings including biparental inbreeding, the correlation takes an intermediate value. For example, in a population of 25% full-sib mating and 75% random outcrossing, rs = (0.25 × 0.52 − 0.1252)/(0.125 × 0.875) ≌ 0.43.

Figure 2a plots rs under a mixture of biparental inbreeding and random outcrossing, over a range of possible values for strength of biparental inbreeding (E) and the frequency of biparental inbreeding (sb). It shows that under this scenario, the among-locus correlation of selfing rs ranges from 0.4 to 1.0

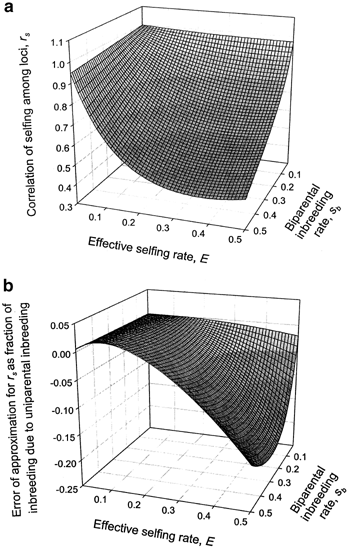

Figure 2
figure 2

(a) The expected among-locus correlation of selfing, as a function of the fraction matings that constitute biparental inbreeding (sb), and the strength of biparental inbreeding (E). (b) The accuracy of rs as a measure of the fraction of inbreeding due to uniparental inbreeding, as a function of the same two parameters.

Full size image

If there is a mixture of uniparental inbreeding (at rate su) and uniform biparental inbreeding (at rate sb), the two locus and single-locus selfing rates are:

and equating s2 in equation (9) with s2 in equation (8) and solving for r yields the approximation:

(this omits terms of order s2 and E2). Thus, for lower levels of selfing (s < 0.2), rs is about the fraction of inbreeding due to uniparental inbreeding, and (1 − rs) is about the fraction of inbreeding due to biparental inbreeding.

This approximation appears to be quite good over a range of values, as indicated in Figure 2b, which plots the ratio of estimated to actual values assuming a selfing rate of 0.2 (lesser values give an even better fit). This relative bias is +5% to −15% over a range of reasonable values for sb and E.

For estimation of the correlation of selfing among loci, we can use the notation of equation (4). With this, the likelihood of two-locus data is the mixture:

where the two loci are indicated by 1 and 2. If there are n loci, all n(n − 1)/2 pairings enter as products of a psuedo-likelihood function.

Three-locus selfing model:

With two loci, one cannot disentangle the two components of effective selfing, the frequency vs strength of biparental inbreeding. To disentangle these, at the simplest, it can be assumed that there is one type of biparental mating with strength Eb and frequency sb, and that uniparental inbreeding also occurs at frequency su (the effective selfing rate given uniparental inbreeding, ‘Eu’, equals one, so is omitted from the following). Suppose selfing rates are separately measured using single loci, pairs of loci and triplets of loci. Denoting these as s1, s2 and s3 respectively, their expectations are:

From these three expectations, joint estimators for the biparental inbreeding rate, and biparental inbreeding intensity, and the uniparental selfing rate can be obtained:

With additional loci, more types of biparental inbreeding can be identified. For example, five loci possess the information to estimate two types of biparental inbreeding.

A precise multilocus description of biparental inbreeding would require n rates of selfing, si, i = 1 … n, where si is the frequency of selfing at i loci and outcrossing at the remaining n − i loci. The single-locus selfing rate (ss) is the weighted average, . While estimation of all n selfing rates is possible, the statistical power to estimate all these parameters will be low, and furthermore, we still are left with measures of biparental inbreeding that are not comparable among studies with different numbers of loci.

MME estimators for individual and family selfing rates

Many studies have estimated selfing rates at the family level (Ivey and Wyatt, 1999). However, when the maximum likelihood method is used, upward bias of outcrossing estimates occur (Ivey and Wyatt, 1999), particularly for smaller family sizes. To address this and other problems with the likelihood approach, Cruzan and Arnold (1994) developed a ‘method of moments’ estimator for selfing rate, which was based upon the Shaw et al (1980) multilocus estimator. Here, a similar, but more statistically efficient, estimator for family selfing rates is introduced. These estimators are developed using the same approach that gave estimators of pairwise relatedness (Ritland, 1996).

Single-locus estimators:

The efficient single-locus ‘method of moments’ (MME) for selfing is based upon an indicator variable for each possible selfed genotype, conditioned upon parent genotype. These indicator variables are denoted by ‘I’ and are defined as follows. If the parent is genotype AiAi, there is just one indicator variable termed ‘Iii’, defined such that if the progeny genotype is AiAi then Iii = 1; otherwise Iii = 0. If the parent is genotype AiAj, there are three variables Iii, Iij, and Ijj, defined such that (a) if the progeny is AiAi, then Iii = 1, Iij = 0 and Ijj = 0; (b) if the progeny is AiAj, then Iii = 0, Iij = 1 and Ijj = 0; and (c) if the progeny is AjAj, then Iii = 0, Iij = 0 and Ijj = 1.

If the parent is genotype AiAi, the expectation of Iii is s + (1 − s)pi. Equating the observation of Ii to its expectation gives the MME for the homozygous parent:

assuming s ≌ 0 so Var(Iii) = pi(1 − pi).

If the parent is genotype AiAj, the estimate of selfing is derived as follows. The values of Iii, Iij, and Ijj, are equated to their expectations, resulting in three estimators. For example, the expected value of Iii is s/4 + tpi/2, and solving for s gives ŝ = (4Iii − 2pi)/(1 − 2pi). The estimate of selfing for parent AiAj is a weighted summation of these three estimators, with the optimal weights determined by the variance-covariance matrix of estimates, and the optimum defined as that which minimizes Var(ŝij); details of this derivation are too complex to present here, but follow the procedure used in Ritland (1996) for pairwise relatedness. The optimal estimator for a heterozygous parent was found with an analytical equation solver to be:

Across loci, the above variances are used to obtain a weighted average of single-locus estimates across loci (each weight is the inverse of the variance). The family estimate of selfing is the weighted average of individual estimates, where the weight applied to a given individual is the average reciprocal variance across loci.

These formulae also illustrate the dependency of estimation variance upon parent genotype and gene frequencies. The estimate for a homozygous parent is best when the parent is a rare genotype; estimates for heterozygote parents have much more uncertainty, and are particularly bad for diallelic loci with nearly equal gene frequencies.

These estimators, being conditioned on parent genotype, are similar to the ‘regression’ estimators of Lynch and Ritland (1999), where the statistical model involves the probability of a second individual, conditioned upon the first. By contrast, in Ritland (1996) the joint probabilities of both individuals were used in the statistical model.

Multilocus estimator:

A multilocus MME for individual selfing rate involves a weighted average of selfing estimates across all possible selfed progeny genotypes. Using equation (4), each possible selfed progeny genotype gives and estimate and variance of:

where ‘m’ is the m-th possible selfed multilocus progeny genotype of the parent, , and Im = 1 if genotype m is the observed progeny genotype, otherwise it is zero.

For n loci of which p are heterozygous in the parent, there are 2n−p3p possible selfed progeny genotypes. This can be a great number, and it becomes impractical to invert the variance-covariance matrix for obtaining an optimal weighted estimate. As an approximation, covariances can be neglected, and the multilocus estimate is simply the weighted average across all ŝm estimates (weights are proportional to the inverse of each variance). The family estimate of selfing is the weighted average of individual estimates, where the weight applied to a given individual is the average reciprocal variance across loci.

A FORTRAN 90 computer program was written to simulate data and estimate individual selfing rates using these formula, and using Cruzan's method. The latter method (Cruzan and Arnold, 1994) is quite similar, the difference being that it groups together all three possible selfed genotypes of a heterozygous mother as the same observation. In the simulation, pollen gene frequencies were assumed to be known, eg, taken from a larger population sample, data were generated for cases of one to six loci and two or four alleles per locus, true outcrossing rate was 90%, and each combination was replicated 100000 times.

The results (Figure 3) show that additional loci always decrease the variance of individual correlated-mating estimates, as do additional alleles per locus. The multilocus estimate is also considerably more accurate than the mean (across loci) of single-locus estimates. The Cruzan method cannot be evaluated for diallelic loci because a heterozygous mother is completely uninformative (infinite variance). For multiallelic loci, the Cruzan method is just slightly less efficient (5–10% greater standard error) than the full multilocus method (equation 16). Also, the Cruzan method makes no prior assumption of outcrossing rate, and its formula is considerably simpler. For these reasons, the Cruzan method is likely a better one to use, except when loci are all diallelic (this method is incorporated into MLTR).

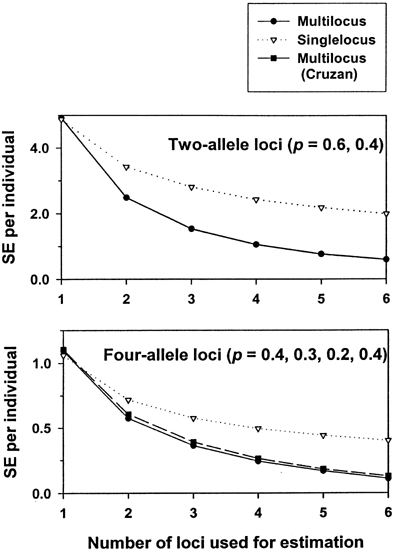

Figure 3
figure 3

Expected standard errors of individual estimates of selfing, as a function of number of loci used.

Full size image

It has been assumed that pollen gene frequency is known or separately estimated. If pollen gene frequencies vary among plants, selfing rate estimates may be biased. However, at least two loci are needed to obtain the degrees of freedom for joint estimation of selfing and pollen pool. Issues regarding joint estimation of selfing and pollen gene frequency for individual families are discussed in Ivey and Wyatt (1999).

MLTR for Windows

The above improvements in the estimation of mating system parameters have been implemented in a complete rewrite and upgrade of ‘MLT’ (Ritland, 1990). The new program is termed ‘MLTR’ (for multilocus t and r), is written in Compaq Visual Fortran 95, and runs under Windows 95 and later operating systems. Run-time array dimensioning allows any size of sample (eg loci, alleles, families) to be used. Letters or numbers can be used for allele designations, and the megagametophyte may be either known or unknown. Additional features include: grouping of individuals for mating system estimation (gene frequencies assumed constant among groups), selection between the EM vs Newton-Raphson methods for numerical solution of the likelihood, and bootstrapping either within families or among families for determining errors of estimates. A complete description of capabilities and the formatting of data are available in the documentation. The program is currently available at: http://www.genetics.forestry.ubc.ca/ritland/programs.

One new feature is the option for ‘Monte-Carlo’ estimation of parentage. This is a modification of the Brown and Allard (1970) method for inferring the maternal parent, which incorporated the probability of all possible parents into the single-locus estimation procedure, and is preferable over using the ‘most-likely’ parent when progeny array size is smaller (<10). However, with multilocus procedures, there are too many possible multilocus parent genotypes to enumerate using the Brown and Allard method. Instead, we can emulate the Brown and Allard method by choosing the parentage for each locus at random, in proportion to the probability of parentage. With each bootstrap iteration, the selection is performed again. This Monte-Carlo method not only confers the desired properties of the Brown and Allard approach, but also incorporates the uncertainty about inferred parentage into the bootstrap estimate of statistical error. However, the original (non-bootstrapped) estimate is not unique; instead, the mating system estimates are the means of the bootstraps.

Discussion

This paper provides advances in four facets of mating system estimation: (1) new formulas for probabilities of progeny, allowing for any number of alleles; (2) a multilocus correlated-matings model; (3) new measures of biparental inbreeding; and (4) MME estimators for individual selfing rate. While each might be the topic of a separate paper, they share the common theme of being multilocus analyses of mating systems. As well, a single dataset is amenable to analyses by all these methods, which are implemented by the program, MLTR.

The significance of these advances is: (1) the formulae allow increased ease in programming, and show the relationship between the ‘conifer’ (gametophyte assayed) and ‘angiosperm’ models; (2) there is greater statistical power for correlated-matings estimates, a new measure of population substructure (comparison of single versus multilocus estimates of correlated-matings), and the power (albeit weak) to estimate paternal inbreeding coefficients from progeny arrays (when paternity is correlated); (3) nearly unbiased estimation of biparental inbreeding, as measured by the correlation of selfing among loci; and (4) unbiased estimators of individual and family selfing rate (when pollen gene frequency is not jointly estimated), suitable for fine-scale studies of mating systems.

The availability of new types of marker data, as well as the diversification of research into the ecology and evolution of plant mating systems, warrants this development of more sophisticated estimation methods. These methods generally require more informative data, either in terms of more loci or more alleles per locus, as finer features of the data are used. However, in many cases, isozyme data can still be adequate, provided that sample sizes are increased. Also, markers exhibiting dominance, such as AFLPs and RAPDs, can also be used in these models, as incorporating dominance into the probabilities is straightforward: the probability of a progeny phenotype equals the sum of the possible progeny genotypes underlying the phenotype. Dominant loci are allowed in MLTR.

Some of these facets of the mating system can be examined with alternative models. The correlated-matings model is just one way to characterize paternity, as paternity analysis has attracted much interest. Wilson (1981) presented a statistical model for estimating the number of sires in a female brood, but with reference to animal populations. In plants, this approach was subsequently adopted (Ellstrand, 1984). Exclusion methods can identify specific male parents (Meagher, 1986), and fractional paternity assignment can distinguish among non-excluded parents (Devlin et al, 1988). However, the power to identify parentage depends upon how informative (variable) the markers are, making comparisons between studies difficult.

Microsatellites can be sufficiently informative to even infer both parents of an individual (Gerber et al, 2000). Experimental populations with mutually unique multilocus combinations of homozygous genotypes allow unambiguous assignment of paternity (Karron et al, 1997). Alternatively, ‘parametric’ models can be used, as in the correlated-matings model (Ritland, 1989). The mixed-mating model can be modified to allow progeny arrays sired by one male parent (Schoen and Clegg, 1984). Also, an analogue of the correlation of paternity can be used to estimate average pollination distance (Austerlitz and Smouse, 2001).

There has been less interest in alternative measures of biparental inbreeding. The difference between multilocus versus single-locus outcrossing rate, tm − ts, is almost universally used. A measure of biparental inbreeding based upon the relationships between fixation indices of selfed and outcrossed progeny was proposed (Waller and Knight, 1989, equation 7), but this estimator essentially equals (tm − ts)/tm, except that ts is estimated using the fixation index of progeny.

A major problem with using the difference, tm − ts, is that it depends on the number of loci used, with more loci giving a larger difference due to larger tm. The ‘among-locus correlation of selfing’, introduced in this paper, does not suffer this bias, and also directly approximates the fraction of selfing due to uniparental selfing. However, there are still cases when simple comparisons of selfing rates are useful, for example, when comparing populations of the same species for tm − ts using the same set of loci (Lu, 2000). Also, the apparent single-locus selfing found in species with self-incompatibility such as sunflower (Ellstrand et al, 1978) should be an unbiased estimator of biparental inbreeding, regardless of the number of loci used, as uniparental inbreeding cannot occur.

Individual and family estimates of selfing are useful in fine-scale studies of mating systems. However, such estimates suffer large statistical variance due to inherent small sample size, even with hypervariable data such as microsatellites. In fact, Ivey and Wyatt (1999) conclude that current family estimators are inadequate and that new procedures are needed. For individual or family-level estimates to be useful, the object of study should transcend these levels, and involve groups of such estimates or correlates of such estimates with other data. For example, individual selfing rates might be correlated with stigma-anther separation, and the object of estimation being the slope of the regression. Other recent advances in the marker-based approaches in ecology and evolution (Cruzan, 1998) are creating opportunities for the use of these fine-scale measures.
