Assessing pilot vial material as a surrogate for functional and phenotypic stem cell markers in cryopreserved haematopoietic stem cell product

Bone Marrow Transplantation volume 51, pages 1631–1632 (2016)Cite this article

Subjects

Cryopreservation is often used as a means of storing haematopoietic progenitor cell-apheresis (HPC-A) product when it is collected as part of high-dose therapy for the treatment of haematological malignancies. Processing and cryopreservation of HPC-A is known to reduce the viability and the absolute number of CD34+ cells available for reinfusion.1, 2 Therefore, a pilot vial (PV) containing a small aliquot of the same HPC-A material is usually cryopreserved and stored under the same conditions enabling enumeration and viability assessment on post-thaw HPC-A material without disturbing the primary infusion bag required for the transplantation. However, whether PV material can be used to assess other functional or phenotypic stem cell markers in HPC-A material following cryopreservation has not been fully investigated. We aimed to assess whether markers of viability, early apoptosis, DNA damage signalling and oxidative damage, together with CD34+ subset analysis performed similarly between PV and HPC-A material following cryopreservation.

Thirty matched pairs of HPC-A and PV were identified. Patient diagnoses included multiple myeloma (MM) (n=10), non-Hodgkin’s lymphoma (NHL) (n=11), Hodgkin’s lymphoma (n=2), AML (n=3), CML (n=1), 1 patient with POEMS (polyneuropathy, organomegaly, endocrinopathy, monoclonal gammopathy, and skin changes) and 2 with solid tumours. The nucleated cell concentration of the product for cryopreservation was 293±17 × 106/mL, expressed as mean±s.e. HPC-A was plasma reduced and cryopreserved in a controlled rate freezer that was validated for both HPC-A and PV material, freezing at a rate of ~1–3 °C/min till −50 °C. Frozen products were then transferred to a liquid nitrogen vapour-phase tank (Chart Inc., Biomedical, Sydney, NSW, Australia) for storage. In each case, the PV was stored in the same cryopreservation cassette with its corresponding infusion bag. Because of the availability of paired clinical samples, only 4 out of 30 samples could be duplicated using a second PV. HPC-A and PV were simultaneously thawed to 37 °C. Post-thaw CD45+ cell recovery and viable CD34+ cell number were assessed by 7-aminoactinomycin D (7-AAD) using the single-platform ISHAGE protocol,3 one tube for each sample; intracellular aldehyde dehydrogenase (ALDH) activity was assessed by the ALDEFLUOR Assay kit (Stemcell Technology, Melbourne, VIC, Australia)4, 5 and stem cell subsets were assessed by CD1336, 7 and CD38.8, 9 Mitochondrial membrane potential was assessed using 1,1′,3,3,3′-hexamethylindodicarbo-cyanine idodide (DilC5) staining as a marker of early apoptosis,10, 11 DNA damage was assessed using histone γH2AX as a marker of DNA double-stranded break formation12 and intracellular reactive oxygen species (ROS)13 was assessed using 2′,7′-dichlorodihydrofluorescein diacetate (H2DCFDA). All assays were performed by flow cytometry. All markers, except CD45+ cell% recovery, are expressed as percentages of viable CD34+ cells.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

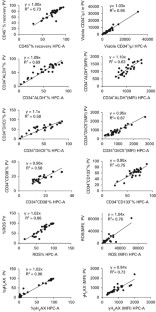

Figure 1

References

  1. Castelhano MV, Reis-Alves SC, Vigorito AC, Rocha FF, Pereira-Cunha FG, De Souza CA et al. Quantifying loss of CD34+ cells collected by apheresis after processing for freezing and post-thaw. Transfus Apher Sci 2013; 48: 241–246.

    Article  PubMed  Google Scholar

  2. D’Rozario J, Parisotto R, Stapleton J, Gidley A, Owen D . Pre infusion, post thaw CD34+ peripheral blood stem cell enumeration as a predictor of haematopoietic engraftment in autologous haematopoietic cell transplantation. Transfus Apher Sci 2014; 50: 443–450.

    Article  PubMed  Google Scholar

  3. Gratama JW, Kraan J, Keeney M, Sutherland DR, Granger V, Barnett D . Validation of the single-platform ISHAGE method for CD34(+) hematopoietic stem and progenitor cell enumeration in an international multicenter study. Cytotherapy 2003; 5: 55–65.

    Article  CAS  PubMed  Google Scholar

  4. Fox M . Aldehyde dehydrogenase as an alternative to enumeration of total and viable CD34 cells in autologous hematopoietic progenitor cell transplantation. Cytotherapy 2011; 13: 1256–1258.

    Article  Google Scholar

  5. Fallon P, Gentry T, Balber AE, Boulware D, Janssen WE, Smilee R et al. Mobilized peripheral blood SSCloALDHbr cells have the phenotypic and functional properties of primitive haematopoietic cells and their number correlates with engraftment following autologous transplantation. Br J Haematol 2003; 122: 99–108.

    Article  PubMed  Google Scholar

  6. McGuckin CP, Pearce D, Forraz N, Tooze JA, Watt SM, Pattengell T . Multiparametric analysis of immature cell populations in umbilical cord blood and bone marrow. Eur J Haematol 2003; 71: 341–350.

    Article  PubMed  Google Scholar

  7. Hicks C, Wong R, Manoharan A, Kwan YL . Viable CD34+/CD133+ blood progenitor cell dose as a predictor of haematopoietic engraftment in multiple myeloma patients undergoing autologous peripheral blood stem cell transplantation. Ann Hematol 2007; 86: 591–598.

    Article  CAS  PubMed  Google Scholar

  8. Deaglio S, Mehta K, Malavasi F . Human CD38: a revolutionary story of enzymes and receptors. Leuk Res 2001; 25: 1–12.

    Article  CAS  PubMed  Google Scholar

  9. Yin AH, Miraglia S, Zanjani ED, Almeida-Porada G, Ogawa M, Leary AG et al. AC133, a novel marker for human haematopoietic stem and progenitor cells. Blood 1997; 90: 5002–5012.

    CAS  PubMed  Google Scholar

  10. Petit PX, Susin SA, Zamzami N, Mignotte B, Kroemer G . Mitochondria and programmed cell death: back to the future. FEBS Lett 1996; 396: 7–13.

    Article  CAS  PubMed  Google Scholar

  11. Lugli E, Troiano L, Ferraresi R, Roat E, Prada N, Nasi M et al. Characterization of cells with different mitochondrial membrane potential during apoptosis. Cytometry 2005; 68: 28–35.

    Article  PubMed  Google Scholar

  12. Hernandez LA, Granger N . Role of antioxidants in organ preservation and transplantation. Crit Care Med 1988; 16: 543–549.

    Article  CAS  PubMed  Google Scholar

  13. Peng L, Wang S, Yin S, Li C, Li Z, Wang S et al. Autophosphorylation of H2AX in a cell-specific frozen dependent way. Cryobiology 2008; 57: 175–177.

    Article  CAS  PubMed  Google Scholar

Download references

Acknowledgements

This work was supported by the Staff Specialist Trust Fund, Royal North Shore Hospital, Sydney, Australia.
