Main

The first long-term follow-up studies of node-negative breast cancer that analyzed the prognostic significance of lymphovascular invasion were published in 1977 by Rosen and co-workers1, 2, 3 Lymphovascular invasion in primary operable breast carcinoma is an essential independent prognostic factor of distant metastasis-free and overall survivals and is taken into account in decisions on adjuvant treatment.4, 5, 6, 7 In routine practice, the identification of lymphovascular invasion is subject to interobserver variability. Nevertheless, definite peritumoral lymphovascular invasion in the breast surrounding invasive carcinoma, without distinguishing blood vessels and lymphatics, was found with the same incidence by two teams in 19% of 1320 and 2760 node-negative patients, respectively.4, 5 Kahn et al observed that D2-40, a new monoclonal antibody to an Mr 40 000 O-linked sialoglycoprotein, was a sensitive and specific marker of lymphatic endothelium.8, 9 D2-40 has mainly been applied as a marker for diagnosing a subset of vascular lesions including Kaposi's sarcoma.10, 11 D2-40 has also been applied for increasing the detection accuracy of lymphatic invasion in breast carcinomas and melanoma.12, 13 Moreover, Arnaout-Alkarian et al12 found that lymphatic invasion identified by D2-40 in patients with node-negative breast carcinomas was prognostically significant. The aim of our study was to compare the diagnostic and prognostic value of lymphovascular invasion detected on tumor specimens by hematoxylin–eosin and D2-40 in a group of node-negative breast carcinomas.

Materials and methods

Patients

Between 1989 and 1992, 937 patients with primary operable invasive breast carcinoma were operated and monitored at our institution. All these patients had been prospectively included by senior pathologists (IM, GMG, IS, JMC) in our clinical, biological and histological database (65 pathological items for noncancerous lesions and 181 for cancers), and a prognostic tissue microarray block was built (GMG).14 A small subset of 100 lymph node-negative patients was randomly selected, corresponding to approximately 10% of the 937 patients. Ninety-four patients were included in this study (blocks not available in six cases). All the patients were treated surgically by either modified radical mastectomy (68 cases) or local tumor resection (26 cases) with axillary node dissection. Postoperative breast irradiation was performed in 69 cases. Adjuvant therapy with chemotherapy and/or hormone therapy was decided according to nodal status and hormone receptor determination results.15, 16 All patients were followed-up every 3 months for 2 years, twice a year for the next year and then once a year. The median follow-up was 178 months (CI 95%: 174–183). During this period 13 patients presented distant metastases with or without locoregional recurrences.

Tissue Samples and Histological Examination

After fixation in Holland-Bouin, the tumor was macroscopically sectioned into three slices. Each slice was put in as many separate cassettes as necessary and paraffin embedded. The median of blocks per patients was 3 (1–17). In total, 3 blocks per tumor were obtained in 68 cases (72%) and 4–17 blocks in 14 cases. Each block was examined on one hematoxylin–eosin section/slide. Original hematoxylin–eosin slides of the tumor were not reviewed. The diameter of the tumor (histological size) was measured on fresh specimens and on hematoxylin–eosin slides. The largest diameter was taken into account. A modified SBR-grading system grade was used.17

Immunohistochemical Assay

For the study, each tumor block from the 94 patients was recut into 4 μm sections mounted on SuperFrost® slides, and one slide per block was stained with D2-40. Thus, 324 D2-40-stained slides were analyzed. Antigen retrieval was obtained by heating tissue sections, immersed in a 0.01 M citrate buffer, in a pH9 solution (Dako® S2367), in a pressure cooker for 20 min. The sections were then incubated for 60 min with D2-40 (Dako®, dilution 1/50). A labeled streptavidin–biotin–peroxidase method (LSAB kit K5001, DakoCytomation®, France) was used to visualize the immunoreactions with diaminobenzidine as a chromogen. Immunohistochemical stainings were analyzed by one pathologist (IM) blind to whether the case was hematoxylin–eosin positive or negative for lymphovascular invasion. As underlined by Kahn et al10, 11 and Fukunaga, D2-40 selectively stained flattened or open lymphatic channels lined by a single layer of endothelial cells, whose lumen was sometimes filled with lymphocytes. D2-40 did not stain blood vessels: capillaries and the endothelium of arteries were negative or rarely weakly positive.

Definition of Lymphovascular Invasion

Definition of lymphovascular invasion detected by hematoxylin–eosin

Definite peritumoral lymphovascular invasion on original hematoxylin–eosin-stained slides was defined as carcinoma cells present within a definite endothelial lined space, at a distance from the tumor (Figure 1a), in the breast surrounding invasive carcinoma, ie separated from the tumor by normal breast tissue and often next to a small artery or vein.4, 18 When hematoxylin–eosin lymphovascular invasion was suspected in the vicinity of the tumor, differential diagnosis with an artifact (retraction) was difficult, and such equivocal cases were recorded as negative. In our study, only unequivocal hematoxylin–eosin lymphovascular invasion was recorded as positive without distinguishing blood vessels from lymphatics. There were 14 (15%) patients with definite hematoxylin–eosin distant peritumoral lymphovascular invasion and this is exactly the frequency expected.19 Although hematoxylin–eosin emboli were not counted, they were single in most cases. Patient characteristics are summarized in Table 1.

Figure 1
figure 1

(a) Distant peritumoral vessel with definite tumoral invasion close to a normal lobule; inset: D2-40 immmunostaining. (b) Intratumoral vessel with tumoral invasion; inset: D2-40 immmunostaining.

Full size image
Table 1 Clinicopathological data of patients included
Full size table

Definition of lymphatic invasion detected by D2-40

Number and topography (intra and/or peritumoral) of lymphovascular invasion detected by D2-40 (D2-40+ LVI) was recorded (Figure 1a and b). Close peritumoral D2-40+ LVI was seen at the invasive front of the tumor, ie close to tumor cells or desmoplastic stroma. The definition of distant D2-40+ lymphovascular invasion was similar to the one of distant peritumoral hematoxylin–eosin lymphovascular invasion, ie separated from the tumor by normal breast tissue. Only obvious peritumoral emboli in unequivocal vessels detected with D2-40 were recorded as positive. Equivocal cases (n=10) were analyzed by two pathologists (IM and GMG), and recorded as negative when results between the two pathologists (n=10 cases) were discordant. In each case, the number of ‘positive’ blocks/slides (ie number of slides with definite emboli) was assessed. Extensive distant peritumoral vascular invasion was defined as one or more emboli on more than one tumor block/slide according to Colleoni et al20 criteria.

Comparison of Hematoxylin–Eosin and D2-40 Slides

When lymphovascular invasion was detected simultaneously by hematoxylin–eosin and D2-40, slides were reviewed to assess whether it was the same embolus in the same vessel. Slides of discordant cases were also reviewed to assess precisely, on one hand, the presence or the absence of distant peritumoral vessels on the recuts from the corresponding block, and on the other, the topography of lymphovascular invasion. Hematoxylin–eosin lymphovascular invasion that had been missed at first examination and diagnosed at the second in the light of D2-40 findings.

Statistics

Correlations between vascular invasion and patient characteristics were studied with the χ2- and Wilcoxon tests. Metastasis-free survival was calculated according to the Kaplan–Meier method from the date of the surgery to the occurrence of distant metastasis. We compared MFS between the patients with and without vascular invasion using the log-rank test (SPSSv14).

Results

Lymphatic Invasion Detected by D2-40

D2-40 lymphovascular invasion was present in 39 (41%) out of the 94 cases and was located in or at the periphery of the tumor in 13 and 26 cases, respectively. Peritumoral D2-40 lymphovascular invasion was close to the tumor in 10 cases and distant in 16 (in association with close D2-40+ LVI in 12 cases). D2-40 lymphovascular invasion was multiple (on the same slide or on different slides) in 30 cases (3–14 emboli in 21 cases). Thus, 10 of 13 intra, 8 of 10 close and 12 of 16 distant and close D2-40 lymphovascular invasion were multiple. D2-40 lymphovascular invasion was extensive in 23 cases (three slides or more in 11cases). Thus, 7 of 13 intra, 5 of 10 close and 9 of 16 distant and close D2-40 lymphovascular invasion were extensive. Finally, D2-40 lymphovascular invasion was present on only one out of the three or more sections/slides in 16 of 39 (41%) cases.

D2-40 and Patient Characteristics

D2-40 lymphovascular invasion were more frequent in younger patients (mean age 38 vs 54 years in positive and negative patients, respectively, P=0.005) and in larger tumors (mean size 53 vs 40 mm in positive and negative patients, respectively, P=0.015). No correlation was found between hormonal receptor status and histological tumor grade.

Comparison of Hematoxylin–Eosin and D2-40 in Concordant and Discordant Cases

Concordant cases: concurrent positivity or negativity of hematoxylin–eosin and D2-40

Hematoxylin–eosin and D2-40 were simultaneously negative in 47 cases and positive in 6 cases (Table 2). In the six tumors with hematoxylin–eosin and D2-40 lymphovascular invasion, D2-40 lymphovascular invasion was often multiple (five cases with five or more lymphovascular invasion) and located in (n=1) or at distance from the tumor (n=5), whereas hematoxylin–eosin lymphovascular invasion was single and located in distant vessels. The five single distant peritumoral emboli detected both by hematoxylin–eosin and D2-40 were located in the same vessels.

Table 2 D2-40 emboli according to absence or presence of hematoxylin–eosin emboli
Full size table

Discordant cases: positivity of hematoxylin–eosin or D2-40

There were 41 cases with one positive staining: 8 cases with lymphovascular invasion detected by hematoxylin–eosin only and 33 with lymphovascular invasion detected by D2-40 only (12 intra, 10 close and 11 distant LVI). When comparing the eight hematoxylin–eosin and D2-40-stained slides on which lymphovascular invasion had been detected by hematoxylin–eosin only, distant vessels with hematoxylin–eosin lymphovascular invasion were actually absent on the D2-40-stained slides corresponding to recuts from the corresponding block. When comparing the 11 hematoxylin–eosin and D2-40-stained slides on which distant lymphovascular invasion had been detected by D2-40 only, 7 hematoxylin–eosin lymphovascular invasion had been missed at the first hematoxylin–eosin examination and diagnosed at the second by D2-40 in the same distant lymphatic vessels, and 4 D2-40 lymphovascular invasion were located in vessels that were absent on the original hematoxylin–eosin-stained slides. Finally, lymphovascular invasion detected both by hematoxylin–eosin and D2-40 was located in the same distant vessels in 12 cases (5 cases at the first examination and 7 at the second). Among the seven hematoxylin–eosin lymphovascular invasion missed at the first examination, only one was found in a SBR grade 3 tumor. Using hematoxylin–eosin lymphovascular invasion as gold standard, D2-40 sensitivity and specificity were respectively 42.8% (95% CI: 17.6–71.1) and 58.7% (95% CI: 47.1–69.6).

Prognostic Significance of Lymphovascular Invasion According to Staining Used

There was no significant difference in metastasis-free survival between patients with or without D2-40 lymphovascular invasion (P=0.14) whatever their extension (P=0.2). When taking into account the topography of D2-40 lymphovascular invasion, a difference in survival was found only between patients with no D2-40 lymphovascular invasion and those with distant D2-40 lymphovascular invasion (P=0.02, Figure 2a). D2-40 lymphovascular invasion located within or close to the tumor had no prognostic value. Moreover, a significant difference was also found between patients with fewer or more than two D2-40 emboli (P=0.04). Among the 13 tumors that subsequently relapsed, hematoxylin–eosin lymphovascular invasion was diagnosed in 5 cases at first examination and in 2 cases secondarily by D2-40 staining (no relapse in the 4 tumors with D2-40+/negative lymphovascular invasion at review). Comparing the metastasis-free survival of patients with or without hematoxylin–eosin lymphovascular invasion, the prognostically unfavorable significance of hematoxylin–eosin lymphovascular invasion was improved when taking into account D2-40 lymphovascular invasion confirmed by hematoxylin–eosin (P=0.006 vs 0.003, Figure 2b and c).

Figure 2
figure 2

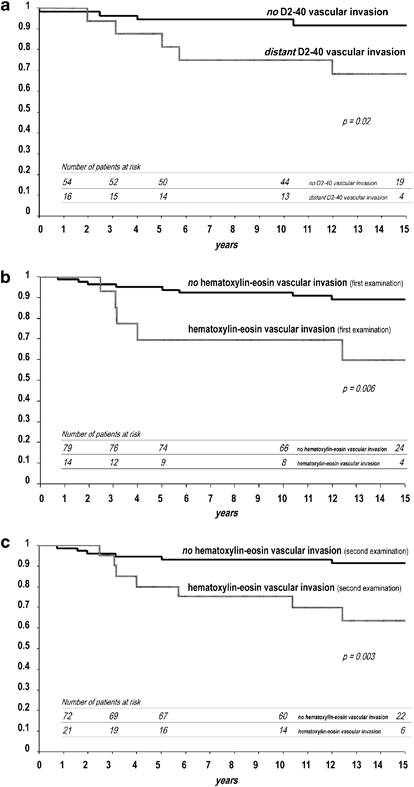

Metastasis-free survival curves according to the absence or presence of lymphovascular invasion detected by hematoxylin–eosin and D2-40. (a) Metastasis-free survival according to presence or absence of distant lymphovascular invasion detected by D2-40. (b) Metastasis-free survival according to presence or absence of distant lymphovascular invasion detected by hematoxylin–eosin at the first examination. (c) Metastasis-free survival according to presence or absence of distant lymphovascular invasion detected by hematoxylin–eosin at the second examination in the light of D2-40 findings.

Full size image

Discussion

Incidence of Lymphatic Invasion Detected by D2-40

The lower incidence of D2-40 lymphovascular invasion in the others studies: 27,12 23,21 15%22 compared to the incidences in our study (41%) and in that by Van den Eynden et al23 (70%) may be due to the number of immunostained sections/slides per tumor: one12, 21, 22 vs four23 and a mean of 3 in the present study. Furthermore, Van den Eynden et al23 included node-positive patients with large tumors.

Discordances Between Hematoxylin–Eosin and D2-40

Positivity of hematoxylin–eosin and negativity of D2-40

Four hypotheses can be made: (1) vascular lumina are absent on immunostained slides corresponding to recuts from the corresponding block (eight cases in our study); (2) vascular lumina are present but without emboli; (3) hematoxylin–eosin lymphovascular invasion corresponds to artifacts; (4) hematoxylin–eosin emboli are located in vascular channels that are not lymphatics. Nevertheless, Mohammed et al21 recently found that blood vascular invasion was rare comparatively to lymphovascular invasion (3.5 vs 96.4%).

Negativity of hematoxylin–eosin and positivity of D2-40

These cases were more numerous in our series than in that of Arnaout-Alkarian et al (41% vs 18%, respectively).12 In this situation, three hypotheses can be made: (1) emboli are missed at the first hematoxylin–eosin examination and subsequently scored in the light of D2-40 findings (seven cases in our study); (2) emboli are present at the first hematoxylin–eosin but cannot be taken into account: they are not located at distance from the tumor (23 intra or close lymphovascular in our study) and/or the complete obliteration of vascular lumina does not allow a diagnosis of lymphovascular invasion; (3) vascular lumina are absent on hematoxylin–eosin slides and present on immunostained slides corresponding to recuts from the corresponding block (four cases in our study).

Thus, the 12 cases with lymphatic vessels absent either on hematoxylin–eosin or on D2-40-stained slides cannot be considered with certainty as ‘true’ discordant cases.

Prognostic Significance of D2-40 Lymphovascular Invasion According to Topography, Number, and Extension

Although the median follow-up was long in our study, the relatively small number of patients and events requires caution when interpreting these results. With a comparable median follow-up (8 years), some authors12, 21 found that D2-40 lymphovascular invasion (topography not specified) was a significant predictor of outcome. Furthermore, when comparing the pejorative significance of hematoxylin–eosin and D2-40 lymphovascular invasion, the pejorative significance of D2-40 lymphovascular invasion was stronger (P=0.05 vs P=0.007).21 In our study, the clinical impact of distant D2-40 lymphovascular only and the stronger prognostic impact of hematoxylin–eosin lymphovascular invasion when taking into account missed hematoxylin–eosin lymphovascular invasion raises the hypothesis that D2-40 could detect different types of lymphatic vessels or emboli. On one hand, there could be emboli located in normal preexistent mature lymphovascular channels found in the breast surrounding invasive carcinoma; and on the other, emboli located in lymphatic neocapillaries within the tumor with a chaotic architecture and abnormal function. Vascular proliferation is now known to be heterogeneous in tumoral neoangiogenesis and vasculogenesis. Lymphatic emboli located in ‘abnormal’ lymphatic neovessels within or close to the tumor could be different from lymphatic emboli located in normal lymphatic capillaries and mature lymphatic vascular channels located outside the tumor, ie connection between the two systems may not be efficient. Furthermore, various studies have suggested that the growth of tumor-associated lymphatic vessels induced by vascular endothelial growth factors C and D promotes lymphatic invasion.24, 25, 26, 27, 28 Increased lymphovascular tumor density was found to be a significant unfavorable prognostic factor in breast cancer,28, 29 melanoma30, 31 and colorectal cancer.32 Some authors33 found in 89 cases of breast cancer that lymphangiogenesis was mainly located in tumor stroma, whereas mature lymphatic vessels were not found in cancer nests. Such a distinction between intra- and peritumoral lymphatic vessels was also underlined by Massi et al30 in 45 cases of melanoma. In their study, peritumoral lymphovascular density was an independent variable affecting overall survival, whereas intratumoral lymphovascular density was the most significant predictor of sentinel lymph node metastasis. Additional studies are necessary to analyze more precisely the relationship between intra- and peritumoral lymphangiogenesis, intra- and peritumoral lymphatic invasion and clinical outcome (lymph node metastases, distant metastasis and overall survival).

Practical Considerations

Definitions of hematoxylin–eosin lymphovascular invasion

As hematoxylin–eosin lymphovascular invasion had been missed in 7 cases out of 22 (33%) at the first hematoxylin–eosin examination, the term ‘obvious’ peritumoral emboli as defined in a previous work is no longer adequate.4 On the contrary, the term ‘unequivocal lymphatic vessels’ is still adequate as hematoxylin–eosin emboli have to be located in unequivocal distant D2-40-positive lymphatic vessels.

Is it useful to detect more lymphatic tumor emboli by D2-40 in routine practice?

The stronger prognostic impact of hematoxylin–eosin lymphovascular invasion when adding the missed lymphovascular invasion detected by D2-40 suggests an affirmative answer to this question. Nevertheless, it is not necessary to search for all emboli in all patients. D2-40 could be used in node-negative patients without hematoxylin–eosin emboli and without any other prognostically unfavorable pathologic criterion (ie with a tumor SBR grade 1 or 2 sizing less than 2 mm, with positive hormonal receptors and negative Her2Neu status) to search for missed distant hematoxylin–eosin lymphovascular invasion on all tumor blocks. Thus, in our study group, D2-40 would have been performed in nearly half of patients (n=48) and would allow the detection of 6 missed distant hematoxylin–eosin lymphovascular invasion (12.5%, CI 95%: 4.7–25%).

In conclusion, our study raises several hypotheses: (1) the high incidence of D2-40 lymphovascular invasion might be related to the number of immunostained slides per case; (2) D2-40 might detect different types of vessels/lymphovascular invasion; and (3) only distant D2-40 lymphovascular invasion confirmed by hematoxylin–eosin might have a prognostic impact. Thus, in routine practice, D2-40 might be useful especially for novice pathologists to detect missed hematoxylin–eosin emboli. Further studies with large cohorts of patients are necessary to assess accurately the clinical significance of D2-40 lymphatic invasion. This is a time-consuming and expensive undertaking as it cannot be performed on tissue microarray blocks. However, it is of practical interest as this reliable, reproducible and routinely applicable factor is of prognostic value.
