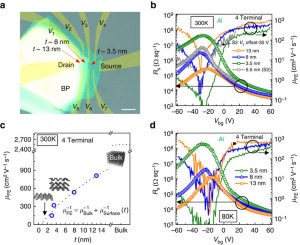

In Fig. 3 of this article, there are a number of errors in the colours used for the data points and curves. In Fig. 3b, the blue data should be green, referring to a thickness of ‘3.5 nm’, and the green data should be blue, referring to a thickness of ‘8 nm’. In Fig. 3d, the blue data should be green and refer to a thickness of ‘3.5 nm’, the green data should be blue and refer to a thickness of ‘8 nm’ and the orange data should refer to a thickness of ‘13 nm’.
In Table 1, the Pd contacts on 13–14.5 nm of BP were ‘Unipolar p-type’, not ‘Unipolar n-type’.
The correct version of Fig. 3 and Table 1 appear below.
Additional information
The online version of the original article can be found at 10.1038/ncomms8809
