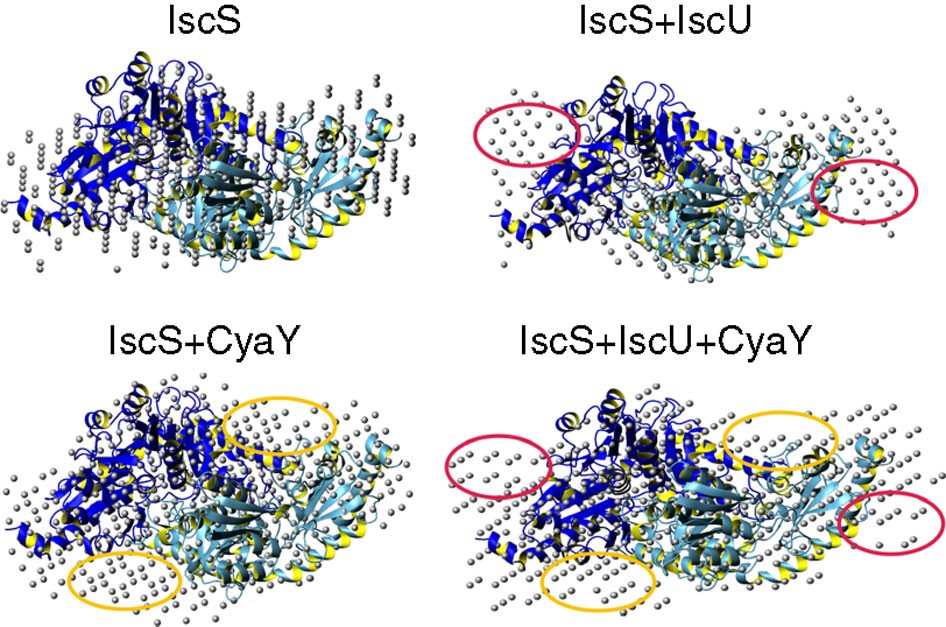

Figure 3: Small-angle X-ray scattering shapes.
Comparison of the densities superposed to the crystal structures of IscS (1P3W) for IscS alone, IscS/IscU, CyaY/IscS and CyaY/IscS/IscU. Regions with additional density in the binary and ternary complexes are highlighted in red or yellow ovals.
