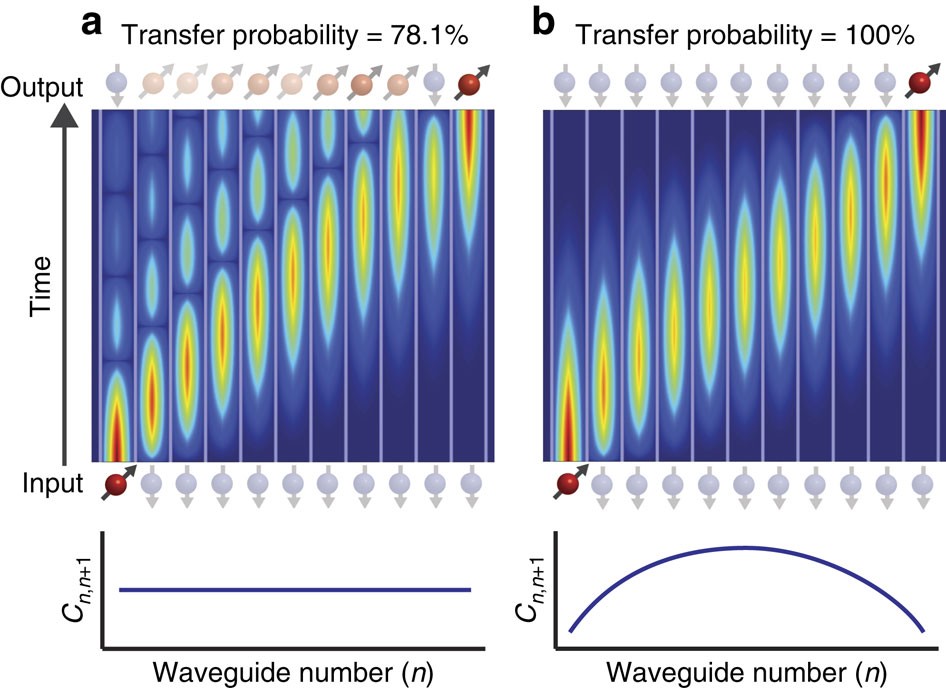

Figure 2: Propagation simulations with different coupling coefficient spectra.
From: Experimental perfect state transfer of an entangled photonic qubit
