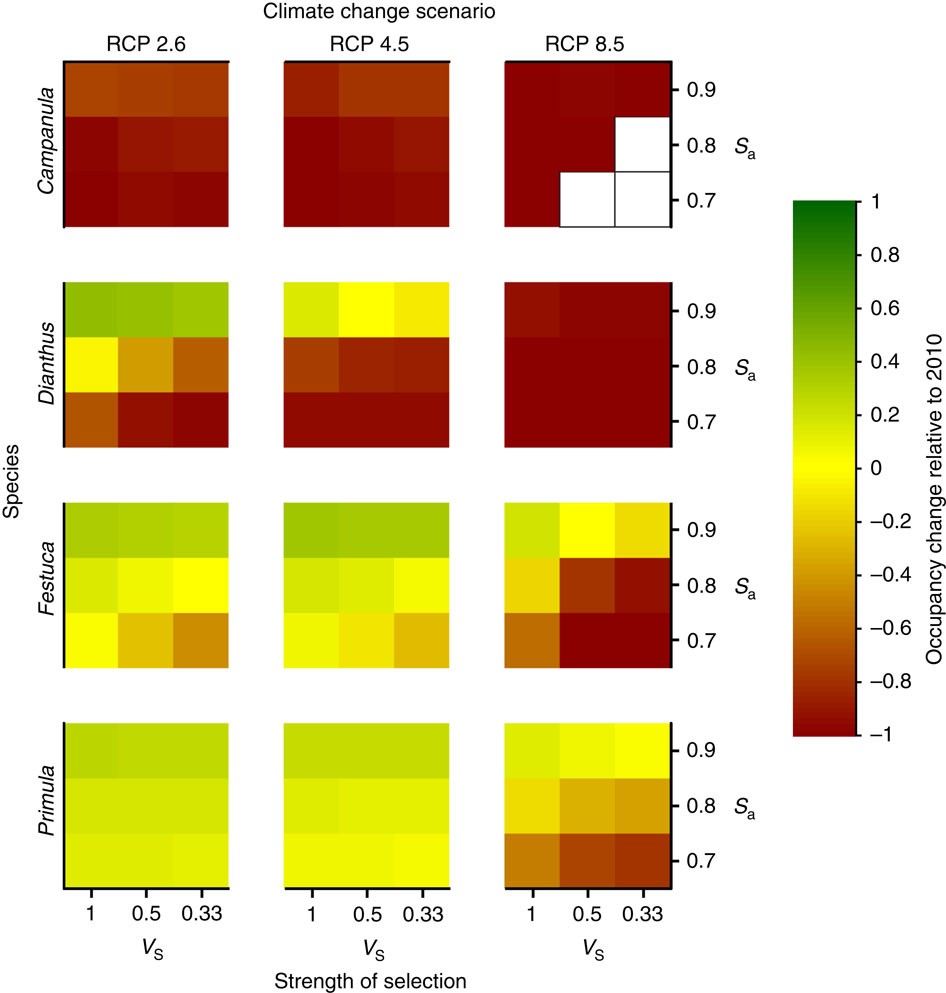

Figure 6: Variation of species’ ranges recorded in 2150 relative to their initial state at the onset of climate change in 2010 in the DEEM.
From: A dynamic eco-evolutionary model predicts slow response of alpine plants to climate warming
The values shown are relative grid occupancy (number of occupied cells in 2150 relative to 2010) for each combination of relative strength of selection (VS), adult survival (Sa), climate change scenario (RCP), and species, averaged over all grids in each species and for the three mutation rates. Warmer colours represent decrease of occupancy while cooler colours represent increase of occupancy. The averages are taken only for those simulations where at least one cell remained occupied in 2150. Empty cells correspond to cases with complete extinction of all populations in all grids.
