Figure 4: Field-effect mobility of devices from rrP3HT106-b-rsP3HT47 fibres.

From: Uniform electroactive fibre-like micelle nanowires for organic electronics

Figure 4

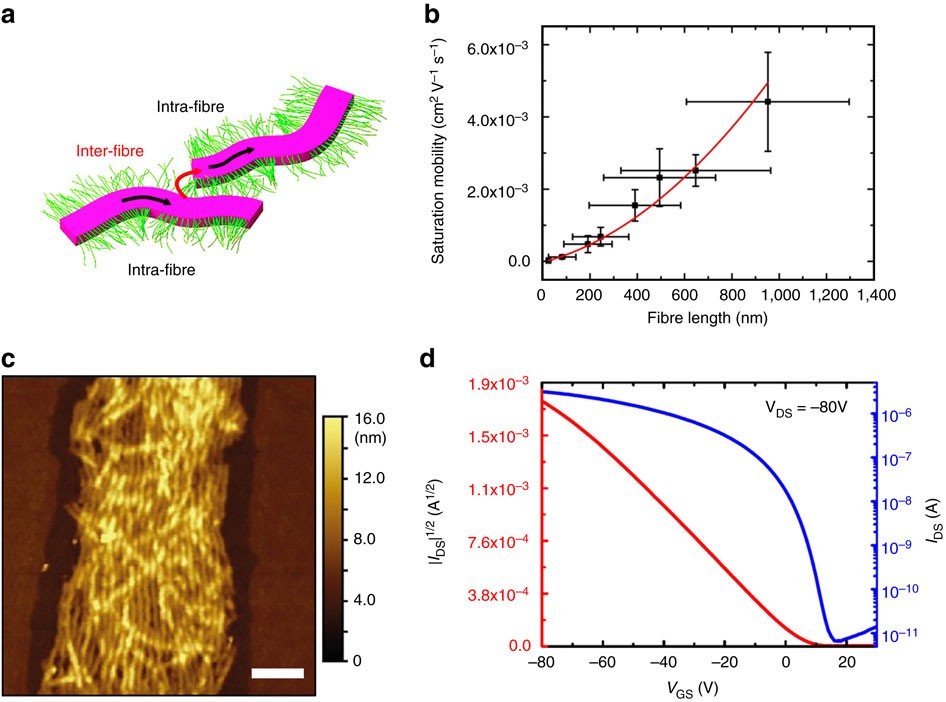

(a) Schematic illustration of the charge-carrier transfer processes present in thin films of semiconductive fibre networks. (b) Variation of saturation mobility versus the fibre lengths after self-seeding. The red curve is a quadratic fit to the data. Each saturation mobility data point is averaged over the data from at least ten devices. (c) AFM image of the aligned and unfragmented rrP3HT106-b-rsP3HT47 fibres (Ln>10 μm). Scale bar, 200 nm. (d) Transfer characteristics of the OFET device of the aligned and unfragmented rP3HT106-b-rsP3HT47 fibres.
