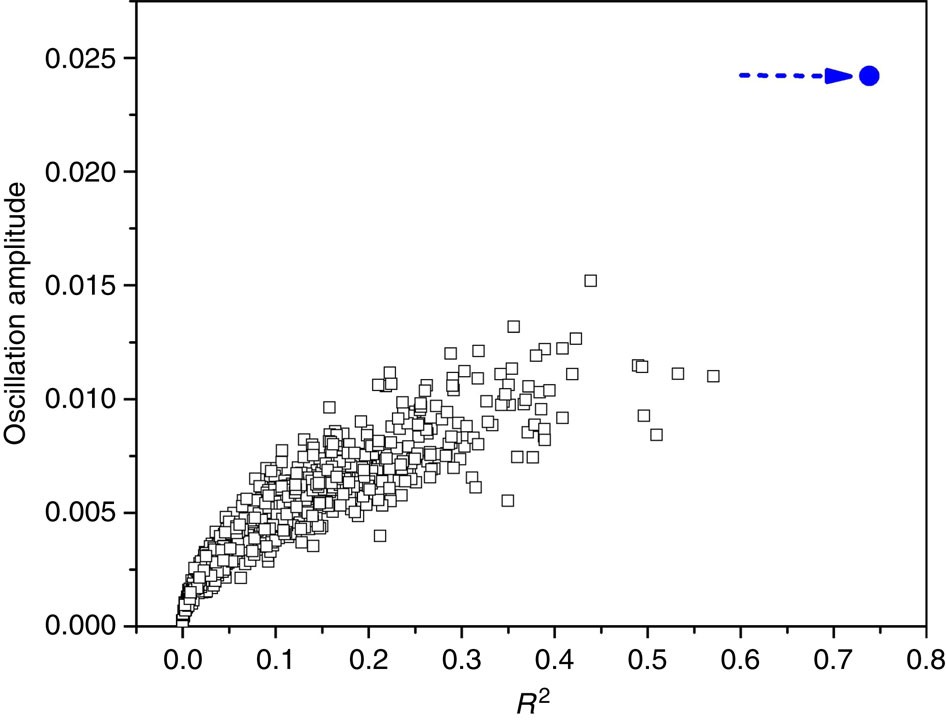

Figure 4: Statistical evaluation of the asymmetry.
From: Subfemtosecond steering of hydrocarbon deprotonation through superposition of vibrational modes
In the measured data, the CEPs were randomized and the resulting asymmetry curve was fitted by a sinusoidal to extract the amplitude. This was repeated 1,000 times and the fitted amplitudes and R2 values (see text) for each are plotted. The true experimental data are displayed as a blue point indicated by an arrow, demonstrating the statistical significance of the observed CEP-dependence.
