Figure 4: Composite figure showing the standardized rate of disturbance (SRD) of different disturbance categories and locations.
From: Recovery and resilience of tropical forests after disturbance

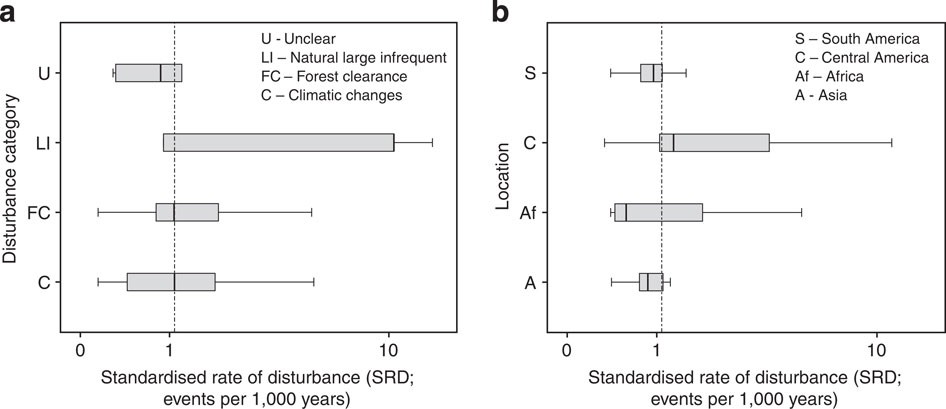

Box plots displaying the relationship between the SRD and (a) different grouped disturbance categories and (b) geographical location groups. (See Fig. 2 legend for details on notation and sample sizes). The SRD is plotted on a logarithmic scale to accommodate the variability in the data set. The vertical line in a and b represents the median SRD for the entire data set, that is, 1.072 disturbance events per 1,000 years. Shaded areas on a and b represent the interquartile range and the whisker lines the 95% confidence intervals for each category.
