Figure 2: Reconstructed images.

From: X-ray holography with a customizable reference

Figure 2

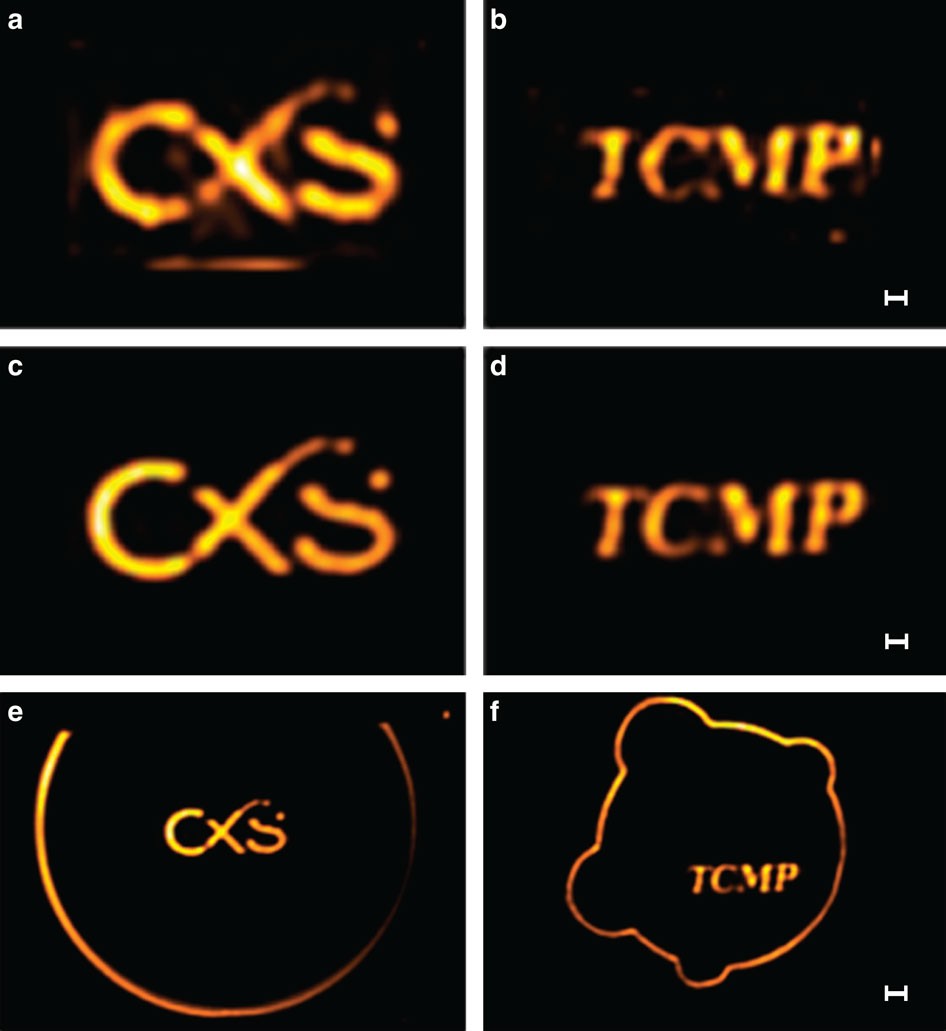

The object intensities reconstructed by ILRUFT are shown in a,b and those reconstructed by RAAR are shown in c,d. The full exit surface wave intensity reconstructed by RAAR is shown in e,f. The scale bars shown in b,d represent 200 nm and the scale bar in f represents 500 nm. Images a–d are on the same scale. Images e and f are on the same scale.
