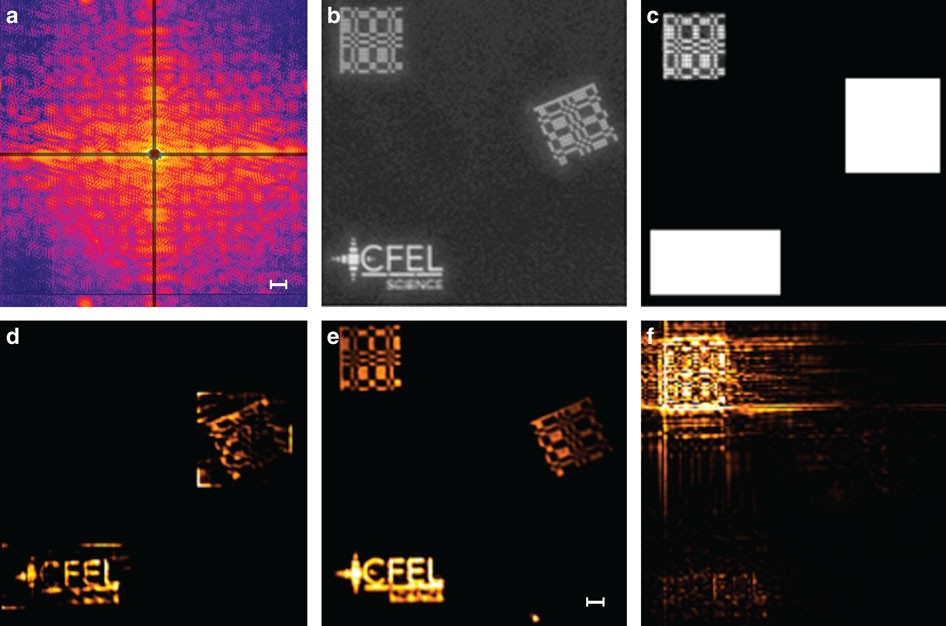

Figure 3: URA reconstructions.
The diffraction pattern of the URA reference case is shown in a, and the SEM image of the sample is shown in b. The estimated reference function is shown in c, and the areas assumed to contain the objects are indicated by the white rectangles. The intensity of the ILRUFT reconstruction is shown in d, the intensity of the averaged RAAR reconstruction is shown in e and the reconstruction by convolution is shown in f. Note that f has been cropped so that the centre is located in the top left corner, so that only the most relevant part for comparison to the other reconstructions is shown. The scale bar in a represents 0.1 μm−1. The scale bar in e represents 500 nm and images b–f are on the same scale.
