Figure 2: The configuration of single-layer BP under uniaxial deformation in the x-direction.

From: Negative poisson’s ratio in single-layer black phosphorus

Figure 2

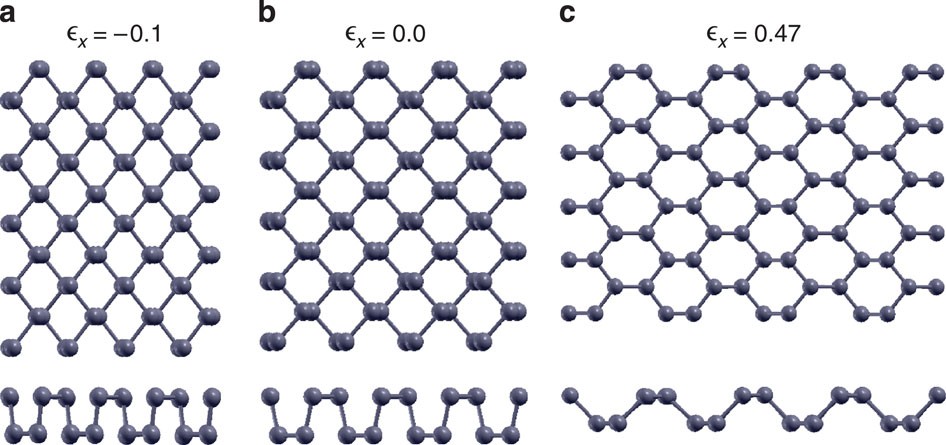

(a) Compression with εx=−0.1. (b) Optimized structure without deformation (εx=0.0). (c) Tension with εx=0.47. Top and side views are displayed in all panels. Note the unfolding of the pucker in the side view in c.
