Figure 1: Predicted total fish biomass production against normalized fish species richness for random deletions.

From: Impact of biodiversity loss on production in complex marine food webs mitigated by prey-release

Figure 1

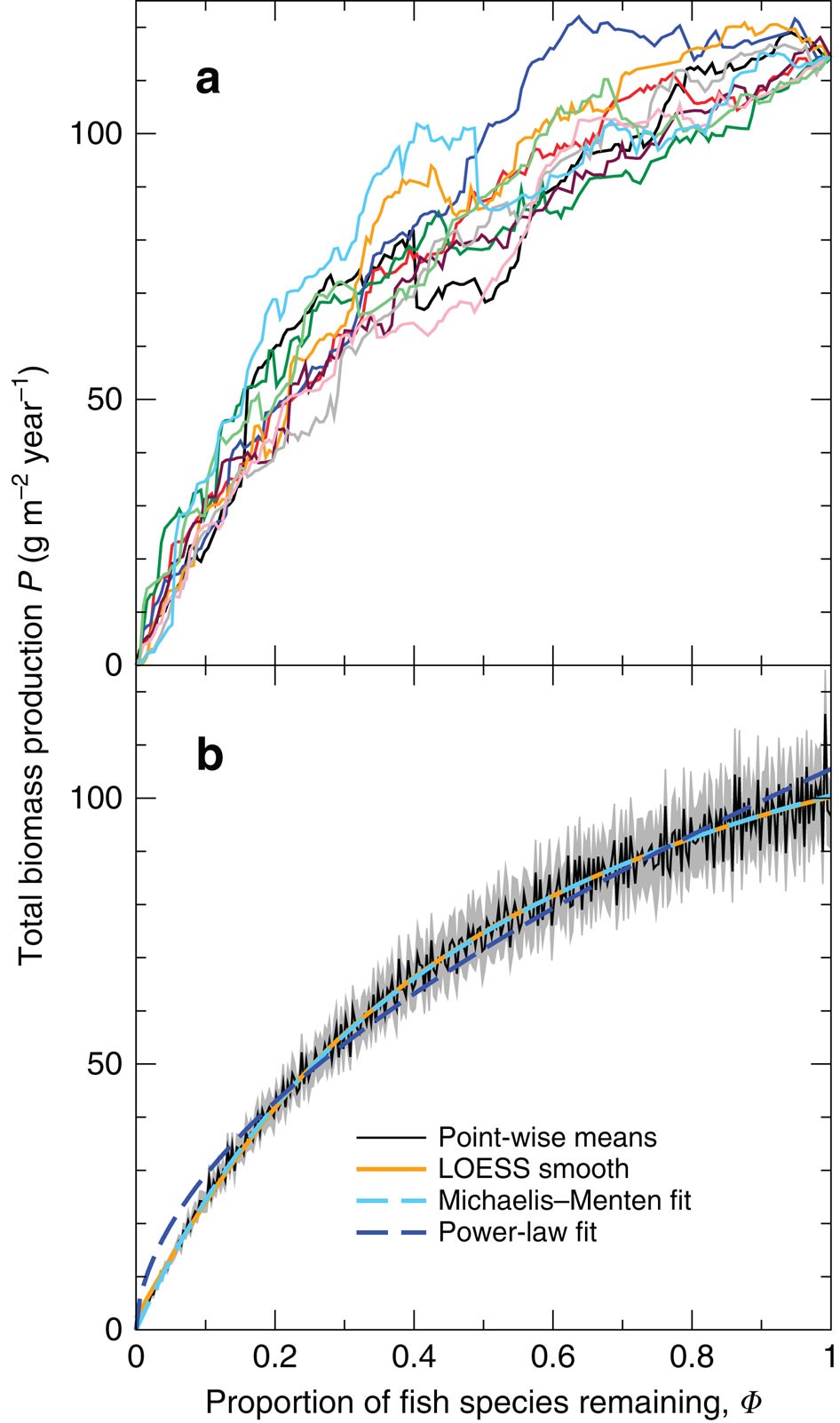

(a) Ten sample random deletion sequences for one model food web; the different colours represent separate sequences. (b) Point-wise means (black), s.e. values (grey), LOESS smooth of the point-wise means (orange) and two fitted curves as indicated in the legend, based on the 200 random deletion sequences for all 20 food webs.
