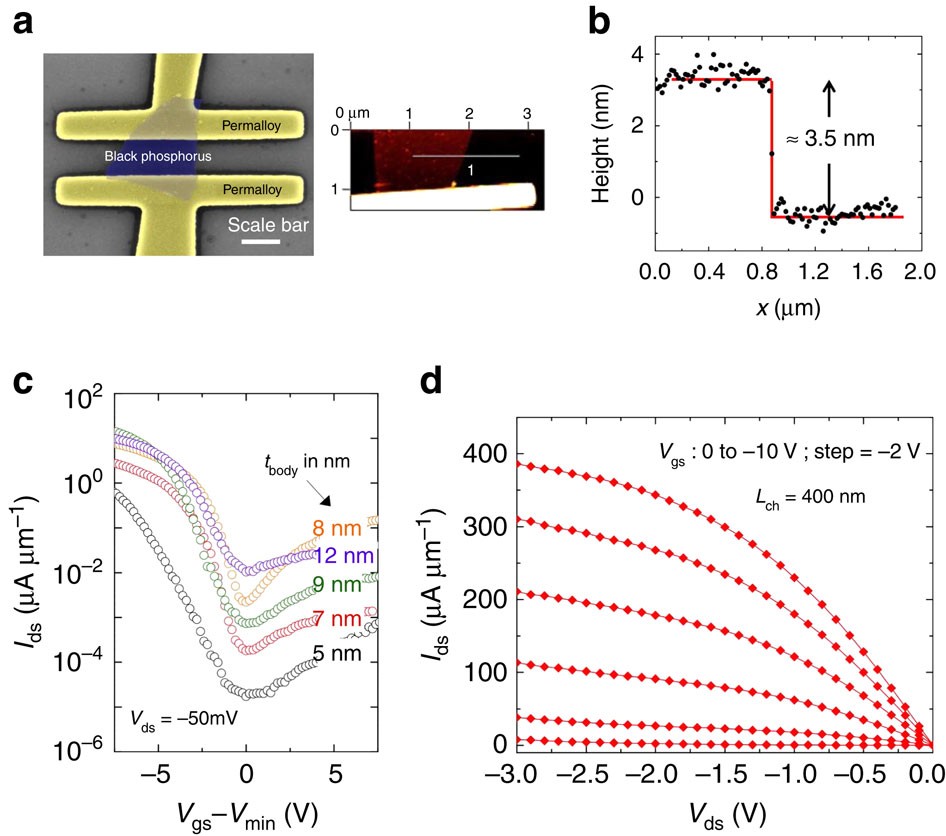

Figure 3: tbody dependence of measured electrical data from BP SB-MOSFET.
From: Analysing black phosphorus transistors using an analytic Schottky barrier MOSFET model
