Nanogel antigenic protein-delivery system for adjuvant-free intranasal vaccines

Nature Materials volume 9, pages 572–578 (2010)Cite this article

Subjects

An Erratum to this article was published on 01 August 2010

This article has been updated

Abstract

Nanotechnology is an innovative method of freely controlling nanometre-sized materials1. Recent outbreaks of mucosal infectious diseases have increased the demands for development of mucosal vaccines because they induce both systemic and mucosal antigen-specific immune responses2. Here we developed an intranasal vaccine-delivery system with a nanometre-sized hydrogel (‘nanogel’) consisting of a cationic type of cholesteryl-group-bearing pullulan (cCHP). A non-toxic subunit fragment of Clostridium botulinum type-A neurotoxin BoHc/A administered intranasally with cCHP nanogel (cCHP–BoHc/A) continuously adhered to the nasal epithelium and was effectively taken up by mucosal dendritic cells after its release from the cCHP nanogel. Vigorous botulinum-neurotoxin-A-neutralizing serum IgG and secretory IgA antibody responses were induced without co-administration of mucosal adjuvant. Importantly, intranasally administered cCHP–BoHc/A did not accumulate in the olfactory bulbs or brain. Moreover, intranasally immunized tetanus toxoid with cCHP nanogel induced strong tetanus-toxoid-specific systemic and mucosal immune responses. These results indicate that cCHP nanogel can be used as a universal protein-based antigen-delivery vehicle for adjuvant-free intranasal vaccination.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

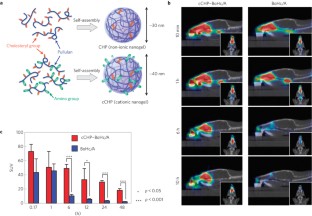

Figure 1: Use of cCHP nanogel as a new antigen-delivery vehicle for intranasal vaccination.

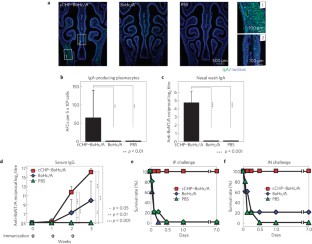

Figure 2: Efficiency of BoHc/A with cCHP nanogel.

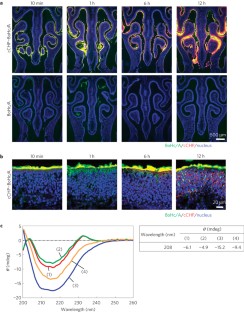

Figure 3: Chaperone-like activity of cCHP nanogel facilitates effective delivery of vaccine antigen into the nasal mucosa.

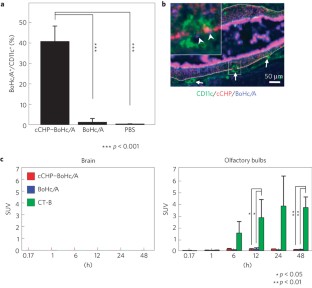

Figure 4: Antigen delivered to dendritic cells by cCHP nanogel stimulates the nasal immune system but does not accumulate in the CNS.
